Canare BCP-A4 75 Ohm BNC Crimp Plug for LV-61S
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

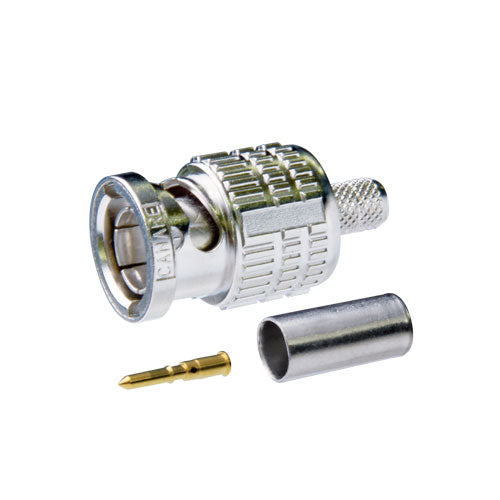

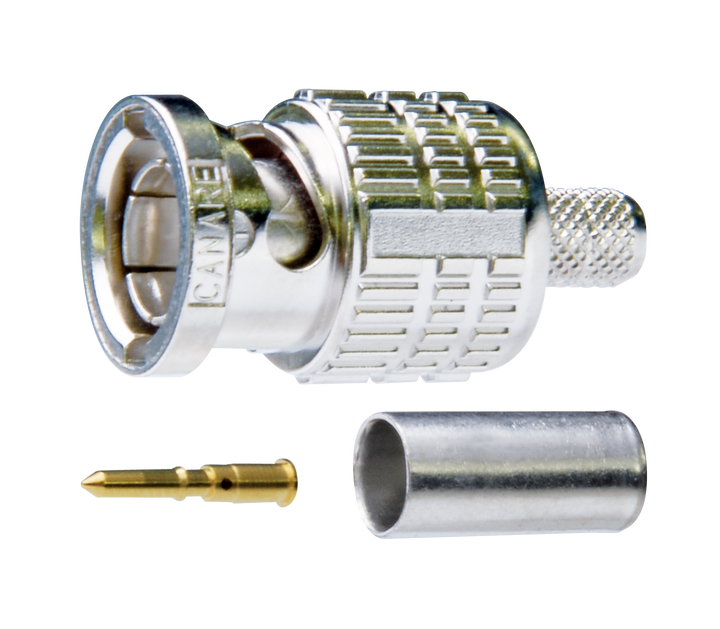

The Canare BCP-A4 is a 75 ohm BNC crimp plug from the BCP-A series, made for Canare LV-61S video coaxial cable. It also fits Belden 8241 and 8279 and other RG-59B/U types. The A series is the standard Canare BNC for analog video, SD-SDI and HD-SDI work, and it shares the crimp system, tools and boots used across the whole Canare BNC range.
The gold plated center pin snaps into the insulator so it stays put while you crimp the sleeve, and the die-cast body is elongated so it is easy to grip and remove from a busy patch panel. A position mark on the body shows whether the plug is locked. Strip with a Canare stripper, crimp with a Canare TC-1 tool and the matching die, and the connector is finished.
Features
- True 75 ohm construction with crimp pin and sleeve
- Sized for Canare LV-61S coaxial cable
- Gold plated snap-lock center pin
- Die-cast elongated body with position mark
- Superior cable pull strength
- Easy assembly with Canare strip and crimp tools
Works With
- Replacement center pin: B11015E, sleeve: BN7015A
- Matching strain relief boot: CB04
- Crimp die set: TCD-4CA
