Canare BCJ-BPLHA 75 Ohm Right Angle PCB Mount BNC Receptacle

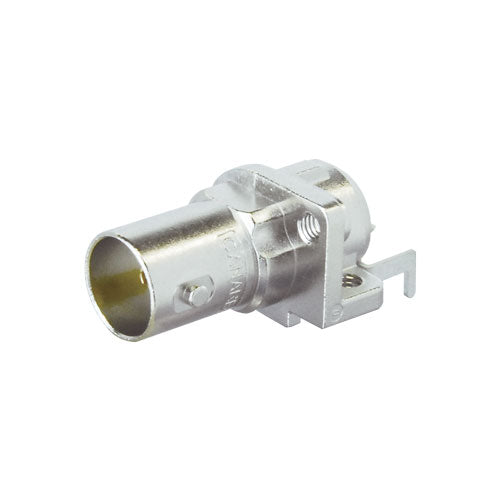

The Canare BCJ-BPLHA is a true 75 ohm BNC receptacle for printed circuit boards. It is the right angle version with a horizontal stud, so the jack sits flat against the board and exits through the front panel, where it is fixed with an M2.6 screw (screws are not included). Mounting the connector to the board this way removes the internal wiring that a chassis jack would need, and it also holds the part steady during soldering.

The center contact is gold plated beryllium copper for spring life and low contact resistance, and the insulation is m-PPO, so no cleaning solvents should be used on the connector. Right angle receptacles sit on a 16 mm pitch, which suits dense rear panels on routers, distribution amplifiers and converters.

Features

• True 75 ohm PC board mount BNC receptacle
• Right angle, horizontal stud, front panel mount with M2.6 screw
• Gold plated beryllium copper center contact
• Return loss 26 dB at 1.5 GHz and 20 dB at 3 GHz
• Compact 16 mm pitch for high density mounting
• Eliminates wiring material and cost inside the chassis

Notes

• Insulation material is m-PPO (m-PPE); do not use cleaning solvents
• For 12G-SDI, see the BCJ-BPLHK version
