Blackstar Dept. 10 Dual Drive Valve Pedal
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

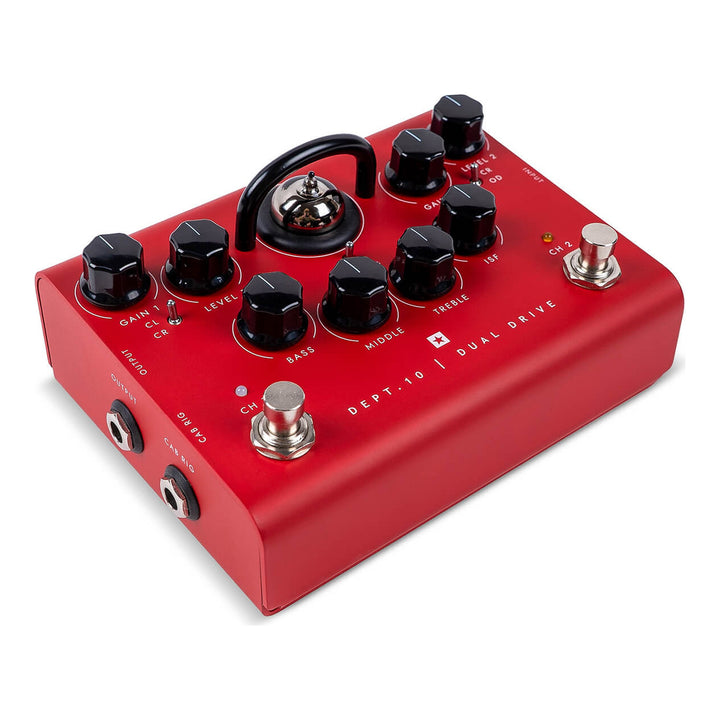

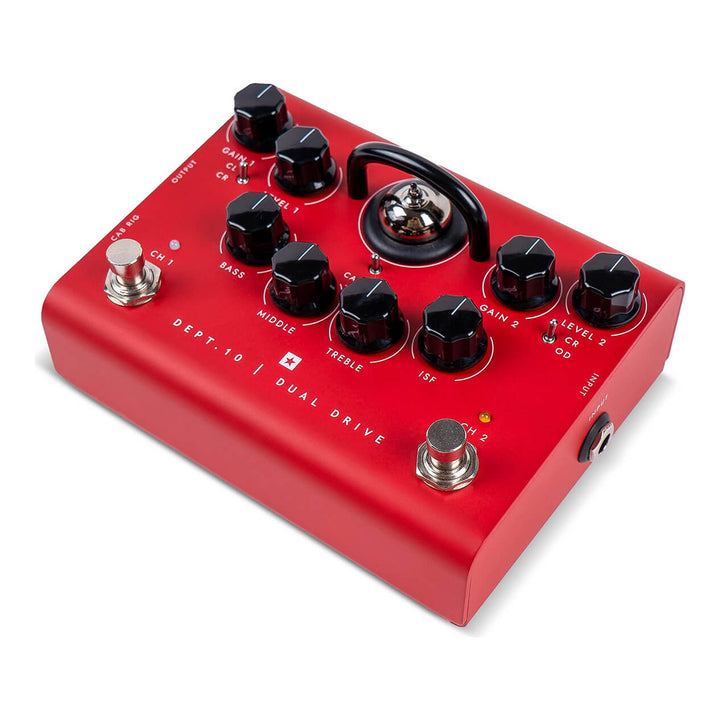

The Blackstar Dept. 10 Dual Drive is a two-channel valve overdrive pedal and recording preamp built around an ECC83 valve that runs at 250 V. Channel 1 switches between Clean and Crunch, Channel 2 between Crunch and Overdrive, and together they can turn a single-channel amp into a three-channel rig. Cab Rig speaker simulation with XLR, USB and headphone outputs means it also works as a direct recording preamp or a backup amp.
Tone Shaping
Each channel has its own Gain and Level. Channel 1 runs from clean through crunch and works as a clean boost with the level high and the gain low. Channel 2 goes from a dynamic light crunch to an overdrive with more gain, saturation and a slight lift in presence. Both channels share Bass, Middle and Treble along with Blackstar's patented ISF control, which moves the voicing from a tight American character to a woodier British one. A built-in buffer/line driver keeps the signal strong over long cables and large pedalboards.
Cab Rig and Connectivity
Cab Rig simulates a miked guitar cabinet, with three presets on a switch and deep editing in Blackstar's free Architect software. The simulated sound goes out the balanced XLR, the USB audio output for recording, and a stereo 1/4" Cab Rig output that also drives headphones for silent practice. An effects loop keeps reverb, delay and modulation pedals clean.
Features
- ECC83 / 12AX7 valve running at 250 V
- Two channels: Clean/Crunch and Crunch/Overdrive
- Patented ISF tone control with Bass, Middle and Treble
- Cab Rig speaker simulator with 3 presets, editable in Architect
- XLR line/DI output and USB audio output for recording
- Stereo 1/4" Cab Rig output with headphone driver
- Effects loop
- Built-in buffer/line driver
- 9V DC power with adapter included
Specifications
- Valve: 1 x ECC83 / 12AX7
- Channels: 2 (Channel 1 Clean/Crunch, Channel 2 Crunch/Overdrive)

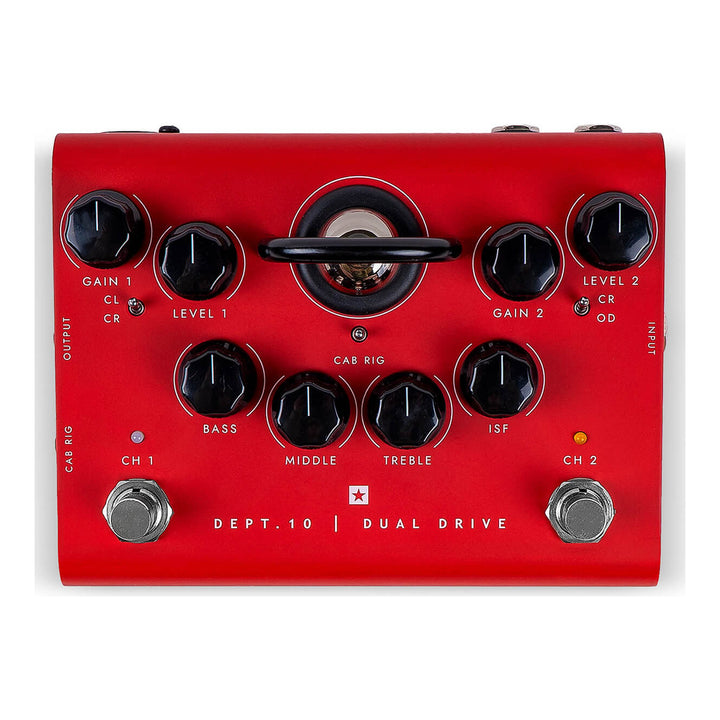

- Controls: Gain 1, Level 1, Gain 2, Level 2, Bass, Middle, Treble, ISF, Cab Rig selector, 2 footswitches
- Inputs: 1/4" instrument input, effects loop return

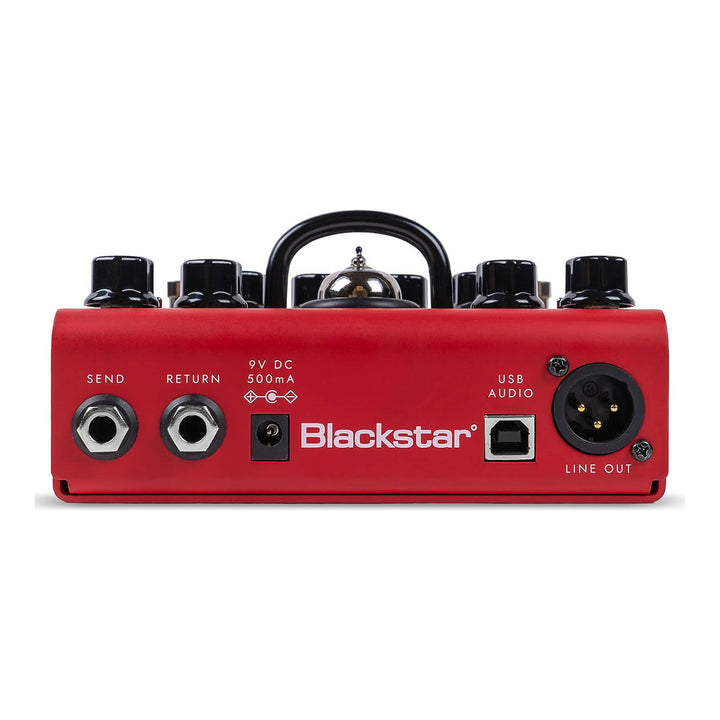

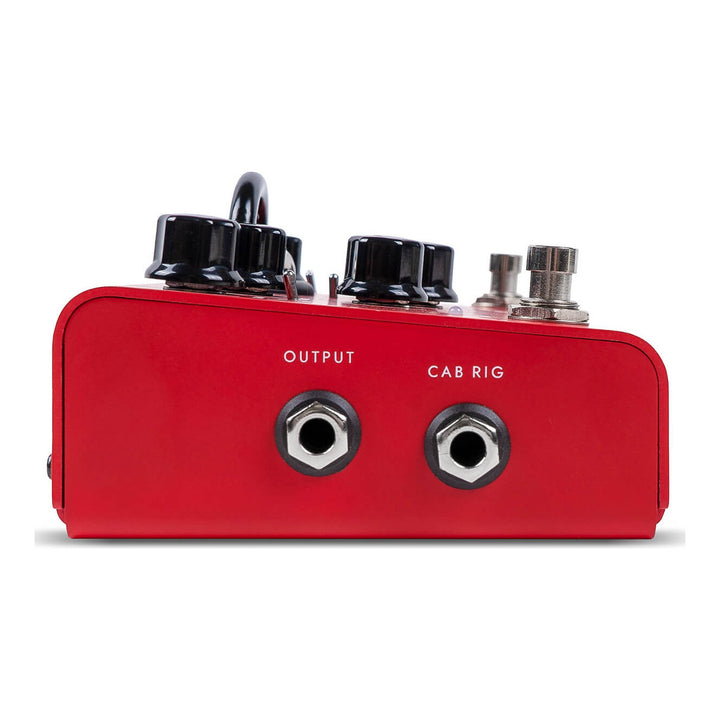

- Outputs: 1/4" output, 1/4" stereo Cab Rig/headphone, XLR line/DI, USB audio, effects loop send
- Input impedance: 1 Mohm
- Output impedance: Under 1 kohm
- Power: 9V DC, 500 mA maximum, tip negative
- Dimensions (W x H x D): 157 x 76 x 117 mm (6.2 x 3.0 x 4.6 in)
- Weight: 0.63 kg (1.39 lbs)
In the Box
- Blackstar Dept. 10 Dual Drive
- PSU-500 9V DC power adapter
