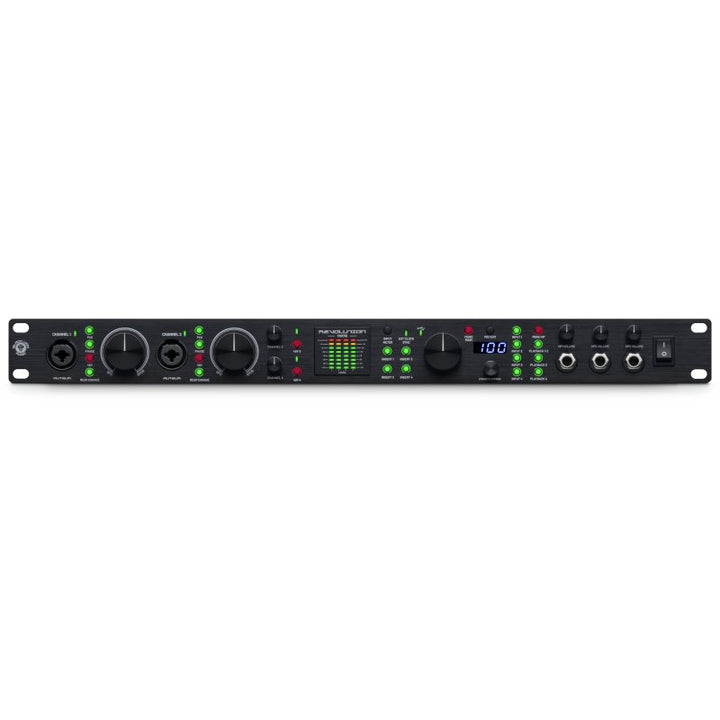

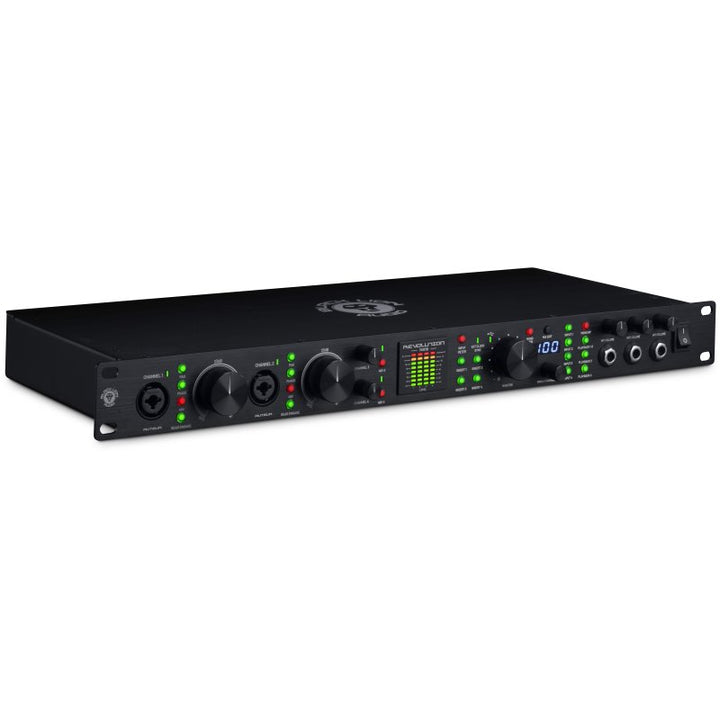

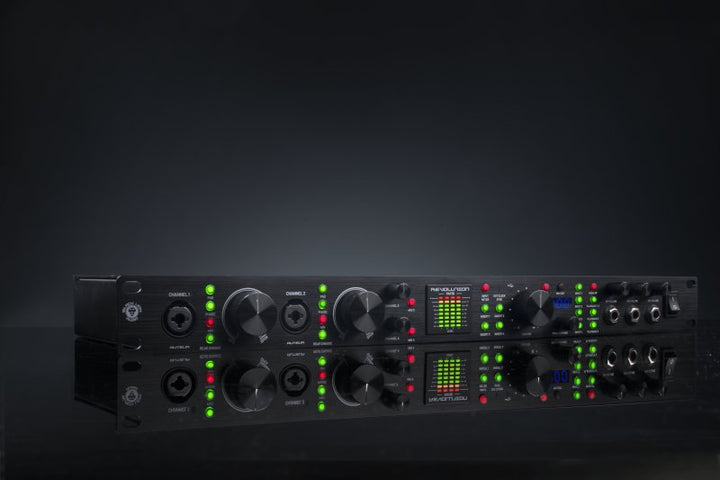

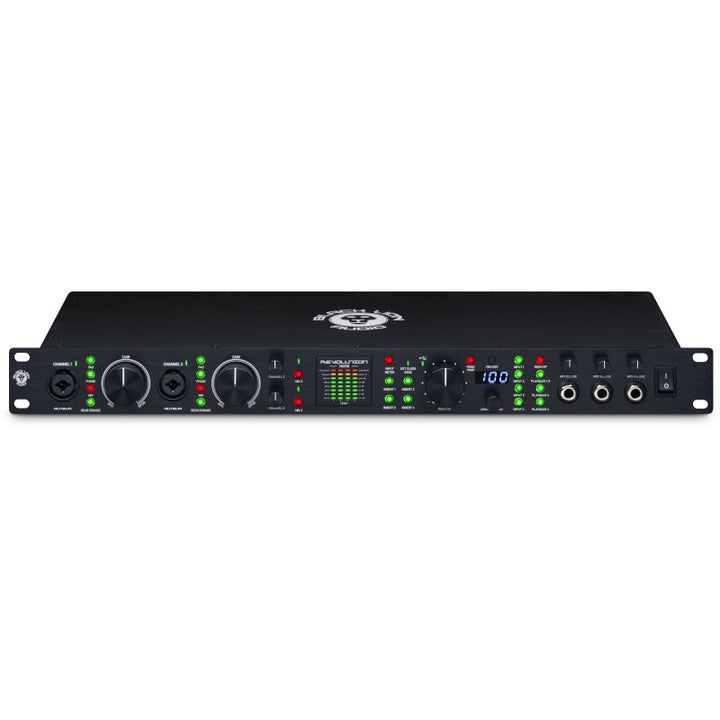

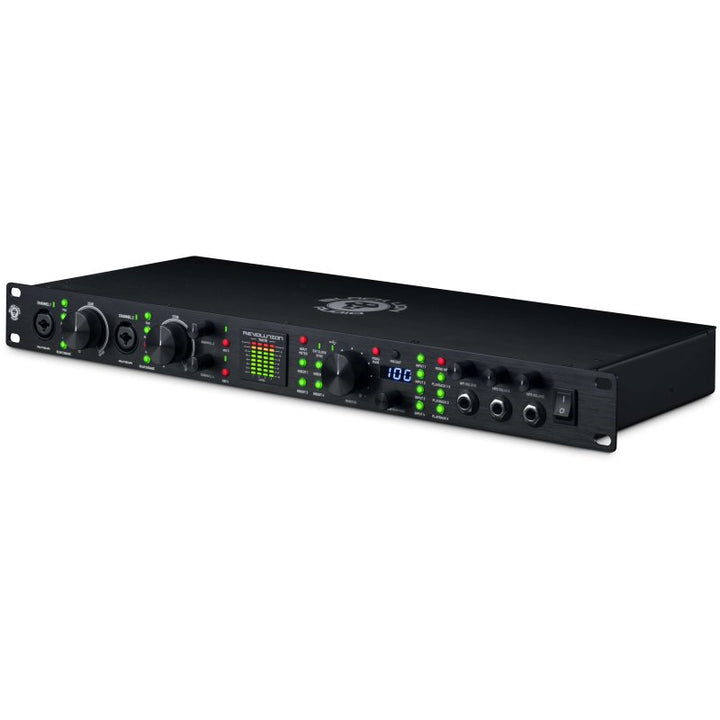

Black Lion Audio Revolution 14×16 USB-C Audio Interface
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Black Lion Audio Revolution 14×16 is a 1U class-compliant USB-C interface with Macro-MMC clocking, ADAT expansion, Mix Edit headphone mixing across three headphone amps, and two channels of Auteur (Cinemag) mic preamps on channels 1,2 alongside two additional Revolution preamps.

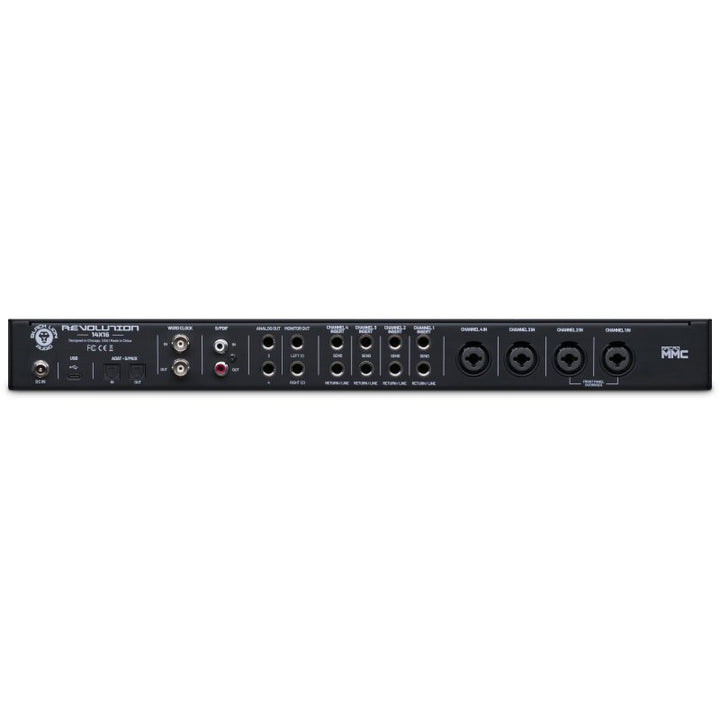

Connectivity and monitoring
- 14-in / 16-out with ADAT expansion (8×8 ADAT recommended via Revolution EXP)
- Four mic/instrument preamps; channels 1,2 accessible from front or rear
- Four switchable insert/returns (returns also as line inputs); standalone preamp use without a computer
- S/PDIF digital I/O; BNC word clock in/out
- Three headphone outputs with Mix Edit low-latency mixes; mono-summable mains and headphones
Specifications
- Form factor: 1U rackmount
- Host: USB-C, class-compliant (Mac); Windows driver available
- Clocking: Patented Macro-MMC
- Preamps: Auteur (ch 1,2, transformer-coupled) + Revolution (ch 3,4)

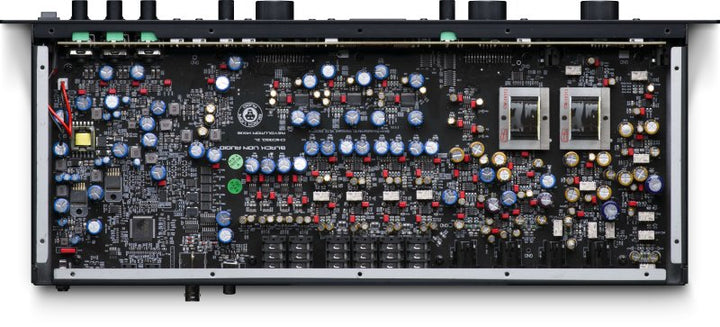

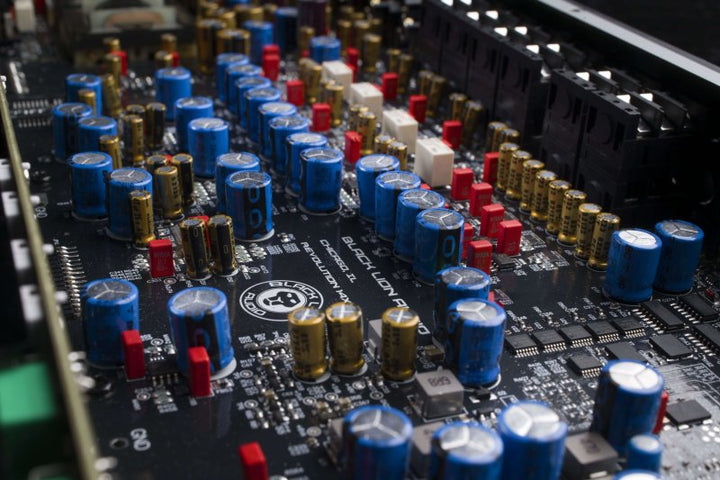

- Power filtering: PG-i filtered rails; full-circuit decoupling
In the Box
- Revolution 14×16
- 12 V DC power supply
- USB cable as included
- Software bundle as advertised
