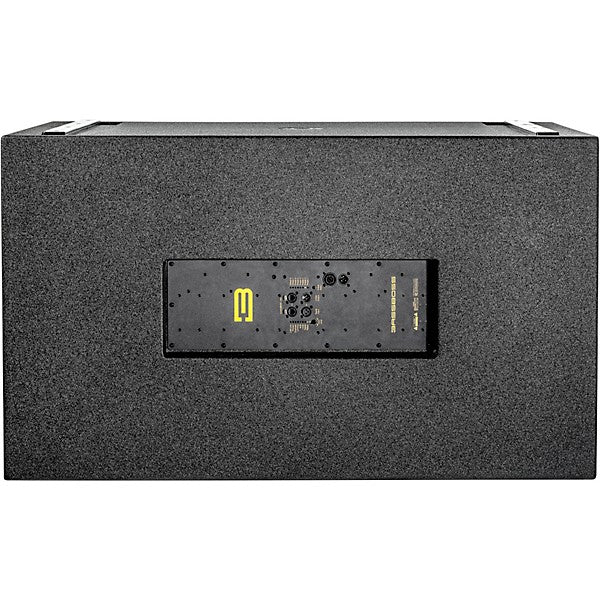

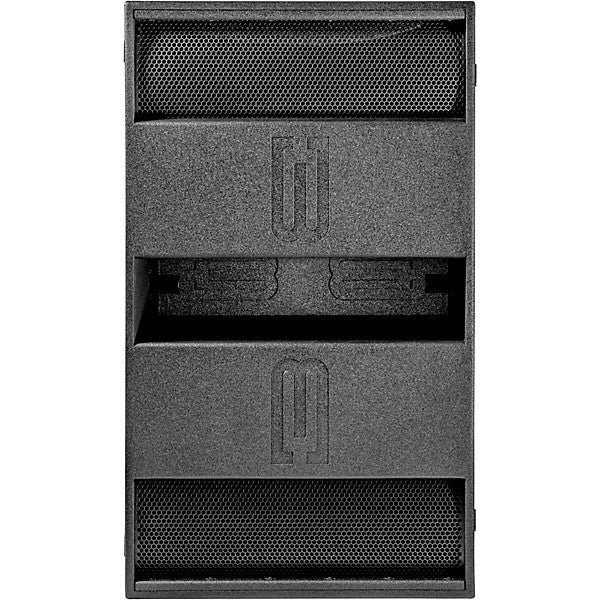

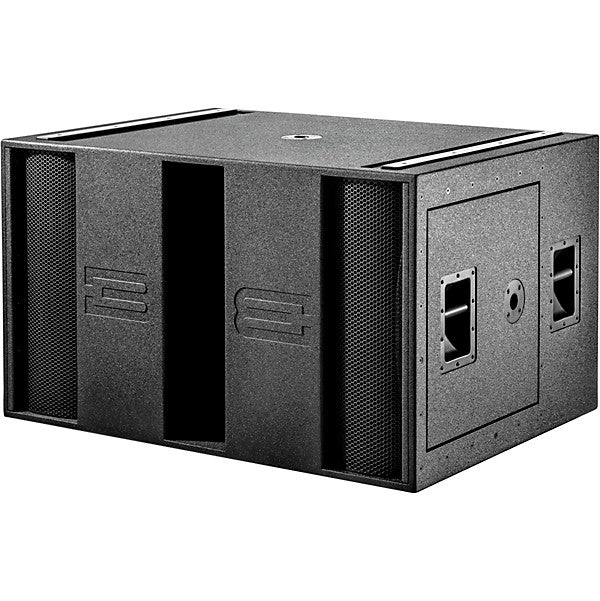

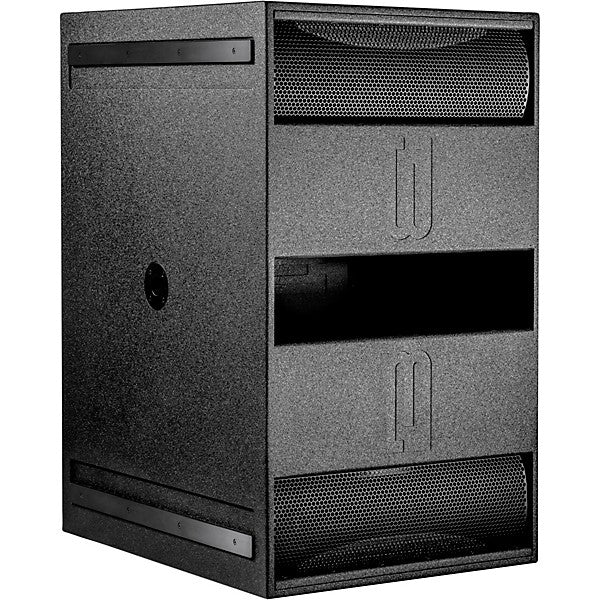

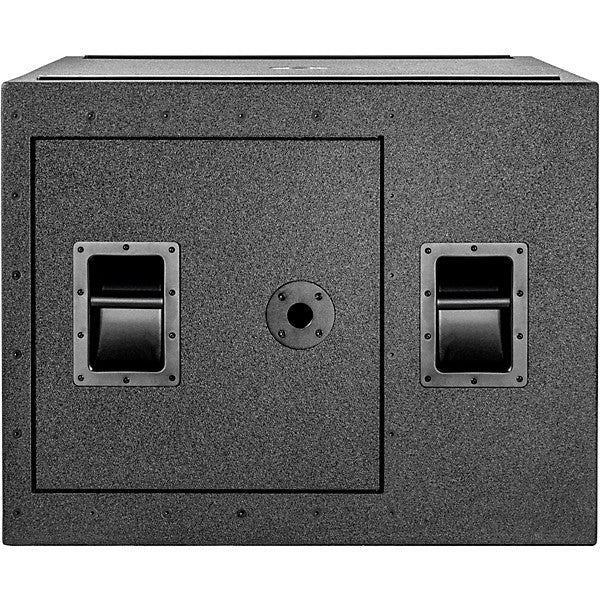

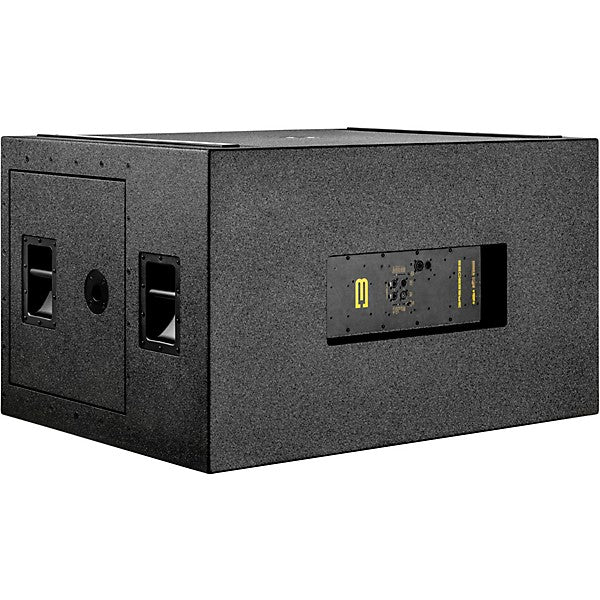

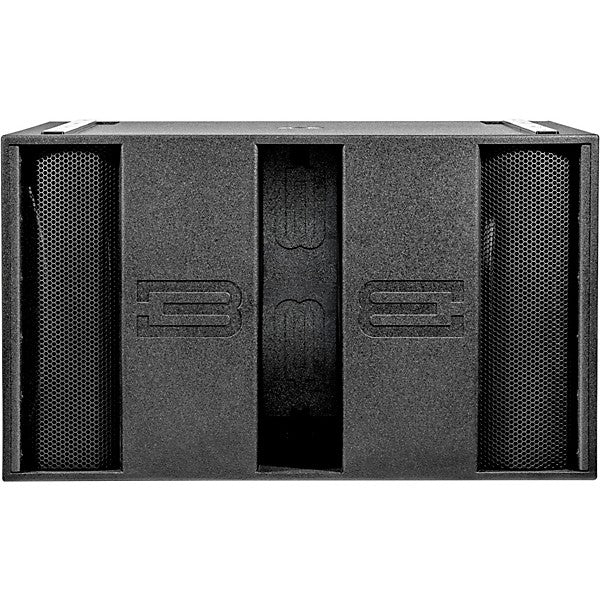

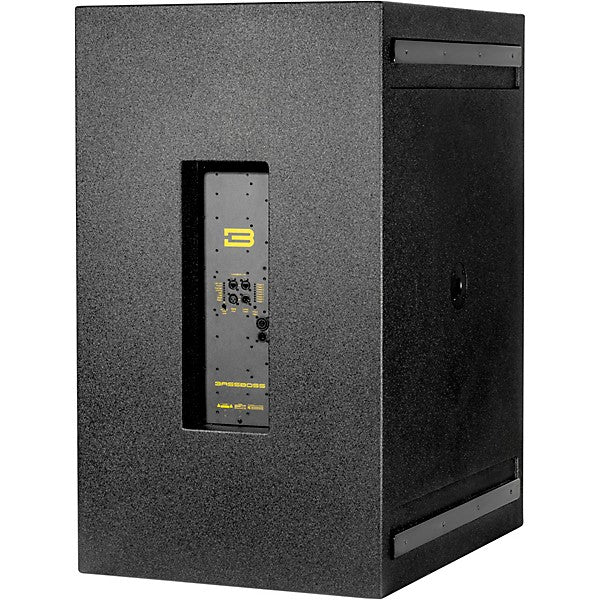

MAKARA-DBL21-MK3

<> Dual-21 inch Active Subwoofer

<> Frequency response, Lower limit: 23Hz (-3 dB)

<> Frequency response, Upper limits: 70-110Hz (-3 dB), preset dependent

<> Max sustained output: 145dB SPL at 1 meter in a half-space (ground plane)

<> Peak SPL: 148dB

<> Drivers: Two 21” transducers - 4.5” CCAW voice coils and Neodymium motors

<> Amplifiers: Dual Discrete Class D amplifiers, capable of delivering peak output voltage up to 160V and peak current output up to 40A with an upper limit of 2500 Watts power to each voice coil/driver.

<> Integrated comprehensive DSP provides high-pass, low-pass, equalization, phase alignment, cardioid processing, and limiting for precise sound management.

o Cardioid mode is available when using multiple units for targeted sound control.

<> I/O:

<> Waterproof (IP65 rated) Neutrik powerCON True 1 TOP connector provides power input connection, fed from a standard US 3-pin 120V electrical plug. (NEMA 5-15)

<> XLR-F signal input connectors & XLR-M pass-through only signal output connectors,

<> 2 EtherCON RJ45 data connectors.

<> Enclosure:

<> 18mm Marine Grade irch plywood with extensive bracing and dado joints.

<> Equipped with eight steel bar handles and UHMWPE strips as feet.

<> 35mm pole sockets are provided on all 4 sides.

<> Weight: 265 lbs. (Estimated)

<> Dims: 48” x 28” x 36”

<> Finish: Weatherproof, black textured, bonded, high-pressure polyurea coating.
