Avantone Pro Active MixCube Powered Reference Monitor (Red)

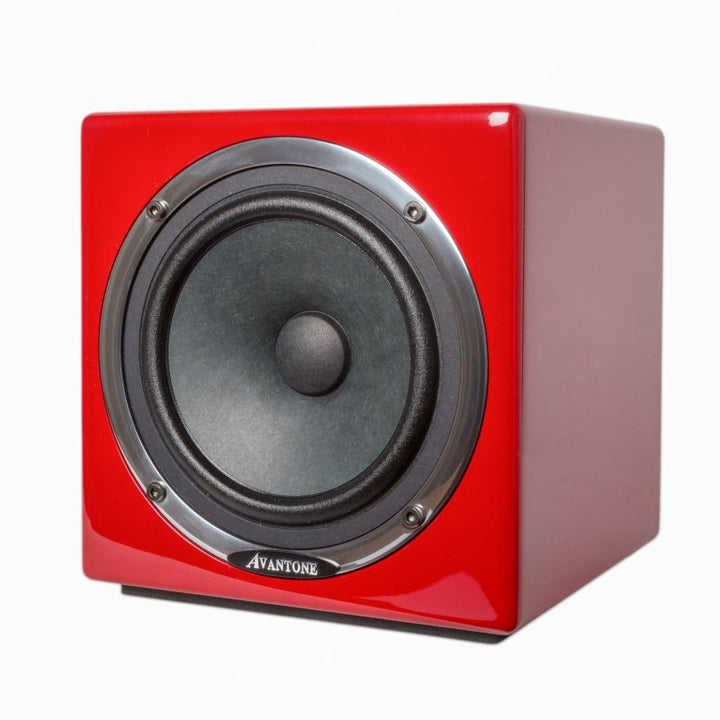

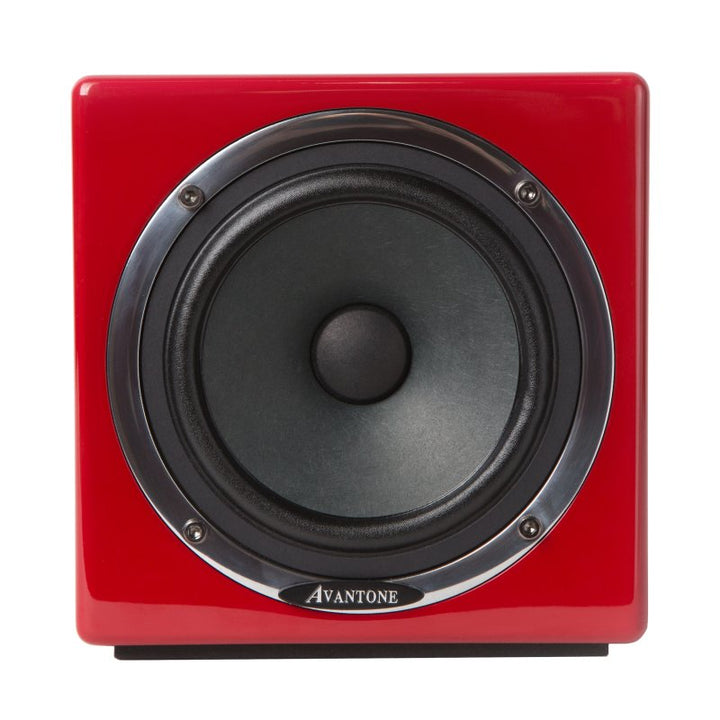

The Avantone Pro Active MixCube is a shielded, full-range powered reference monitor built around a single 5.25" paper-cone driver in a sealed 165 mm (6.5") MDF cube with radiused edges. Originally inspired by the classic 5C sound cubes, it is used as a secondary check for how mixes translate on phones, laptops, televisions, car stereos, and other bass-limited systems. This listing is the Red single.

Crossover-Free Midrange

Because there is no crossover in the musical midrange, balance decisions on vocals, guitars, and keyboards are easier to trust before you leave the nearfields. The sealed cabinet and Class A/B amplifier keep the response focused for short, critical listening passes.

Studio Placement and Power

• Recessed 5/8"-27 thread mounts each cube on a mic stand or desktop boom
• 7 mm thick neoprene pad embedded in the base acts as a skid-resistant acoustic isolator
• XLR/TRS combo input accepts +4 dBu balanced or -10 dBV unbalanced feeds

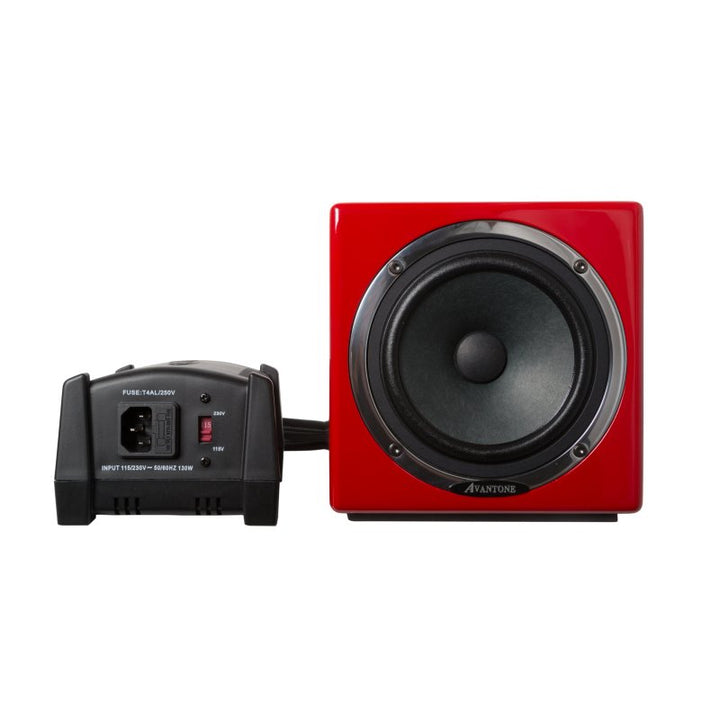

• External 30 VDC power supply with locking 6-pin connector keeps mains noise away from the amp electronics

Specifications

• System: Active (self-powered) full-range monitor
• Driver: 5.25" / 165 mm shielded paper cone, cast aluminum frame
• Amplifier: Class A/B, 60 W RMS
• Frequency response: 90 Hz - 17 kHz
• Impedance: 8 Ω nominal
• Max SPL: 104 dB @ 1 m (1% THD, pink noise)
• Inputs: XLR / TRS combo (+4 dBu balanced / -10 dBV unbalanced)
• Cabinet: Sealed 18 mm MDF cube with radiused edges and acoustic stuffing
• Isolation: 7 mm embedded neoprene base pad
• Mounting: Recessed 5/8"-27 mic-stand thread
• Power: External 30 VDC supply with locking 6-pin connector
• Dimensions (each): 165 x 165 x 165 mm (6.5" x 6.5" x 6.5")
• Weight (each): 3.23 kg (7.13 lb)
• Finish: Red
• Configuration: single

In the Box

• Active MixCube monitor
• External power supply with DC cable
• AC mains lead
• Quick-start documentation
