Description

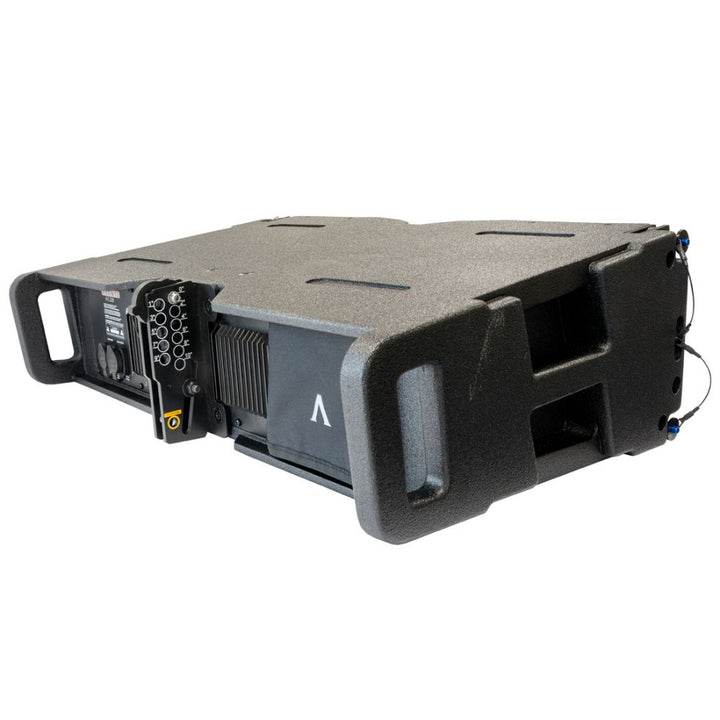

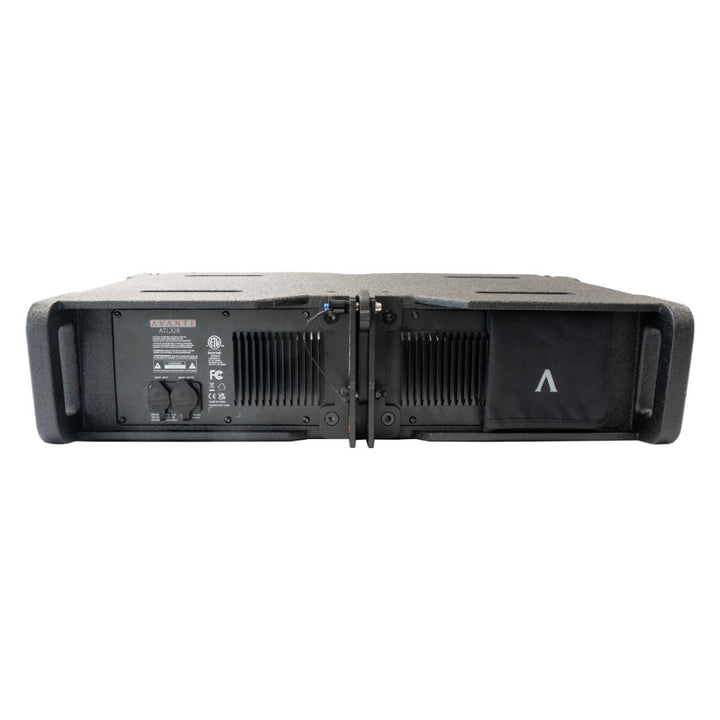

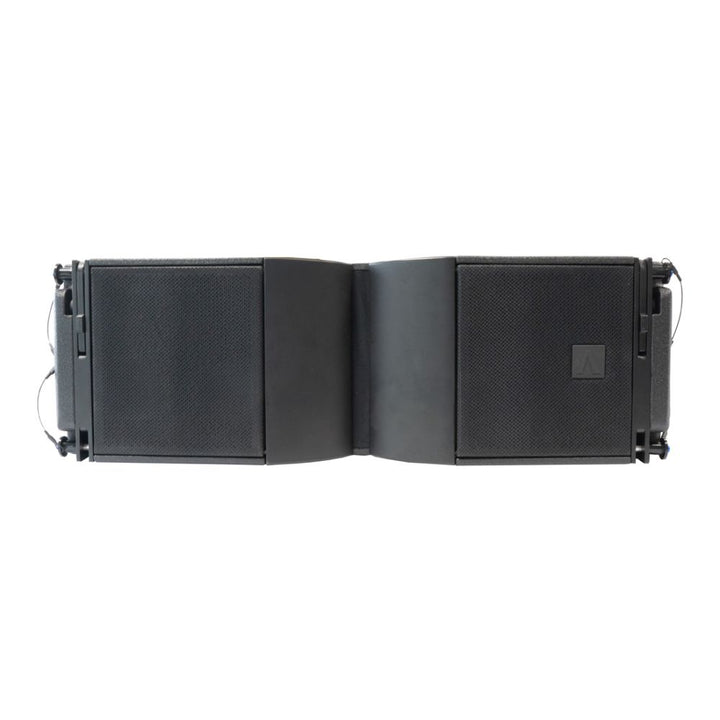

The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.
Specifications
TECHNICAL DATA
- Speaker Type: 3-Way Active, 2x8" Line Array Module, Milan certified
ACOUSTICAL DATA
- Frequency Response: 70 - 20,000 Hz
- Max SPL One Unit: 127 dB
- MF/HF: Coaxial 4" (MF) + 2.55" (HF) - Neodymium on custom waveguide
- LF: 2 x 8” (2.5” voicecoil) - Neodymium
- Crossover frequencies: 600 Hz/3.5 kHz
- Horizontal Directivity: 110°
- Vertical Directivity: Depends on array size and configuration
AMPLIFIER:
- Channels: 3 channels, 1 LF, 1 MF, 1 HF
- Power: 600-Watt RMS / 1200-Watt Program / 1800-Watt Peak
- Cooling: Convection, Internal fan
- Power Supply: Auto switching 100V-240V, 50-60Hz
- Protection: Thermal, DC Offset, Output Short
PROCESSOR:
- DSP: 64-bit multimode with Milan
- Sample Rate: 96 kHz
- Limiter: Multi-band compressor, Peak Limiter
- Processing (filters): FIR Linear Phase and 10-band IIR
INPUT:
- Signal In/Out (analog): 3-pin XLR
- Power Socket: IP65 Locking Power In/Out
- Network: Locking RJ45 In/Out for control and Milan
- Controls: 1 x Input Attenuation (-15dB - +6dB); 1 x LF Coupling (8 presets); 1 x HF Compensation (8 presets); 1 x System Test and Reset Button
- Special Features: Frontal LED Identification System / Inclinometer
CONSTRUCTION:
- Housing: Multiplex plywood - Polyurea painting
- Housing Design: Trapezoidal
- Handles: 4 x handles (1 on each side, 2 on back)
- Rain Cover: Included, fixed
- Rigging Points: 3 points rigging hardware
- Dimensions (LxWXH): 30" x 18.3" x 9" / 760 x 465 x 230 mm
- Weight: 64 lbs. / 28.6 kg.
