Avante Audio AS8 Column Array Powered Speaker System

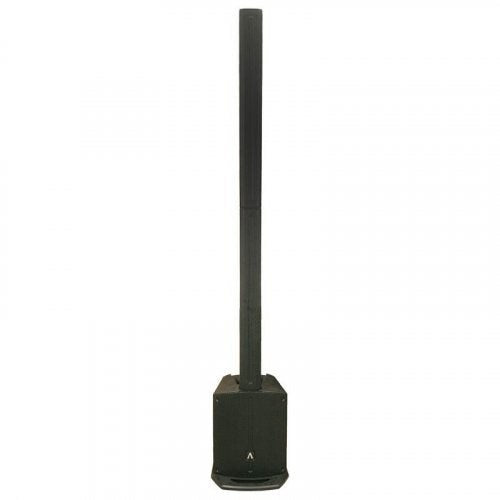

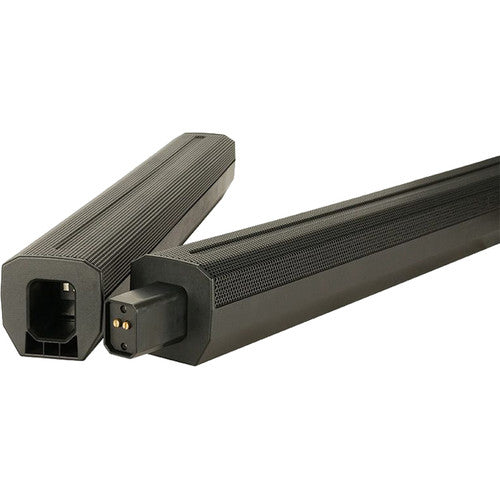

The fully-featured and easy to setup Achromic AS8 system comprises an active 8-inch subwoofer enclosure alongside two column units. One is loaded with six precision-aligned 2.75” speaker cones while the other serves as a spacer to lift the speaker column up to optimal height. Both feature Avante’s new SAM (Secure Array Mount) system which allows the columns to lock securely to the sub and to one another without risk of being toppled over. The SAM connection also passes the audio signal from the sub up to the columns, removing the need for speaker cables, and allows the main column to connect directly to the sub without using the spacer if required, ideal for performances from a high stage.

Featuring a Class D power amplifier with built-in limiter that delivers 800W of power, the sub unit also integrates a flexible three-channel mixer with 2-band EQ. This allows direct connection of line-level audio sources as well as microphones and even a guitar, making the system ideal for acoustic solo performers, duos and even small bands. The unit is also equipped with a Bluetooth audio connection that allows wireless streaming of music from a smartphone, tablet or laptop.

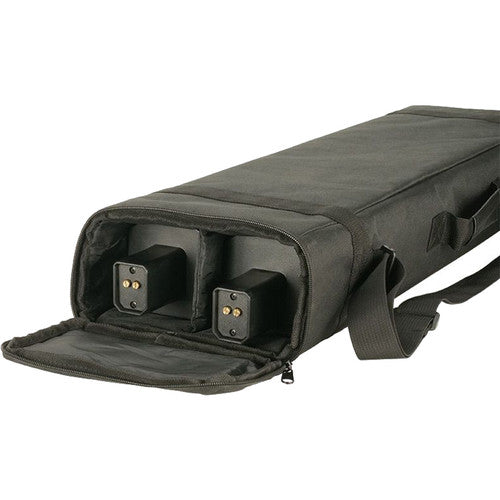

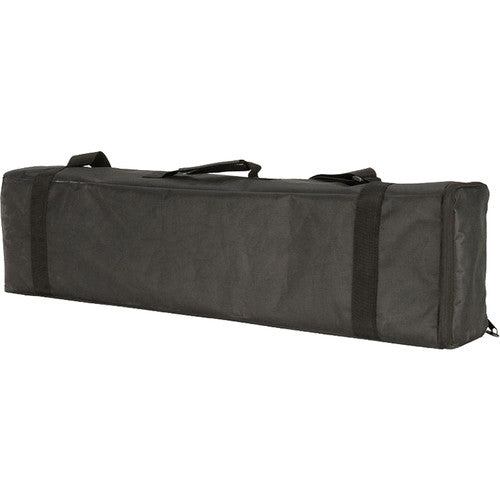

The lightweight system can be easily transported in a small car and is supplied with a padded bag for carrying and protecting the column units. This makes it the perfect system for DJs as well as live musicians playing in small venues such as coffee houses and lounges.

The System includes:

• (1) 8-inch active sub woofer
• (1) column speaker with six 2-75-inch speaker
• (1) spacer
• (1) carry bag for column speakers

AMPLIFIER:

• Inputs: Two XLR/TRS combo jacks, Stereo 1/4” inputs, Stereo 1/8” inputs, Bluetooth
• Outputs: XLR balanced line output
• Power output: RMS 120W(SUB) RMS, 400W peak, +120W(SAT) RMS, 400W peak
• Volume: Input Gain control per channel
• EQ: Main out 2 band EQ
• LEDs: Power/Clip indicator
• Power Input: 100-240V~50/60Hz switchable 250W
• Amplifier: Class D amplifier with switching power design

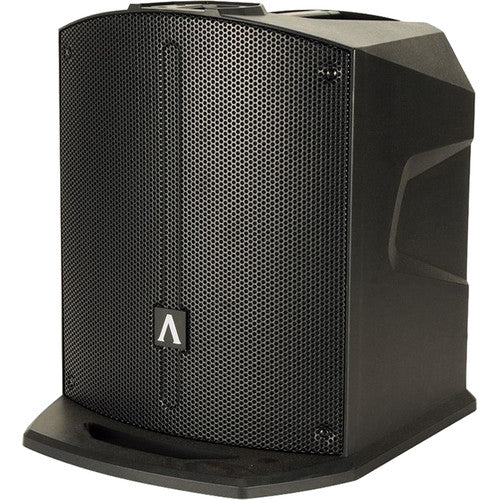

ACTIVE VENTED SUBWOOFER:

• Frequency Response: 55-200Hz
• Max Output SPL: 116dB (at max. amp output)
• Impedance: 4 Ohm
• Driver: 8-inch neodymium subwoofer, 1.5” voice coil, 28 oz. magnet
• Cabinet: PP plastic
• Grill: 1.0mm steel
• Dimensions: 13.8”x16.9”x16.3” / 350x430x413mm
• Weight: 28.6 lbs. / 13 kg.

PASSIVE FULL-RANGE SPEAKER COLUMN:

• Frequency Response: 180-20kHz
• Max. output SPL: 110dB
• Impedance: 4 Ohm
• Driver: 6x 2.75-inch neodymium drivers
• Cabinet: PP plastic
• Grill: 1.0mm steel
• Dimensions: 3.8”x3.8”x34.3” / 96x96x870mm (each column)
• Weight: 11 lbs. / 5 kg. (each column)

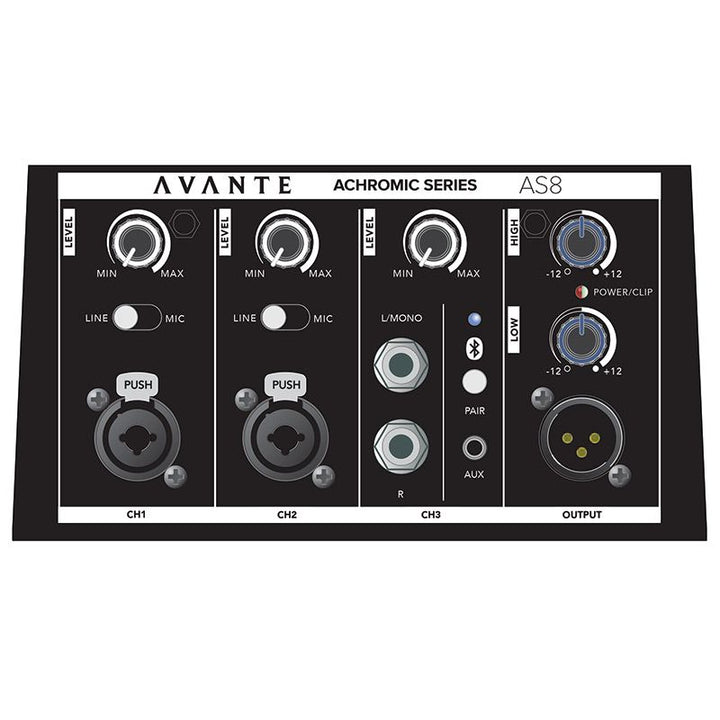

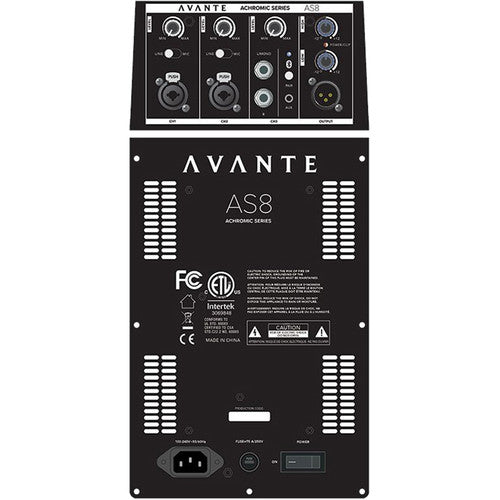

REAR PANEL:

• 4 input mixer with line out
• Mic/Line Input
• Guitar/Line Input
• 1/8” Aux Input
• Line Output
• Dual Band EQ
• Bluetooth Connection

EXTENDED POSITION:

• Dimensions: 13.8”x16.9”x79.1” / 350x430x2010mm
• Weight: 50.6 lbs. / 23 kg.

COMPACT POSITION:

• Dimensions: 13.8”x16.9”x47.6” / 350x430x1210mm
• Weight: 39.6 lbs. / 18 kg.
