Description

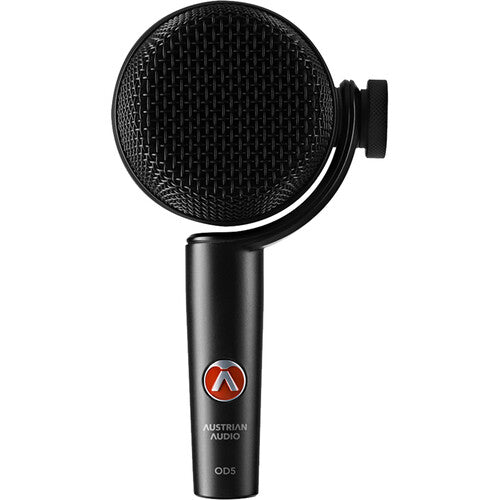

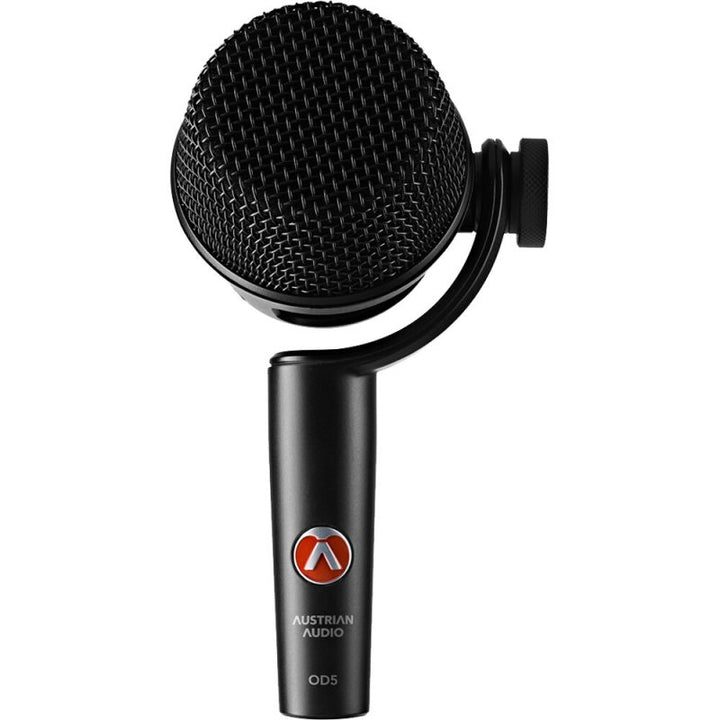

The Austrian Audio OD5 is an active-dynamic cardioid instrument microphone built around the ODC50 capsule. Phantom-powered active circuitry preserves level and noise performance over long cable runs and enables real high-pass filters that passive dynamics cannot offer. The result is a tight, focused tone with headroom for drums, guitar amps, and wind instruments on stage or in the studio.

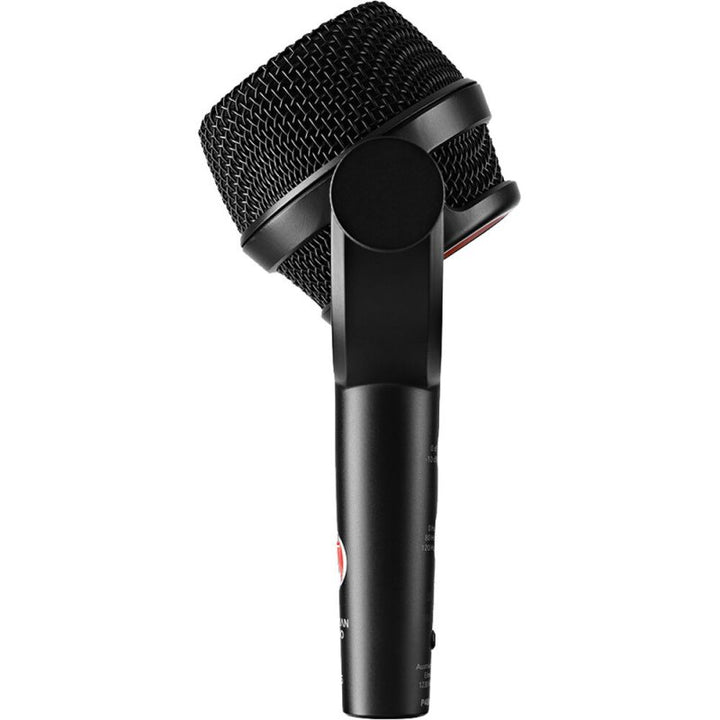

220° Swivel Placement
The basket swivels through 220° so you can lock onto a snare or cab sweet spot quickly without rebuilding the stand every time. A rugged metal enclosure is built for nightly load-ins and loud backlines.
Pad and Filters

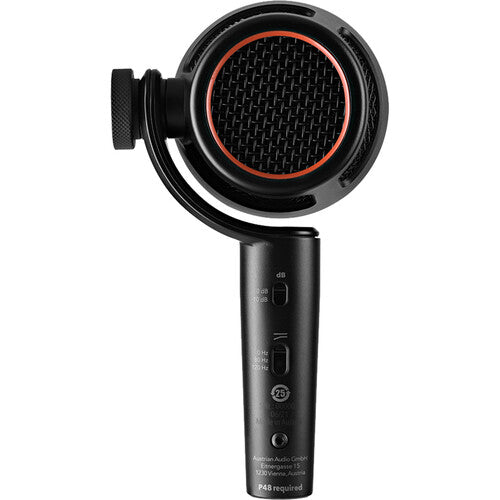

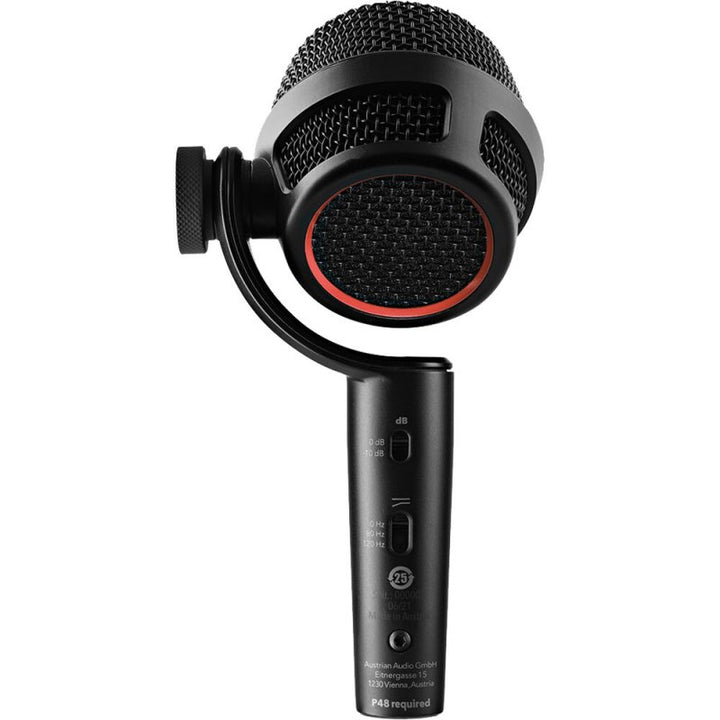

A -10 dB pad pushes max SPL past 160 dB for heavy hitters. 80 Hz and 120 Hz second-order low-cut filters clean up rumble and proximity before the preamp. Pair with the DPH12 rim holder for drum mounts without a separate boom.
Specifications
- Type: Active-dynamic instrument microphone
- Polar pattern: Cardioid
- Frequency range: 20 Hz - 18 kHz
- Sensitivity: 6.7 mV/Pa
- Equivalent noise: 21 dB SPL (A)
- Max SPL: 151 dB (>160 dB with pad)
- Pad: -10 dB
- Low-cut filters: 80 Hz, 120 Hz (2nd order)
- Swivel: 220°
- Impedance: 275 Ω (balanced)
- Power: 48 V phantom (< 1.5 mA)
- Connector: XLR 3-pin
- Dimensions: 147 x 82 x 54 mm (5.8" x 3.2" x 2.1")
- Weight: 265 g (9.3 oz / 0.58 lb)
In the Box
- OD5 microphone
