Tm1 Test Amp Measurement Microphone
Description
FEATURES

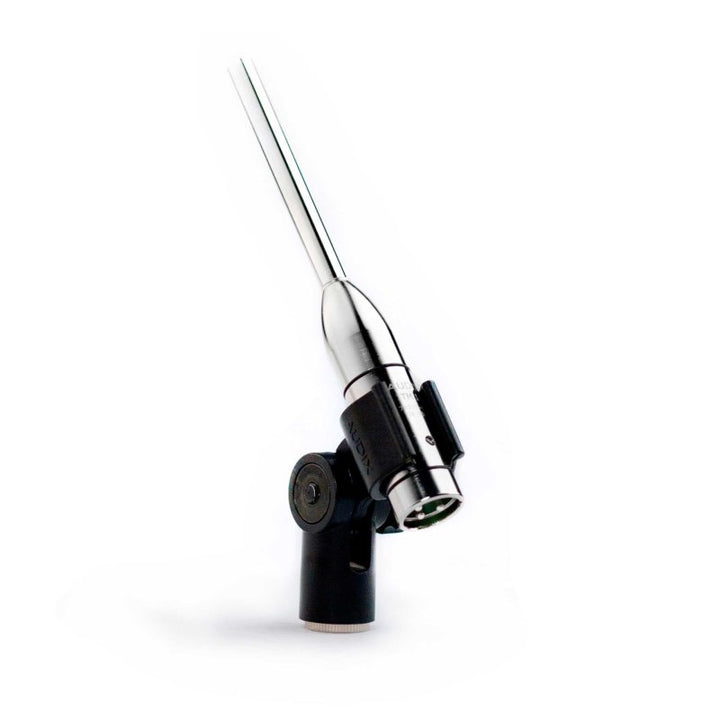

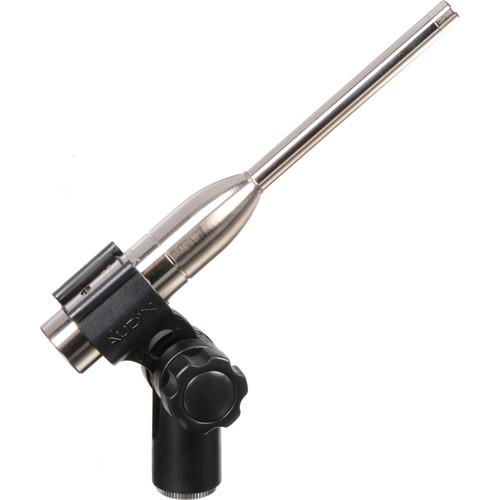

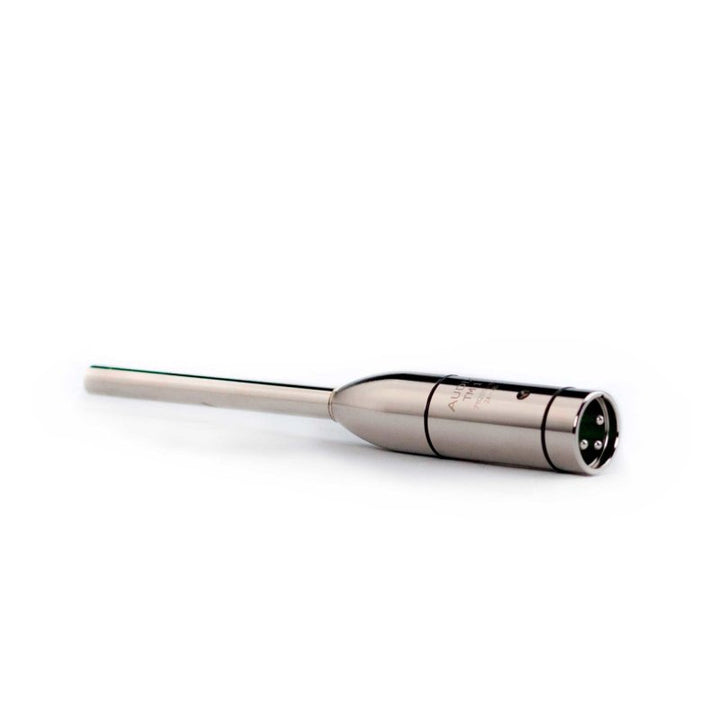

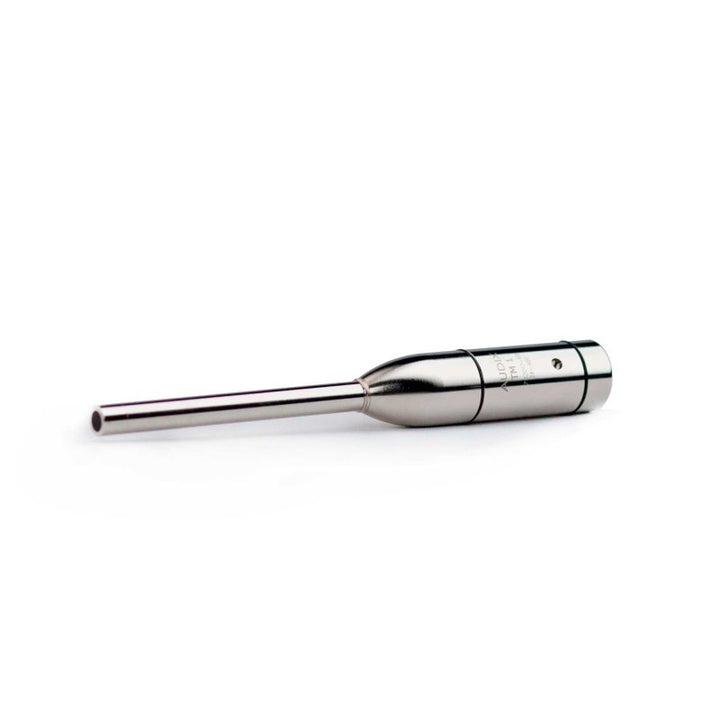

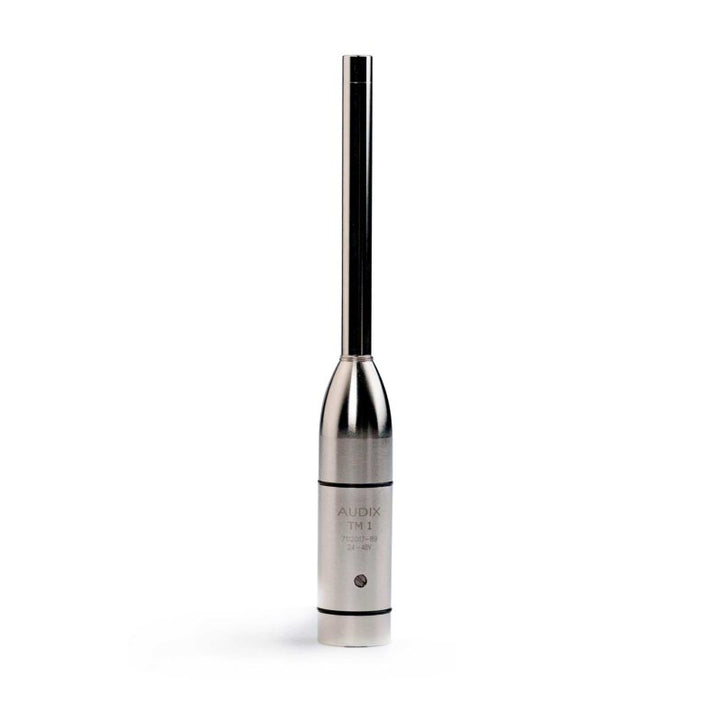

The Audix TM1 Test & Measurement Microphone is an affordable test microphone with a linear frequency response and accurate audio reproduction. The TM1 is an ideal choice for calibrating live rooms, studios, venues and other applications. The TM1 features a uniformly controlled omnidirectional polar pattern, switchcraft XLR output connection and 40 stage brass enclosure.
- 6mm pre-polarized condenser capsule
- Hi SPL response
- Precision machined brass housing
- Low noise electronics
SPECIFICATIONS
- Transducer Pre-polarized Condenser
- Polar Pattern Omnidirectional
- Frequency Response 20Hz to 25kHz (+/- 2dB)
- Dynamic Range (Typical) 112dB
- Signal-to-Noise Ratio 66dB
- EIN 28dB A-weighted
- Maximum Input Sound Level 130dB with distortion < 1% 140dB Max
- Power Requirements 18 - 52V Phantom
- Output Impedance 200 ohms
- Output Connectors 3-pin XLR
- Sensitivity 6.5mV / Pa @ 1k
- Housing 4 Piece Precision Machined Brass
- Dimensions Length 5.9" (150mm)
- Package Weight 0.55 lb
- Box Dimensions (LxWxH) 9.0 x 4.3 x 2.6"
