M3WDK

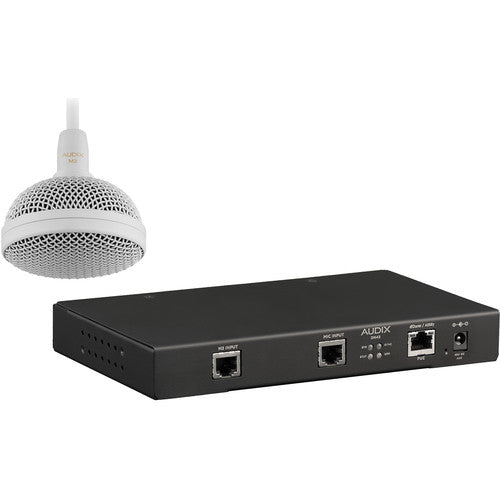

The M3DK is a convenient kit that pairs the Audix M3 hanging ceiling microphone with the Audix DN43 Dante | AES67 microphone interface, providing a simple to install, network-ready way to stream Audix audio performance through Ethernet networks.

The M3 is an innovative, tri-element hanging microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The frequency response and polar pattern of its three phase-coherent hypercardioid capsules are tailored for voice clarity and rejection of extraneous noise.

The Audix DN43 interface features one microphone port engineered exclusively for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. Each channel has selectable, independently controlled pre-amp gain, as well as low- and high-pass filters. It features balanced audio inputs with RFI filtering and delivers high-fidelity 24-bit, 48KHz audio.

M3 FEATURES: 100% RF shielding and immunity, Very high output, low self-noise, Frequency and pattern tailored for voice clarity and rejection of extraneous noise, Evenly dispersed sound with undetectable phase, High-quality silicone jacketed microphone cable with adjustable length and position, Plenum-rated junction box with RJ45 connector, TAA compliant, Easy to install.

DN43 FEATURES: Balanced audio inputs with RFI filtering, High-fidelity 24-bit, 48KHz audio, Each channel has selectable pre-amp gain, as well as low- and high-pass filters, Two 5V logic outputs per port, with source/sink capability, for LEDs, if the mic is so equipped, One logic input per single-element microphone port for buttons 48V phantom power output, Operates on PoE from any IEEE 802.3af compliant equipment, Dante Domain Manager (DDM) ready.
