H60VX5 Uhf Handheld Transmitter With Vx5 Capsule

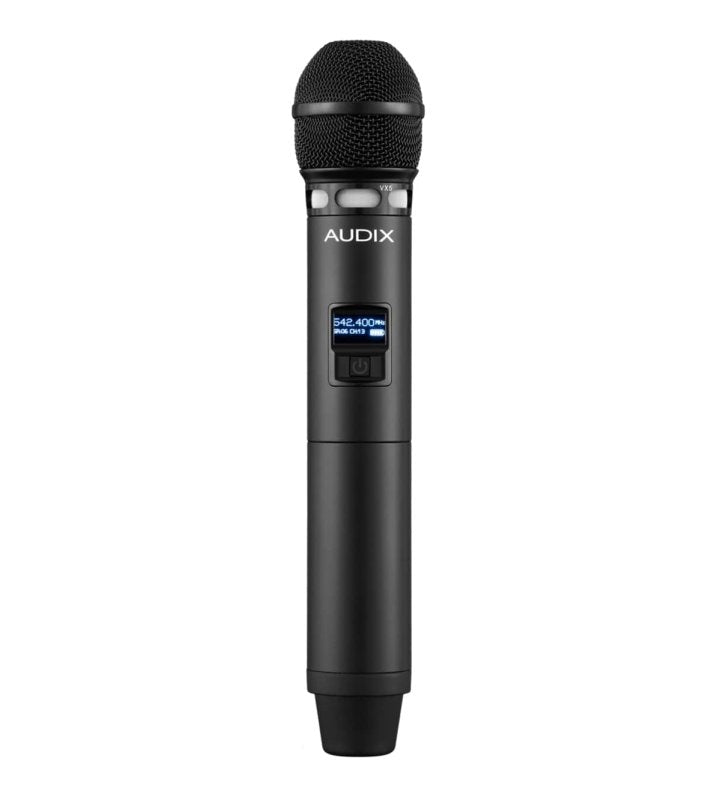

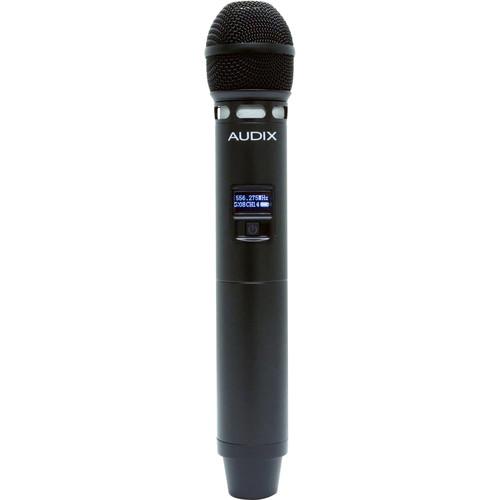

The Audix H60 VX5 is a Performance Series handheld microphone transmitter with VX5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The supercardioid condenser capsule yields enhanced off-axis rejection, a 40 Hz to 16.5 kHz frequency response, and a high maximum SPL of approximately 140 dB.

A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30 mW RF output power. Two supplied AA batteries power the H60 VX5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.

64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups

High-contrast LCD shows group, channel, frequency, and battery status

Durable tour-worthy metal housing

Modular capsule design allows easy swapping between condenser and dynamic capsules (available separately)

Convenient soft mute button for quick on/off switching

Two supplied AA batteries provide up to 14 hours of run time

Selectable 10/30mW RF power output

Three selectable gain settings—0 dB, -6 dB, and -12 dB

Dent-resistant steel mesh grille

Includes mic clip and pouch

SPECIFICATIONS

• Type Condenser
• Polar Pattern Supercardioid
• Frequency Response 40 Hz to 16.5 kHz
• Maximum SPL ≥140 dB
• Impedance 150 Ohms
• Sensitivity 5 mV/Pa at 1 kHz
• Off-Axis Performance Rejection >20 dB
• Equivalent Noise Level 26 dBA
• Signal to Noise Ratio 68 dB
• RF Power Output 10/30 mW
• Bandwidth 64 MHz
• Gain Adjustment 0 dB, -6 dB, -12 dB
• Battery Life Approximately 14 hours
• Current Consumption 110 mA typical
• Power Requirement 2 x AA 1.5 V batteries
• Dimensions (Diam. x L) 2.1 x 10.4" / 53 x 265 mm
• Weight 11 oz / 312 g without batteries
