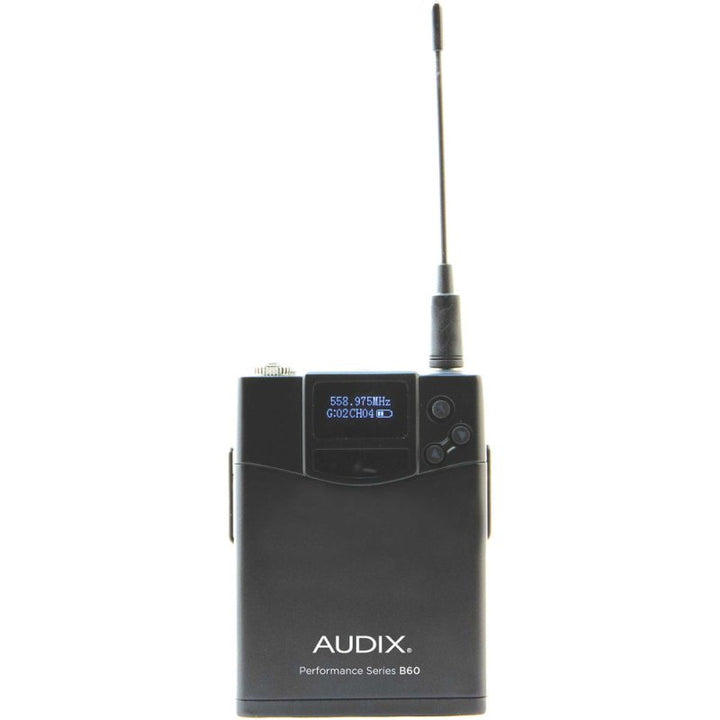

B60 Bodypack Transmitter

The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.

The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.

SPECIFICATIONS

• RF Power Output 10/30 mW
• Bandwidth 64 MHz
• Gain Adjustment 0 dB, -6 dB, -12 dB, -24 dB
• Inputs 1 x mini-XLR 3-pin
• Input Impedance Mic: 10 kOhms
• Line: 1 MOhm
• Maximum SPL Approximately 128 to 140 dB (depending on microphone)
• Battery Life Approximately 14 hours
• Current Consumption 110 mA typical
• Power Requirement 2 x AA 1.5 V batteries
• Dimensions (W x L x D) 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
• Weight 3 oz / 85 g without batteries
