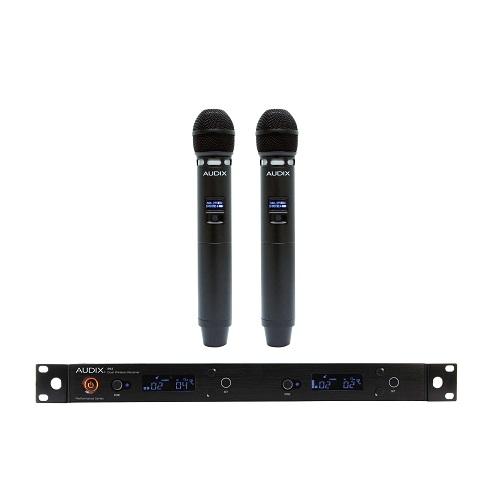

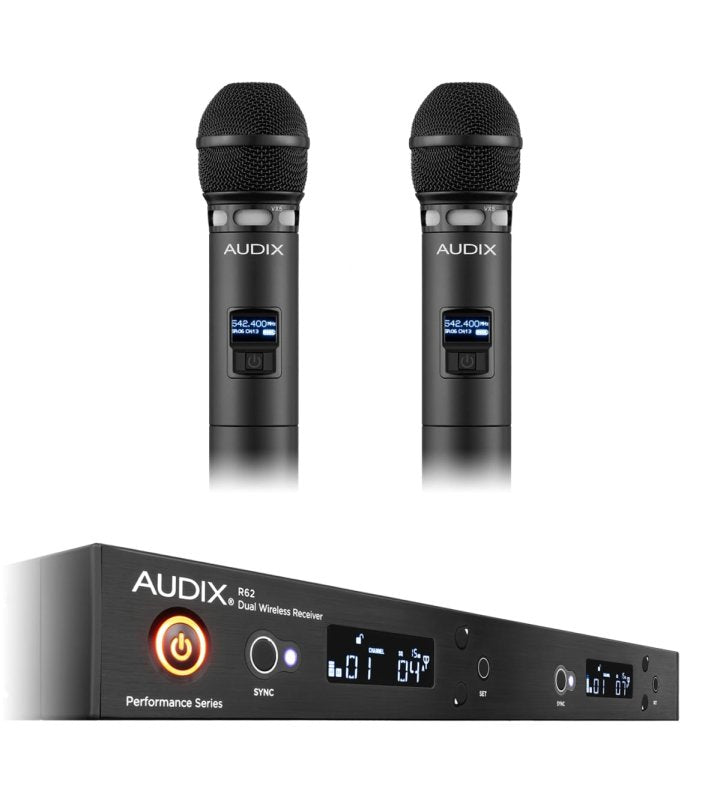

AP62VX5 R62 Receiver With Two H60Vx5 Handheld Transmitters

A highly detailed handheld diversity wireless system featuring the Audix VX5.

The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio and broadcast applications. With an ability to duplicate studio quality sound on stage, the VX5 has a smooth and detailed frequency response, resistance to feedback and handles very high SPLs without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and antenna distribution system for up to four systems (8 channels).

SPECIFICATIONS

• R62 Receiver: Frequency Range522 MHz - 586 MHzR62 Receiver: Bandwidth64 MHzR62 Receiver: Compatible Systems16 Compatible System OperationR62 Receiver: Switchable Frequencies207 Preset FrequenciesR62 Receiver: Manual Mode2560 frequencies (spaced 25 KHz apart)R62 Receiver: Frequency Response45 Hz - 18 kHzR62 Receiver: Signal to Noise Ratio>105 dBR62 Receiver: Compander System2:1R62 Receiver: Pilot Tone32 kHzR62 Receiver: Receiving SystemDual Tuner, True DiversityR62 Receiver: Signal-to-Noise Ratio112 dB at 30 kHz deviation (IEC-weighted)R62 Receiver: Total Harmonic Distortion<= 4% (10 kHz deviation at 1 kHz)R62 Receiver: Sensitivity5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)R62 Receiver: Intermediate Frequency110.6 MHz, 10.7 MHzR62 Receiver: Audio Output (AF=0)1/4" 1100 mV (at 1 kHz,)
• 10 kHz deviation, 10 k Ohm load
• Balanced: 2200 mV (at 1 kHz,)
• 10 kHz deviation, 600 Ohm loadR62 Receiver: Output Connectors1/4", XLRR62 Receiver: Nominal / Peak DeviationBalanced: -12 to +9 dBu
• Line: -24 to +4 dBu (adjustable in 3 dB-steps)R62 Receiver: Adjacent Channel Rejection>65 dBR62 Receiver: Intermodulation Spacing>65 dBR62 Receiver: Image Rejection>70 dBR62 Receiver: Range300' / 91.44mR62 Receiver: Power Supply100 - 240V / 50 - 60 Hz, 12V DC, 1AH60 Transmitter: RF Power Output10 mW, 40 mWH60 Transmitter: Frequency Bandwidth64 MHzH60 Transmitter: Gain Controls0 dB, -6 dB, -12 dBH60 Transmitter: Input ConnectorNoH60 Transmitter: Battery (not included)2 AA 1.5 VH60 Transmitter: Current Consumption110 mA typicalH60 Transmitter: Battery LifeApproximately 10 hours (depending on battery type and usage)H60 Transmitter:Max Sound Pressure Level>140 dB (depending on capsule)VX5 Microphone: Transducer TypePre-Polarized CondenserVX5 Microphone: Frequency Response40 Hz - 16.5 kHzVX5 Microphone: Polar PatternSupercardioidVX5 Microphone: Output Impedance150 OhmsVX5 Microphone: Sensitivity5 mV / Pa at 1kVX5 Microphone: Equivalent Noise Level26 dB (A-weighted)VX5 Microphone: Off Axis Rejection>20 dBVX5 Microphone: Maximum SPL=140 dB (w/ -10 pad)VX5 Microphone: Power Requirements9-52 VVX5 Microphone: Connector3-pin XLRmVX5 Microphone: PolarityPositive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connectorVX5 Microphone: Materials / FinishZinc Alloy & Machined Brass / Black FinishDimensionsR62 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
• H60 Transmitter (Dia. x L): 2.1 x 10.43" / 53.34 x 264.92mm
• VX5 Microphone (Length): 181mm / 7.13"WeightR62 Receiver: 1.92lbs / 0.87kg
• H60 Transmitter: 11.0oz / 311.84g (without battery)
• VX5 Microphone: 277g / 9.77oz
