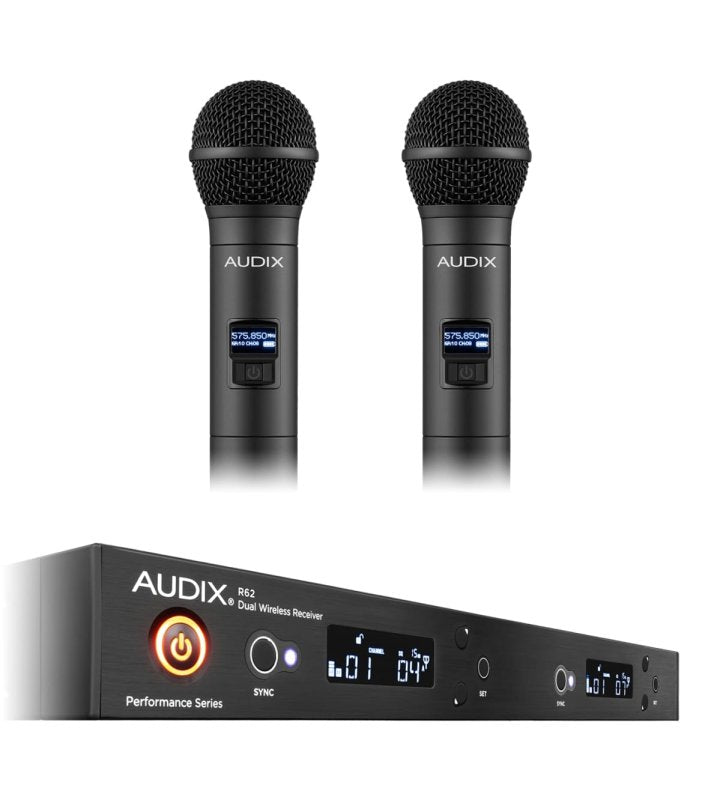

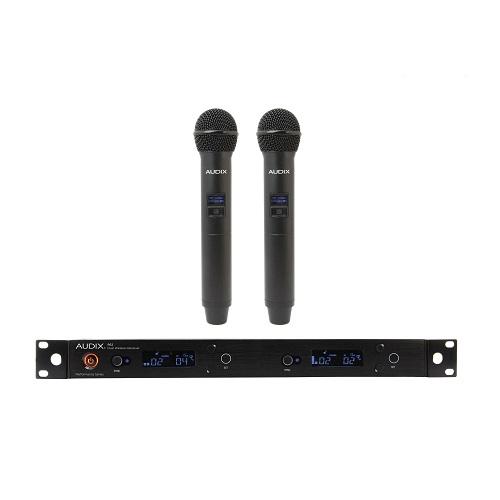

AP62OM5 R62 Receiver With Two H60Om5 Handheld Transmitters

A professional true diversity handheld wireless system featuring the Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and antenna distribution system for up to four systems (8 channels).

SPECIFICATIONS

• Frequency Range: 522 MHz - 586 MHz
• Bandwidth: 64 MHz
• Compatible Systems: 20 Compatible system operation
• Switchable Frequencies: 207 Preset frequencies
• Manual Mode: 2560 Frequencies (spaced 25 kHz apart)
• Frequency Response: 45 Hz - 18 kHz
• Compander System: 2:1
• Pilot Tone: 32 kHz
• Receiving System: Single tuner, true diversity
• Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion: ≤.4% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (AF=0): Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load / 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
• Output Connectors: 1/4", XLR
• Audio Level Adjust Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 6 dB-steps)
• Range: 450 Feet
• Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
• Dimensions: 406 mm (W) x 209 mm (D) x 44 mm (H)
• Net Weight: 4.65 lbs.
