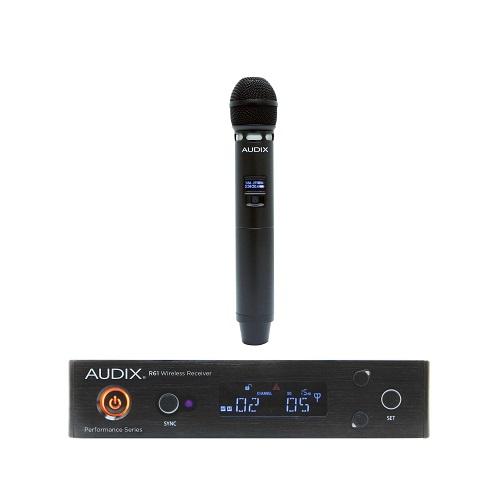

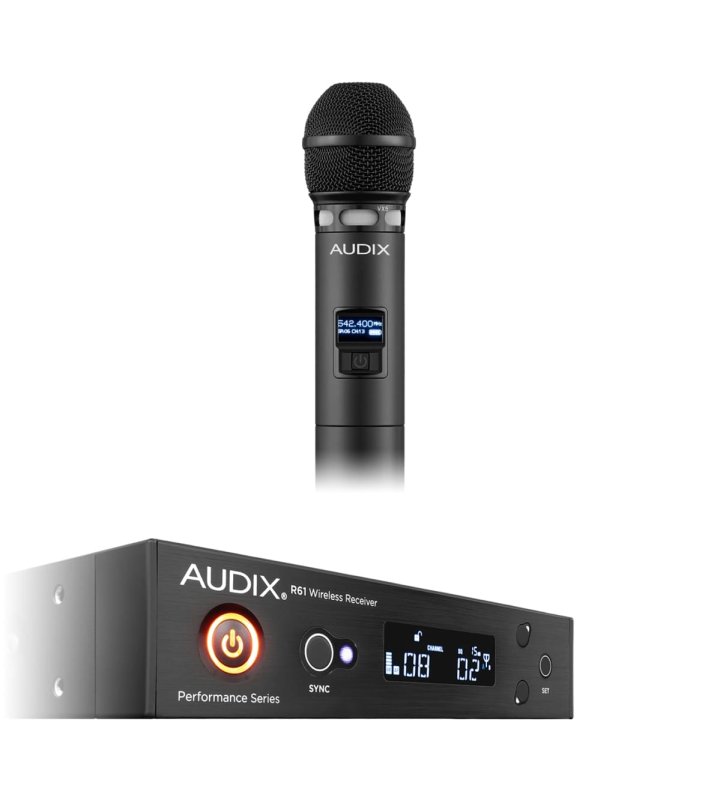

AP61VX5 Receiver With H60Vx5 Handheld Transmitter

A professional true diversity handheld wireless system featuring the Audix VX5.

The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio and broadcast applications. With an ability to duplicate studio quality sound on stage, the VX5 has a smooth and detailed frequency response, resistance to feedback and handles very high SPLs without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include rackmount kit for mounting two systems in one rack space, active directional antennas and antenna distribution system for up to four systems (4 channels).

SPECIFICATIONS

• Frequency Range 522 MHz – 586 MHz
• Bandwidth 64 MHz
• Compatible Systems 16 Compatible system operation
• Switchable Frequencies 207 Preset frequencies
• Manual Mode 2560 Frequencies (spaced 25 kHz apart)
• Frequency Response 45 Hz – 18 kHz
• Compander System 2:1
• Pilot Tone 32 kHz
• Receiving System Single tuner, true diversity
• Signal-to-Noise Ratio 112 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion .4% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
• Output Connectors 1/4", XLR
• Audio Level Adjust Balanced: -12 to +9 dBu
• Line: -24 to +4 dBu (adjustable in 6 dB-steps)
• Range 450', (137 M)
• Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
• Dimensions 205 mm (W) x 206 mm (D) x 44 mm (H)
• Net Weight 2.43 lbs. / 1.1 kg
• RF Power Output 10 mW, 40 mW
• Frequency Bandwidth 64 MHz
• Gain Controls 0 dB, -6 dB, -12 dB
• Batteries Included 2 AA 1.5 V
• Current Consumption 110 mA typical
• Battery Life 10 hours
• Max Sound Pressure Level >140 dB (depending on capsule)
• Dimensions 2.1” diameter body, 10.43” (L),
• 53 mm diameter body, 265 mm (L)
• Net Weight 11.0 oz / 312 g (without battery)
