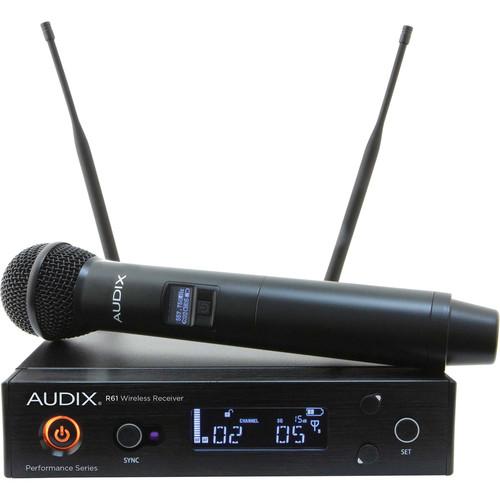

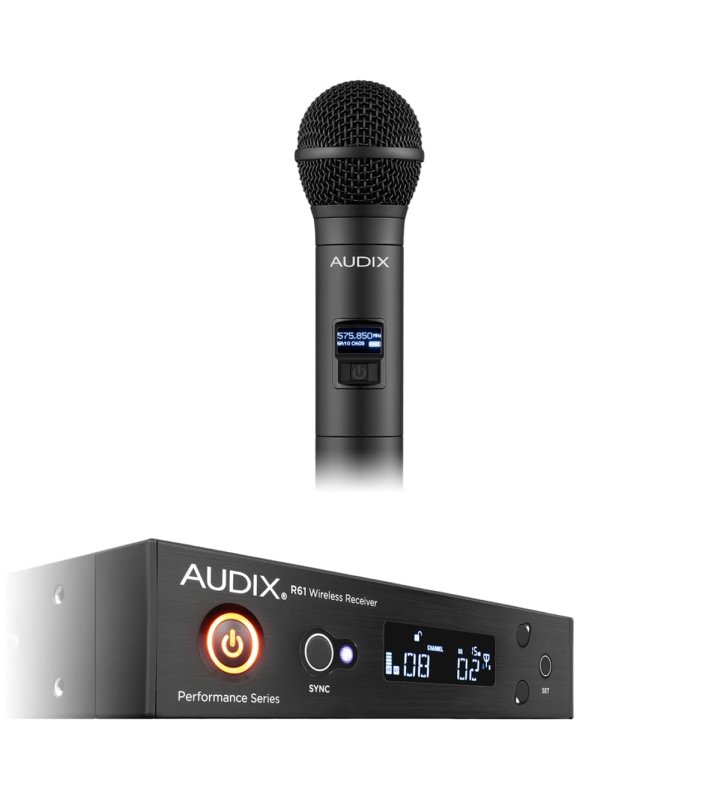

AP61OM2 Single-Channel True Diversity Receiver With Handheld Microphone Transmitter

The Audix AP61 OM2 is a Performance Series single-channel true diversity receiver and transmitter bundle designed to deliver reliable long-range wireless audio for performers, presenters, and audio engineers in clubs, houses of worship, and live stage applications. It includes an R61 single-channel true diversity receiver and one H60 transmitter with an OM2 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, two AA batteries, a power supply, and a rackmount kit.

SPECIFICATIONS

• Frequency Band 522 to 586 MHz
• Bandwidth 64 MHz
• # Of Simultaneous Systems Up to 24
• Switchable Frequencies 207 pre-coordinated frequencies
• Reception Frequencies 2560 tunable frequencies (spaced 25 kHz apart)
• Wireless Range Up to 450' / 137 m
• Antenna Connector 2 x BNC (8 VDC, 150 mA)
• Outputs 1 x XLR 3-pin balanced
• 1 x 1/4" TS unbalanced
• Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control -12 to +9 dB in 3-dB steps
• Frequency Response 45 Hz to 18 kHz
• Compander 2:1
• Pilot Tone 32 kHz
• Receiving System Dual tuner, true diversity
• Signal to Noise Ratio 112 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD) <0.4% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Enclosure Material Metal
• Dimensions (W x D x H) 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm
• Weight 2.4 lb / 1.1 kg
