AP42C210B Dual-Channel Combo Handheld Amp Lavalier Wireless System (554Mhz-586Mhz)

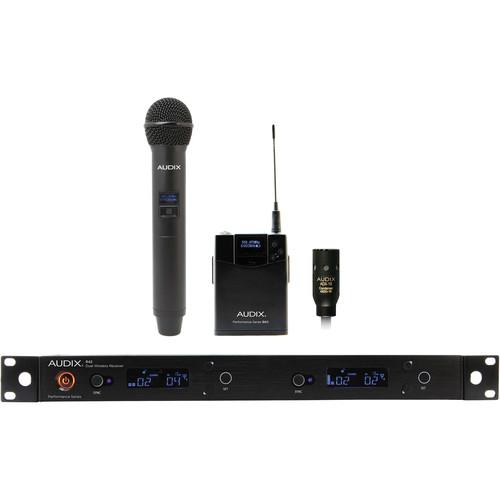

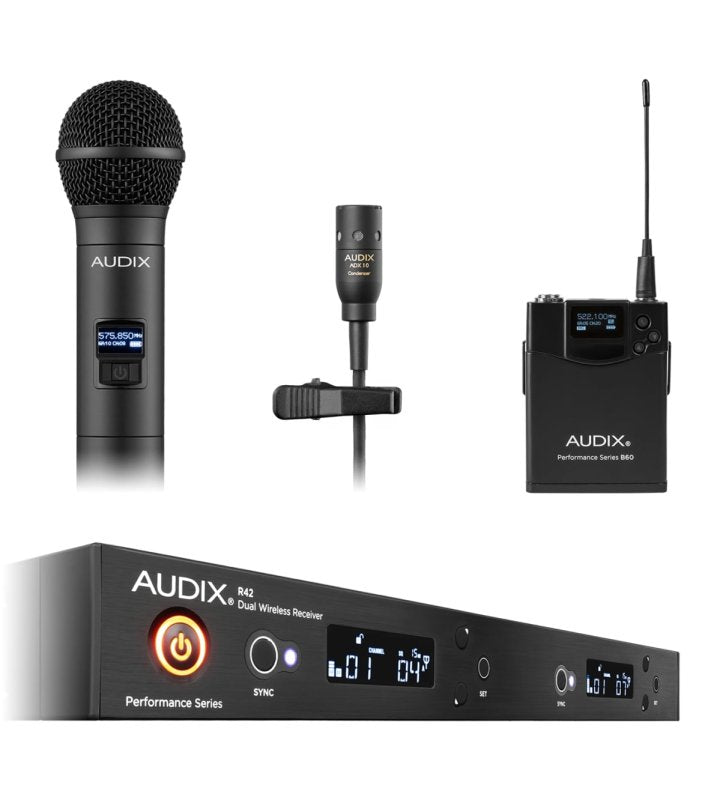

The AP42 Performance Series Dual-Channel Combo Wireless System from Audix includes the R42 2-channel diversity receiver, B60 bodypack transmitter with ADX10 miniaturized lavalier condenser microphone, and H60/OM2 handheld transmitter. This system combines the hands-free convenience of a lavalier with the flexibility of a handheld microphone. It is suitable for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

The R42 receiver operates on a frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. The receiver can be easily linked to the B60 bodypack and the H60 handheld transmitters via infrared beam using its one-touch sync function, and placed within 300'. Both the transmitter units come with a soft mute switch which also serves as an on/off switch when needed and feature a high-contrast LCD display with group, channel, and battery indicator.

The ADX10 cardioid microphone can be connected to the bodypack transmitter via its integrated cable terminated by a 3-pin mini XLR connector. This lightweight, low-profile microphone has the ability to accurately capture and reproduce vocals from a comfortable distance of 4 to 8". The handheld transmitter comes with the OM2 dynamic vocal microphone capsule. This dynamic microphone employs a VLM diaphragm for a clear, precise sound with remarkable voice response.

SPECIFICATIONS

• Frequency Band 554 to 586 MHz
• Bandwidth 32 MHz
• # Of Simultaneous Systems Up to 8
• Switchable Frequencies 106 pre-coordinated frequencies
• Wireless Range Up to 300' / 91 m
• Antenna Connector 2 x BNC (8 VDC, 150 mA)
• Outputs 2 x XLR 3-pin balanced
• 2 x 1/4" TS unbalanced
• Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control -12 to +9 dB in 3 dB steps
• Frequency Response 45 Hz to 18 kHz
• Compander 2:1
• Pilot Tone 32 kHz
• Receiving System Single tuner, antenna diversity
• Signal to Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD) ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Dimensions (W x D x H) 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
• Weight 4.8 lb / 2.2 kg
