AP42BPB Dual-Channel Bodypack Wireless System

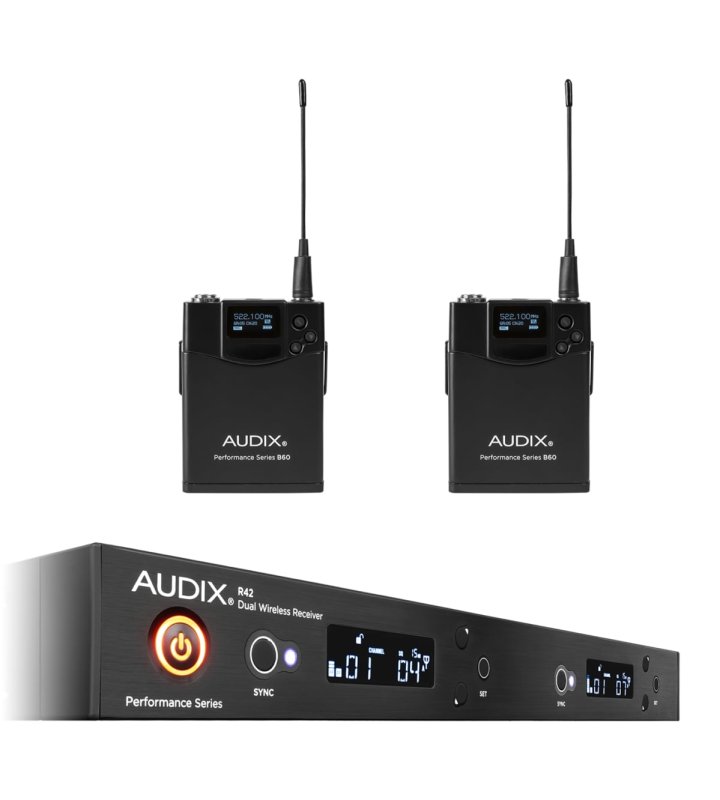

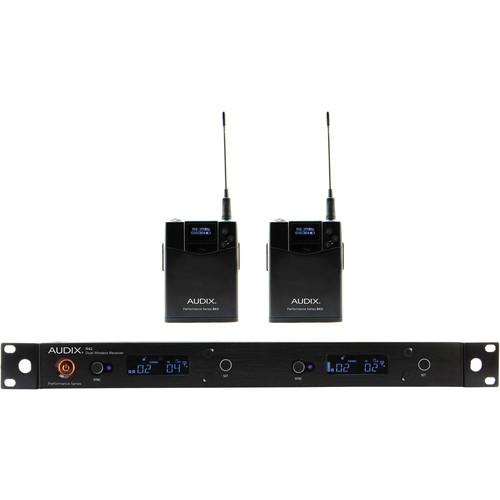

The AP42 Performance Series Dual-Channel Bodypack Wireless System from Audix includes the R42 2-channel diversity receiver and two B60 bodypack transmitters. The R42 diversity receiver operates on a wide-spectrum frequency range of 554 to 586 MHz and offers one-touch auto scan searches for clear channel. It comes in a 19" rackmount chassis and includes BNC cables for front mounting antennas. It also features an internal antenna combiner for dual antenna operation. Thanks to the one-touch sync function, this receiver easily links to the B60 bodypack transmitters placed within 300'.

These bodypack transmitters can be used with any lavalier, headworn, or instrument microphone in the Audix line, as well as electric guitar and bass. Enclosed in a metal housing with modular antenna design, each transmitter comes with AF and RF gain controls and a soft mute switch which also serves as an on/off switch when needed. They also feature a high-contrast LCD display with group, channel, and battery indicator.

SPECIFICATIONS

• Frequency Band 554 to 586 MHz
• Bandwidth 32 MHz
• # Of Simultaneous Systems Up to 8
• Switchable Frequencies 106 pre-coordinated frequencies
• Wireless Range Up to 300' / 91 m
• Antenna Connector 2 x BNC (8 VDC, 150 mA)
• Outputs 2 x XLR 3-pin balanced
• 2 x 1/4" TS unbalanced
• Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control -12 to +9 dB in 3 dB steps
• Frequency Response 45 Hz to 18 kHz
• Compander 2:1
• Pilot Tone 32 kHz
• Receiving System Single tuner, antenna diversity
• Signal to Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD) ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Dimensions (W x D x H) 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm
• Weight 4.8 lb / 2.2 kg
