AP41SAXB Single-Channel Wireless Clip-On Condenser Microphone

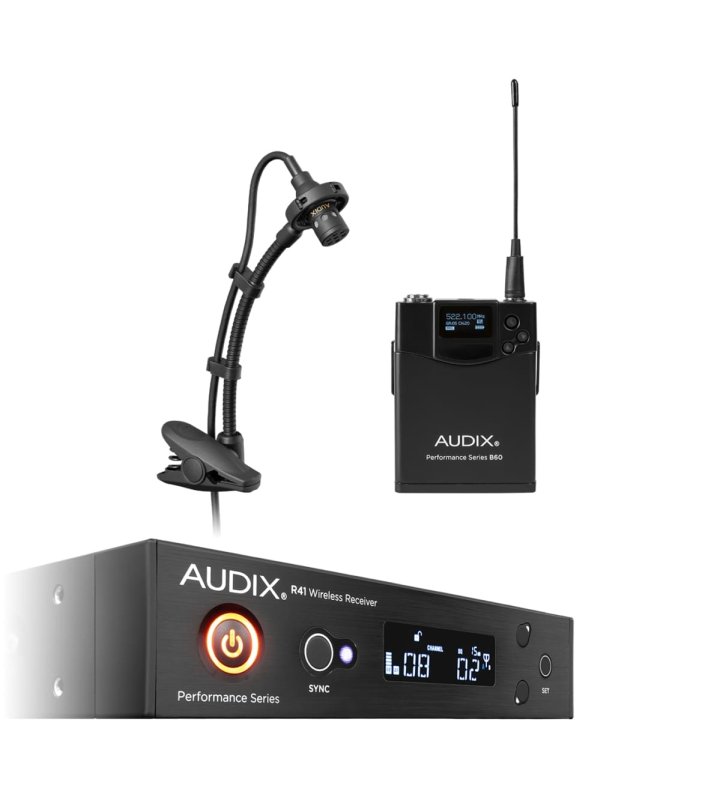

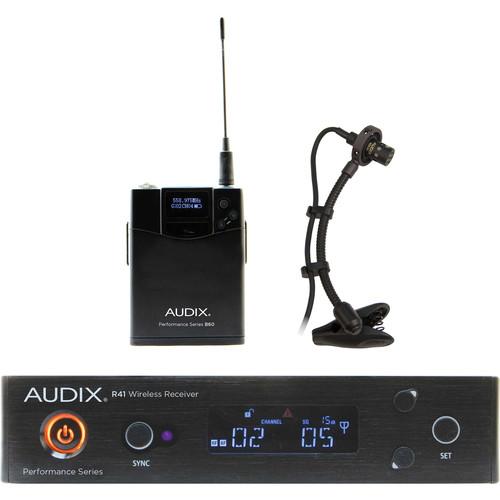

The AP41 Performance Series Single-Channel Instrument Wireless System from Audix includes the R41 1-channel diversity receiver, B60 bodypack transmitter, and ADX20i clip-on cardioid condenser microphone for saxophone, trumpet, and brass instruments. The R41 receiver operates on a frequency range of 554 to 586 MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, the receiver easily links to the B60 bodypack transmitter placed within 300'.

The ADX20i microphone connects to the bodypack transmitter via its mini XLR-terminated cable. Designed for stage, broadcast and recording, the microphone handles high SPLs and provides natural sound reproduction at very close distances. This lightweight, compact, and easy to use microphone features a shock mounted clip to help reduce noise and vibration. The spring tension clip makes for easy mounting on the bell of an instrument, and a flexible gooseneck allows for precise positioning.

SPECIFICATIONS

• Transducer Condenser
• Polar Pattern Cardioid
• Frequency Response 40Hz to 20kHz
• Dynamic Range (Typical) not specified by manufacturer
• Signal-to-Noise Ratio 65dB
• Maximum Input Sound Level 130dB
• Power Requirements 9 - 52V Phantom Power
• Output Impedance 250 Ohms
• Output Connectors mini XLR male (Standard XLR on APS-911)
• Pad On APS-911 only
• Low Frequency Roll-Off On APS-911 only
• Dimensions 1.14 x .47" (29 x 12mm) (Length x Diameter)
• Weight 1.7 oz (4.7 g)
