AP41GUITARA Single-Channel Guitar Wireless System

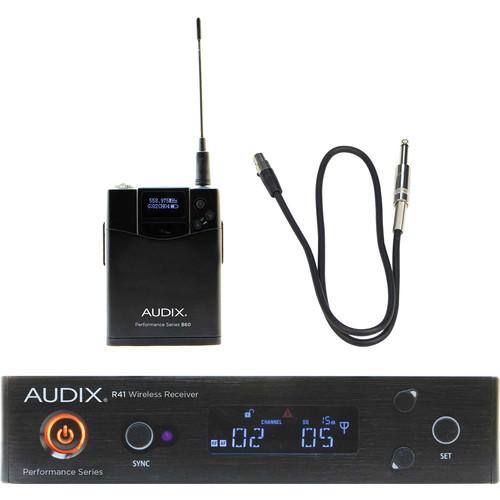

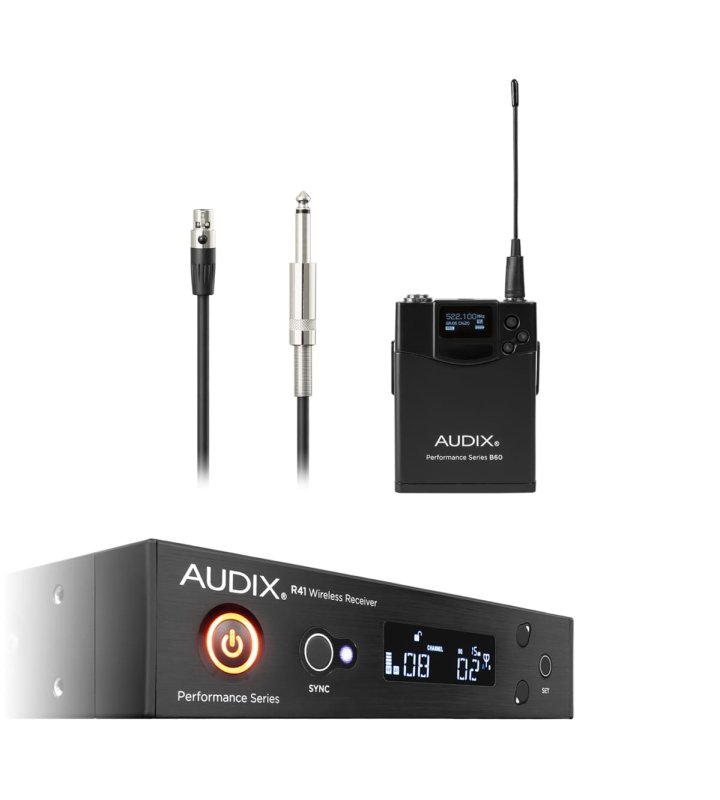

The AP41 Performance Series Guitar Wireless System from Audix includes the R41 1-channel diversity receiver and B60 bodypack transmitter with a 30" guitar cable. The R41 diversity receiver operates on a wide-spectrum frequency range of 522 to 554 MHz MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, this receiver easily links to the B60 bodypack transmitter placed within 300'.

Additionally, the bodypack transmitter can be connected to guitars and instruments using the included 3-pin mini XLR to 1/4" cable. This durable and low-profile aluminum bodypack can be securely clipped onto the guitar strap or clothing. The refined circuitry of the transmitter allows for precise and accurate reproduction of guitar and bass without compromise.

SPECIFICATIONS

• RF Power Output 10/30 mW
• Bandwidth 64 MHz
• Gain Adjustment 0 dB, -6 dB, -12 dB, -24 dB
• Inputs 1 x mini-XLR 3-pin
• Input Impedance Mic: 10 kOhms
• Line: 1 MOhm
• Maximum SPL Approximately 128 to 140 dB (depending on microphone)
• Battery Life Approximately 14 hours
• Current Consumption 110 mA typical
• Power Requirement 2 x AA 1.5 V batteries
• Dimensions (W x L x D) 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm
• Weight 3 oz / 85 g without batteries
