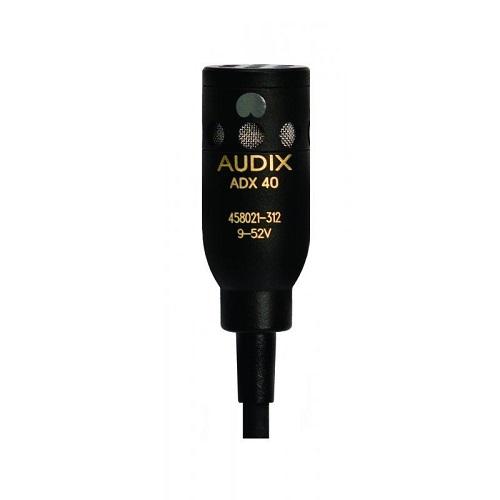

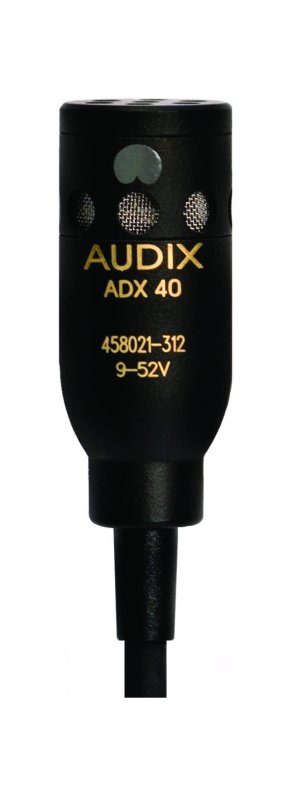

ADX40 Instrument Microphone

FEATURES

The Audix ADX40 overhead microphone is a professional solution for capturing stage performances, choirs, live bands, worship gatherings, presentations, etc. The miniature pre-polarized condenser capsule features a modular element design. This model ships with a cardioid element although hypercardioid and omnidirectional are available as options.

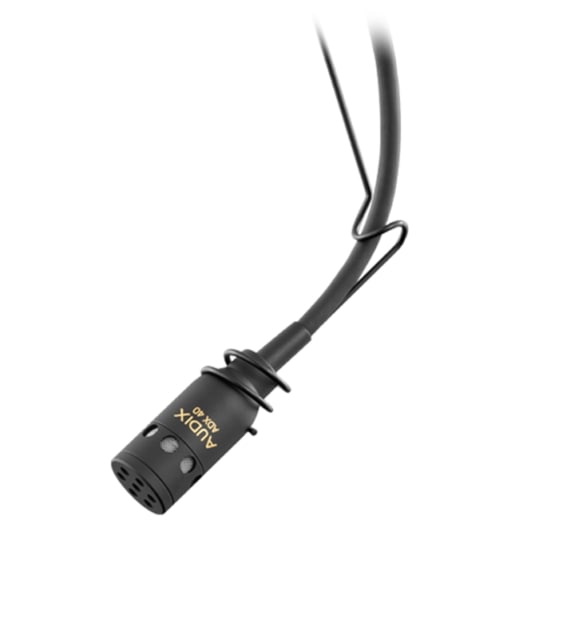

The cardioid polar pattern is ideal for general sound reinforcement applications, as it provides a generous pick up area while minimizing off-axis noise and feedback. The wide frequency response and low signal-to-noise ratio ensure accurate signal reproduction throughout the entire range. The ADX40 is designed to hang from an overhead position and includes the MC40 wire hanger, 30 foot cable and APS910 preamplifier / power supply.

SPECIFICATIONS

• Transducer Condenser (Pre-polzarized)
• Polar Pattern Cardioid
• Frequency Response 40Hz to 20kHz
• Signal-to-Noise Ratio 65dB
• Maximum Input Sound Level 130dB
• Power Requirements 9 to 52V Phantom Power
• Output Impedance 250 ohms Balanced
• Output Connectors 3-pin XLR from APS910 Phantom Power Preamplifier
• Pad No
• Low Frequency Roll-Off No
• Dimensions Capsule: 1.46 x .47" (37.2 x 12mm) (Length x Diameter)
• Cable Length: 30' (9.1m)
• APS910 Power Supply: 3.39 x .75" (86.2 x 19mm)
• Weight 4 oz (110 grams)
• Package Weight 0.75 lb
• Box Dimensions (LxWxH) 8.9 x 4.3 x 2.6"
