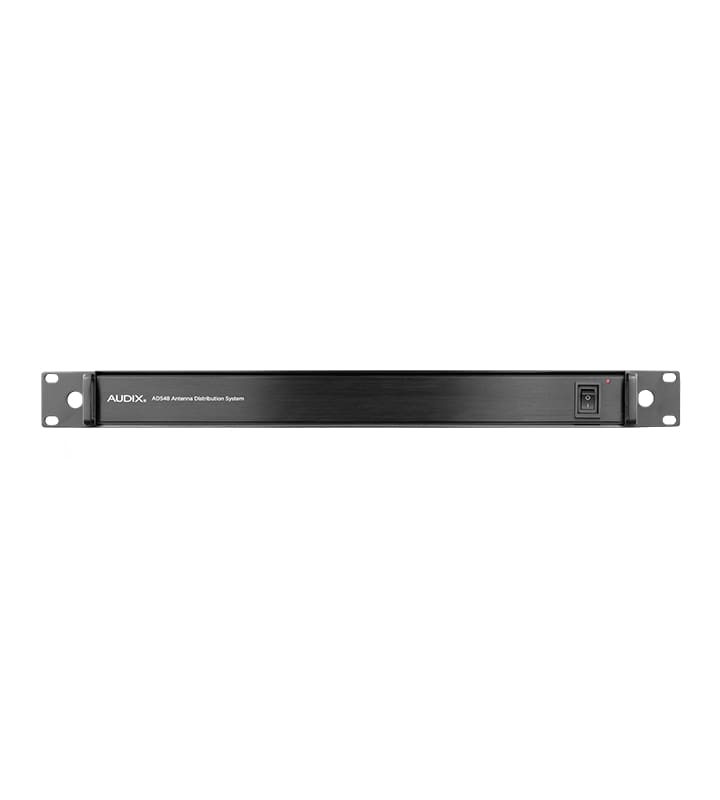

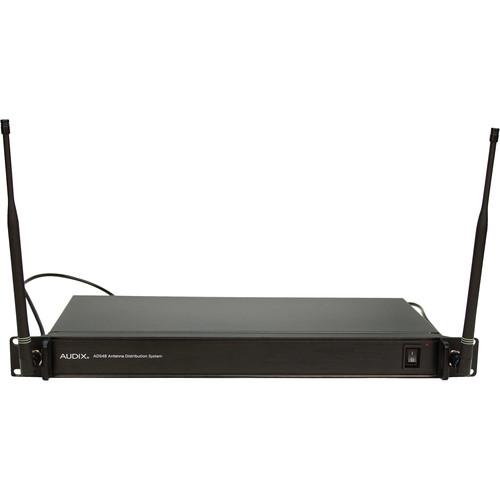

Ads48 Antena Distribution System
Description
The Audix ADS48 is a wide range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each receiver. RF signals are internally amplified in order to compensate for any loss that may result from splitting the signal.
SPECIFICATIONS
- Product Type RF splitter
- Intended For Wireless microphone system
- Frequency Range 520 - 936 MHz
- Package Content 2 antennas, RF splitter, 5 power cables, 8 BNC cables, 2 antenna cables
- Width 18.9 in
- Depth 9.8 in
- Height 1.8 in
- Weight 4.74 lbs
- ConnectionsÂ
- 2 x antenna input - BNC
- 8 x RF output - BNC
- 4 x DC power output
- Power Source Integrated power supply
- Package Weight 8.7 lb
- Box Dimensions (LxWxH) 23.4 x 16.8 x 3.4"
