ES8755R
Description

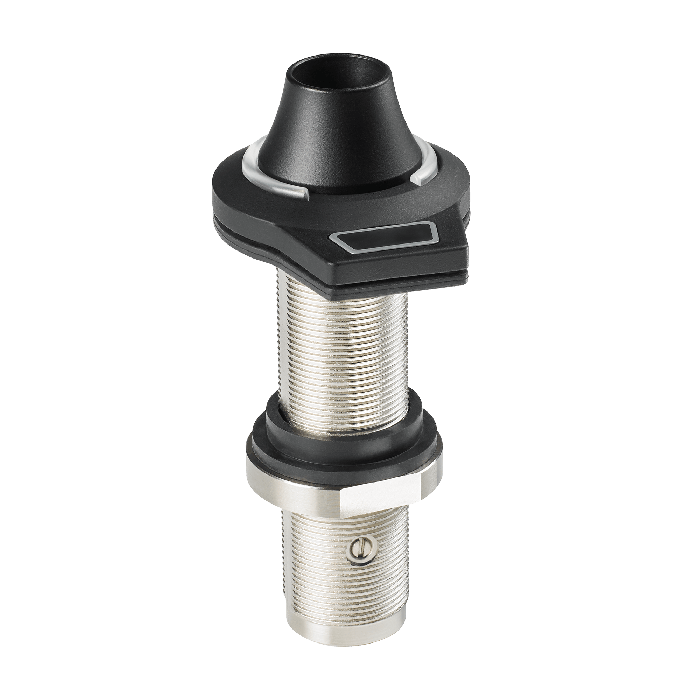

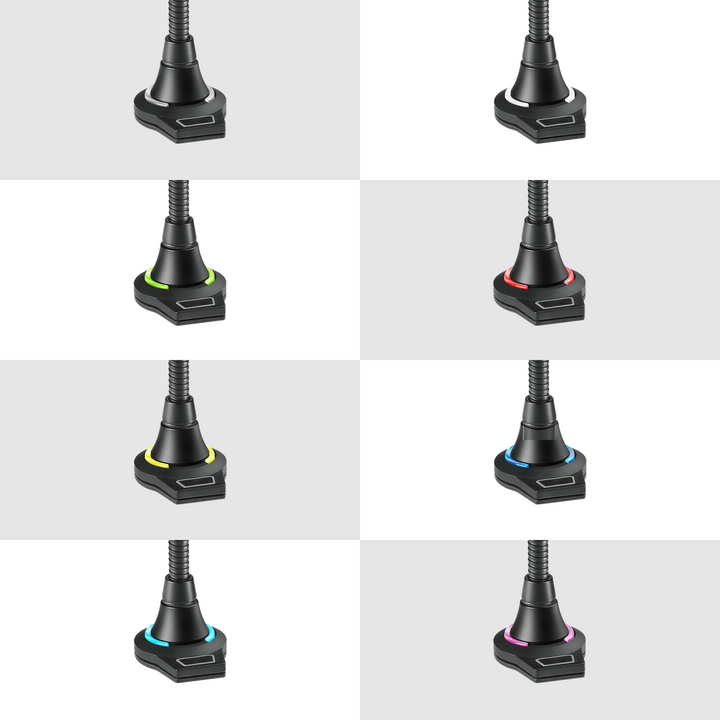

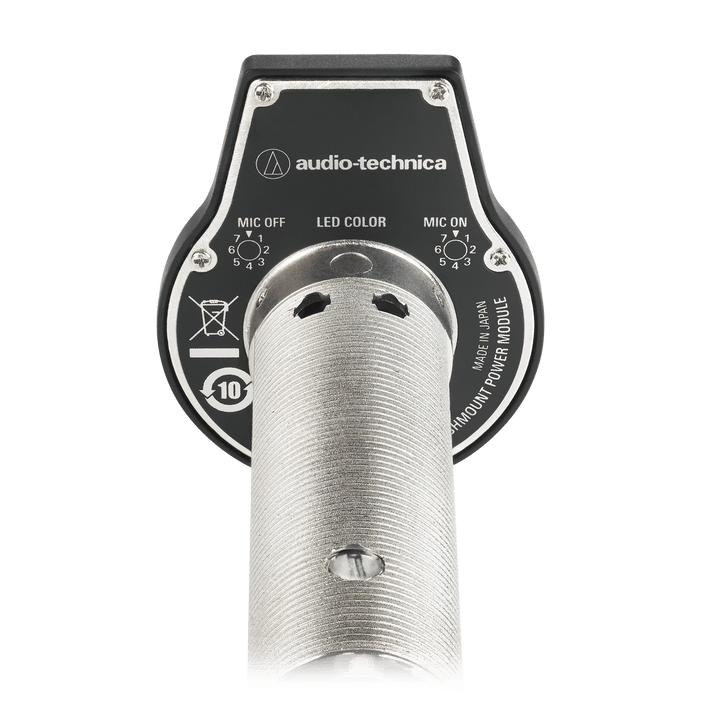

The ES8755R 3-pin flush-mount power module works with ES925 goosenecks and microphone elements. The power module is equipped with a 3-pin XLRM-type output connector and a touch-sensitive capacitive-type user switch that enables local muting of the microphone. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. The power module also features a highly visible, two-state RGB LED status indicator.
Specifications
Impedance: 180 ohms
Phantom Power Requirements: 22-52V DC
Switch: LED Color: mic on, mic off
Weight: 75 g (2.6 oz)
Dimensions: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 90.8 mm (3.57") H
Output Connector: Integral 3-pin XLRM-type
Accessories Furnished: One pair of isolators; nut; set screw (M2 x 2); hex wrench
