BP3600

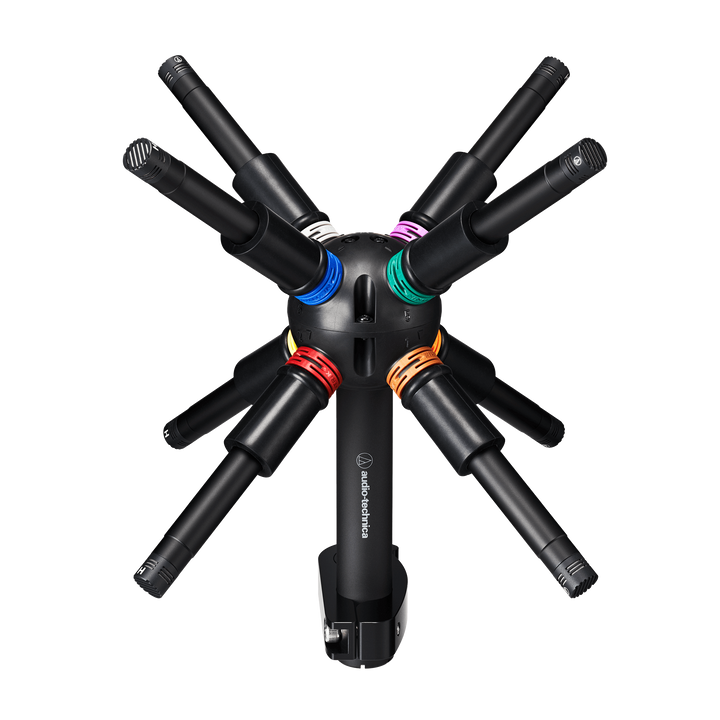

Capture stable, three-dimensional sound beds at sporting events, movie sets, concerts, festivals and more with the BP3600 immersive audio microphone. This practical, state-of-the-art broadcast solution allows you to establish a truly immersive audio image that can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing. The BP3600 consists of eight 3.5" (8.8 cm) long microphone assemblies that extend to form a cube, the capsules equidistant from the center and separated from one another by 15 cm. This eight-channel near-coincident array provides ample spaciousness and controlled separation not found in other all-in-one immersive audio microphones.

Each microphone assembly is equipped with a 12 mm hypercardioid capsule for consistent, focused pickup, producing ideally separated, discrete signals to each channel. The diminutive capsules also keep the entire unit small and lightweight, enabling quick setup and inconspicuous use for video broadcasts. The main unit’s TA3F microphone connectors are outfitted with color-coded and numbered channel indicator rings for easy reference and come with water protection caps to guard against rain and other precipitation.

At the end of the BP3600’s easy-carry grip is a 16-pin LEMO output connector to which the included 16.4' (5 m) LEMO-to-XLRM (x 8) breakout cable can be attached to route the eight channels to a mixing console or audio interface. LEMO-to-LEMO extension cables are available separately for use between the microphone and the breakout cable to increase the length of the cable run. A safety ring provides additional security when suspending the microphone above spectators in grandstands, stadiums or auditoriums.
