Description

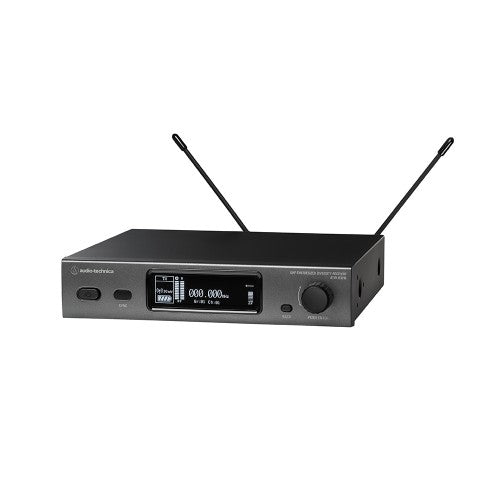

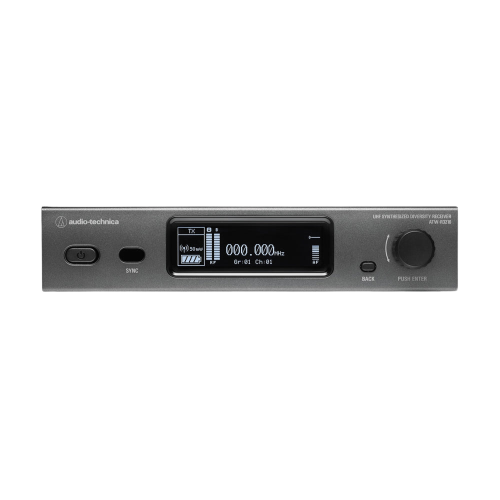

The Audio-Technica ATW-R3210DE2 is a fourth-generation 3000 Series half-rack True Diversity UHF receiver for ATW-T3201 and ATW-T3202 transmitters in band DE2 (470.125 to 529.975 MHz). Auto-scan, IR sync, auto-squelch, and a dual-mode OLED are on the front panel.
Antenna jacks supply 12 V for powered antennas. Outputs are balanced XLR and unbalanced 1/4".
Specifications
- Operating frequencies: DE2 470.125 to 529.975 MHz (2395 selectable frequencies)
- Tuning bandwidth: 60 MHz
- Frequency step: 25 kHz
- Receiving system: True Diversity
- Operating range: 100 m (328') typical, open range with no interfering signals
- Simultaneous channels: Up to 40 simultaneous channels per band (region and band dependent)
- RF output: High 30 mW / Low 10 mW, switchable at 50 ohms
- Dimensions: 210.0 mm (8.27") W × 191.0 mm (7.52") D × 43.4 mm (1.71") H
- Weight: 1,100 g (38.8 oz) without accessories
- Audio outputs: XLR balanced +14 dBV; 6.3 mm (1/4") unbalanced +8 dBV
- Antenna power: 12 V DC, 160 mA combined
In the Box
- ATW-R3210 receiver
- Two flexible UHF antennas
- AC adapter
- Rack-mount adapters
- Joining plate
