Description

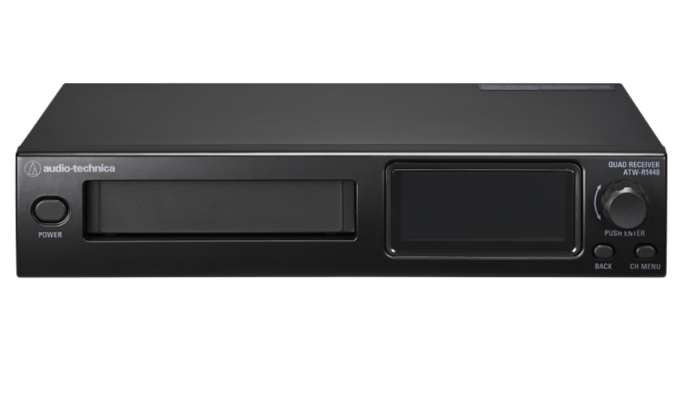

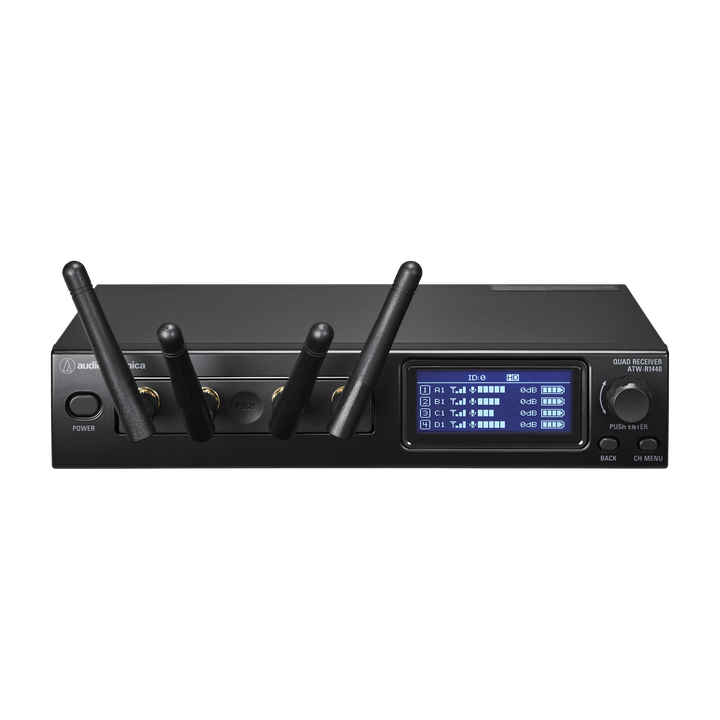

The Audio-Technica ATW-R1440 is the System 20 PRO 4-channel digital wireless receiver: an ATW-RC14 half-rack chassis with a removable ATW-RU14 receiver unit. It receives System 20 PRO transmitters in the 2.4 GHz band with AES128 encryption.

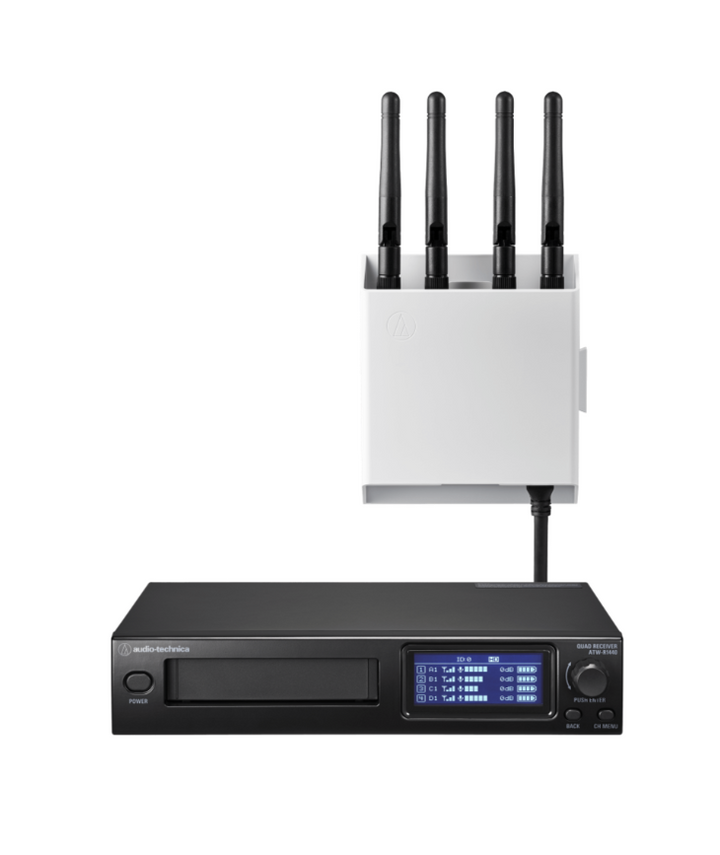

The RU14 can stay in the chassis or mount remotely. Standard mode supports 10 channels; HD mode supports 20. Outputs switch between line and mic level.
Specifications
- Operating frequencies: 2,402 to 2,480 MHz
- Audio: 24-bit / 48 kHz, 120 dB (A-weighted), typical dynamic range
- Encryption: AES128
- Delay: Standard 2.8 ms; HD mode 6.7 ms
- Operating range: Up to 60 m (200') typical
- Simultaneous channels: Standard 10 channels; HD mode 20 channels (region and environment dependent)
- THD: less than 0.05% typical
- RF output: 10 mW EIRP
- Receiver dimensions: 209.8 mm (8.3") W × 165.6 mm (6.5") D × 42.5 mm (1.7") H
- Receiver weight: 740 g (26 oz)
- Receiver unit dimensions: 86.0 mm (3.4") W × 70.2 mm (2.8") D × 18.7 mm (0.74") H
- Receiver unit weight: 77 g (2.7 oz)

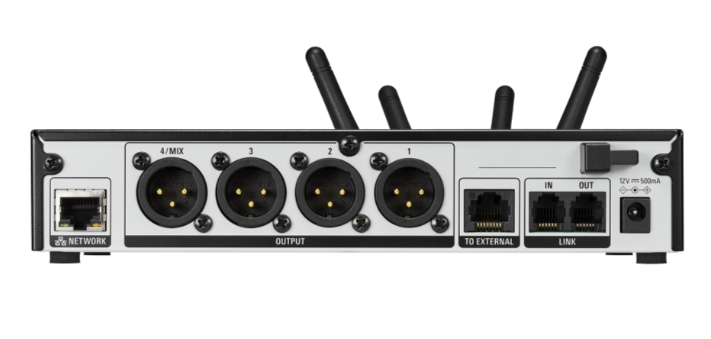

- Network / link: RJ45 Fast Ethernet; RJ12 link
In the Box
- ATW-RC14 chassis with ATW-RU14 receiver unit
- AC adapter and blade
- Short and long rack-mount adapters
- Fixing screws (5)
- 30 cm (12") link cable
- Rubber feet (4)
- Unit holder, holder cover, wood screws, four antennas
