ATW-CHG3NAD

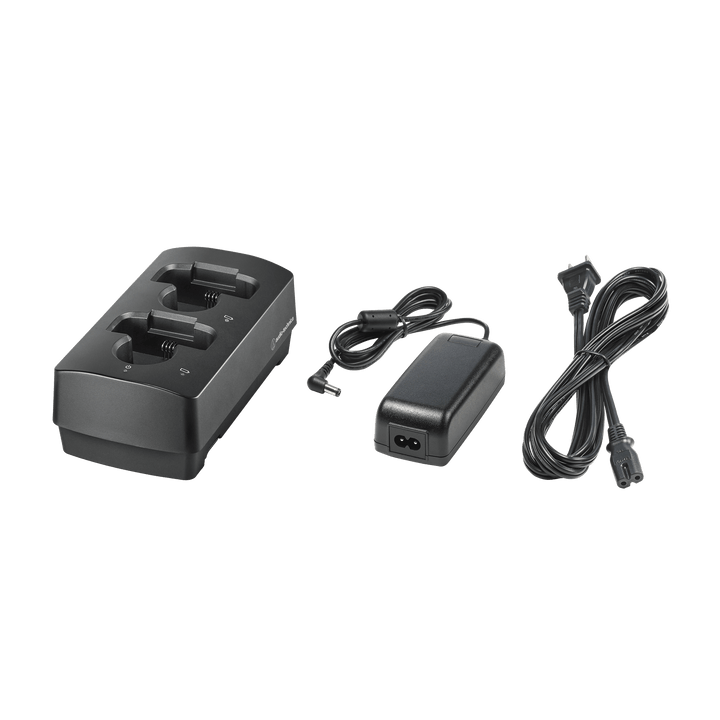

The ATW-CHG3NAD bundles the ATW-CHG3N networked two-bay charging station with the AD-SA1230XA AC adapter.

The charging station works with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters, charging NiMH batteries (not included) while they are housed within the transmitters. The station will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3N is equipped with power and charging status indicator LEDs for easy monitoring.

When used with AT8687 link kit(s) (sold separately), the ATW-CHG3N can be linked with up to four ATW-CHG3 stations, with all powered by the single AD-SA1230XA AC adapter included in this bundle. The ATW-CHG3N also connects to networks via standard Ethernet cable, allowing the charging status of all transmitters in linked stations (both ATW-CHG3N and ATW-CHG3) to be monitored through the dedicated Audio-Technica app or third-party software.

Specifications:

Power Requirements:  12V DC 3.0 A

Charging Output:  3.6V DC 500 mA (x2)

Power Consumption :  5.3 W (when 2 transmitters are charging)

27.8 W (when CHG3N and four CHG3 units are connected and 10 transmitters are charging)

Charging Time:  Approx. 6.5 hours (1,900 mAh rechargeable battery)

Depending on battery type and use pattern

Operating Temperature Range:  0° C to 40° C (32° F to 104° F)

Dimensions (charger only):  185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)

Net Weight (charger only):  410 g (14.5 oz)
