Description

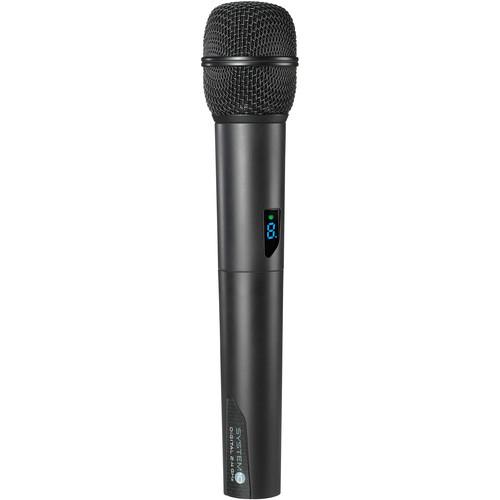

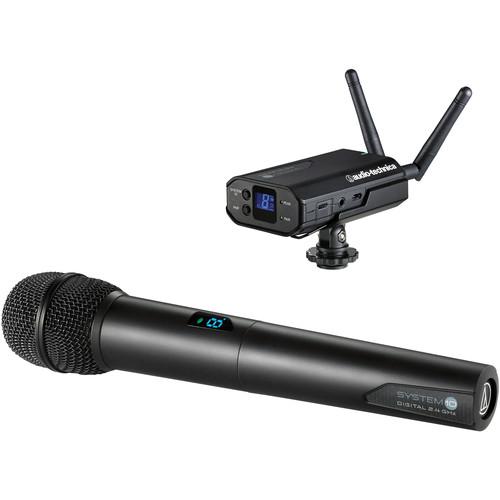

The Audio-Technica ATW-1702 is a System 10 camera-mount digital wireless handheld system for video and ENG. It includes the ATW-R1700 shoe-mount receiver and an ATW-T1002 unidirectional dynamic handheld transmitter.
The receiver mounts on a cold or hot shoe, with headphone monitoring and a switchable 3.5 mm balanced / dual-mono output. Its internal Li-ion pack runs about 12 hours. Audio is 24-bit / 48 kHz in the 2.4 GHz ISM band (2400 to 2483.5 MHz).
Specifications
- Operating frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Audio: 24-bit / 48 kHz, >109 dB (A-weighted), typical dynamic range
- Latency: 3.8 ms
- Operating range: 30 m (100') typical, open range with no interfering signals
- Simultaneous systems: Up to 8 systems simultaneously
- Diversity: Frequency, time, and space
- THD: less than 0.05% typical
- Receiver dimensions: 56.0 mm (2.20") W × 91.4 mm (3.60") H × 27.8 mm (1.09") D
- Receiver weight: 105 g (3.7 oz)
- Receiver outputs: 3.5 mm (1/8") TRS balanced +6 dBV; dual mono unbalanced 0 dBV
- Receiver battery: Internal 3.7V Li-ion, 5.5 Wh / 1,460 mAh, 12 hours typical
- Handheld dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
- Handheld weight: 280 g (9.9 oz) without batteries
- Element: Unidirectional dynamic
- Handheld RF / battery: 10 mW; Two 1.5V AA (not included), >7 hours alkaline
In the Box
- ATW-R1700 camera-mount receiver
- ATW-T1002 handheld transmitter
- AT8456a Quiet-Flex stand clamp
- Two antennas
- Camera shoe mount
- USB-type AC adapter
- USB cable
- 3.5 mm (1/8") stereo cable
