Description

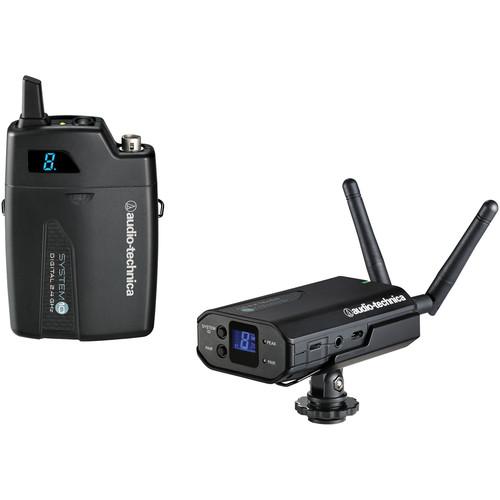

The Audio-Technica ATW-1701 is a System 10 camera-mount digital wireless bodypack system for video and ENG. It includes the ATW-R1700 shoe-mount receiver and an ATW-T1001 UniPak body-pack. Add a cW-style microphone or cable to complete the channel.
The receiver mounts on a cold or hot shoe and offers a headphone monitor plus a 3.5 mm output that switches between balanced and dual-mono unbalanced. An internal 3.7V Li-ion pack runs about 12 hours. Audio is 24-bit / 48 kHz in the 2.4 GHz ISM band (2400 to 2483.5 MHz). Operating range is about 30 m (100').
Specifications
- Operating frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Audio: 24-bit / 48 kHz, >109 dB (A-weighted), typical dynamic range
- Latency: 3.8 ms
- Operating range: 30 m (100') typical, open range with no interfering signals
- Simultaneous systems: Up to 8 systems simultaneously
- Diversity: Frequency, time, and space
- THD: less than 0.05% typical
- Receiver dimensions: 56.0 mm (2.20") W × 91.4 mm (3.60") H × 27.8 mm (1.09") D
- Receiver weight: 105 g (3.7 oz)
- Receiver outputs: 3.5 mm (1/8") TRS balanced +6 dBV; dual mono unbalanced 0 dBV
- Receiver battery: Internal 3.7V Li-ion, 5.5 Wh / 1,460 mAh, 12 hours typical
- Charge time: Approx. 4 hours 30 minutes
- Body-pack dimensions: 70.2 mm (2.76") W × 107.0 mm (4.21") H × 24.9 mm (0.98") D
- Body-pack weight: 100 g (3.5 oz) without batteries
- Body-pack RF / battery: 10 mW; Two 1.5V AA (not included), >7 hours alkaline
- Input: cW-style locking 4-pin (GND / INST / MIC / +9V bias)
In the Box

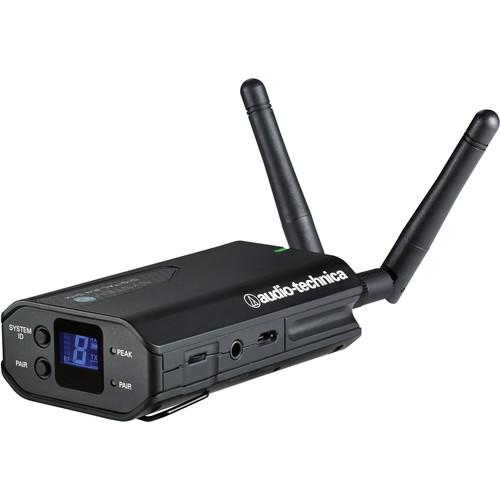

- ATW-R1700 camera-mount receiver

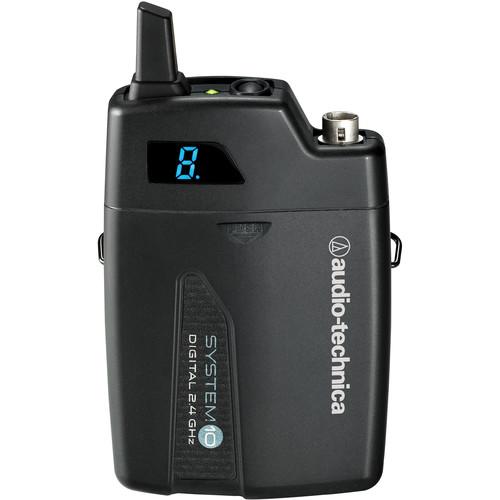

- ATW-T1001 UniPak body-pack transmitter
- Two antennas
- Camera shoe mount
- USB-type AC adapter
- USB cable
- 3.5 mm (1/8") stereo cable
