Audio-Technica ATW-1423/L System 20 PRO Combo Lavalier System
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

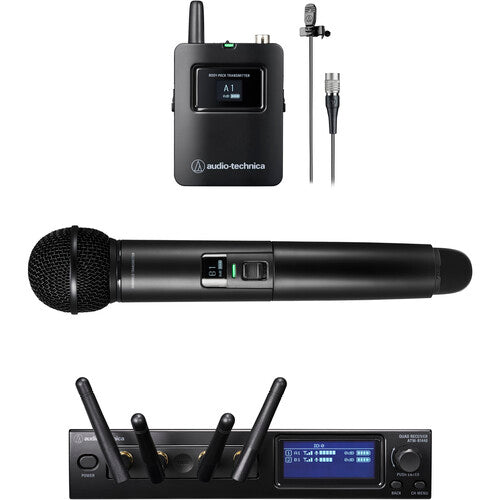

The Audio-Technica ATW-1423/L is a System 20 PRO combo system with one MT830cW lavalier on an ATW-T1401 body-pack, one ATW-T1402 handheld transmitter, and the ATW-R1440 4-channel receiver.
The system ships paired. Standard mode supports 10 channels; HD mode supports 20. Audio is 24-bit / 48 kHz with AES128 encryption.
Specifications
- Operating frequencies: 2,402 to 2,480 MHz
- Audio: 24-bit / 48 kHz, 120 dB (A-weighted), typical dynamic range
- Encryption: AES128
- Delay: Standard 2.8 ms; HD mode 6.7 ms
- Operating range: Up to 60 m (200') typical
- Simultaneous channels: Standard 10 channels; HD mode 20 channels (region and environment dependent)
- THD: less than 0.05% typical
- RF output: 10 mW EIRP
- Receiver dimensions: 209.8 mm (8.3") W × 165.6 mm (6.5") D × 42.5 mm (1.7") H
- Receiver weight: 740 g (26 oz)
- Microphone: MT830cW omnidirectional condenser lavalier, cW 4-pin
In the Box
- ATW-R1440 4-channel receiver (ATW-RC14 chassis with ATW-RU14 receiver unit)
- AC adapter and blade
- Short and long rack-mount adapters
- Fixing screws (5)
- 30 cm (12") link cable
- Rubber feet (4)
- ATW-RU14 unit holder, holder cover, wood screws, and four antennas
- ATW-T1401 body-pack transmitter
- MT830cW lavalier microphone
- ATW-T1402 handheld transmitter
- AT8456a stand clamp and 3/8"-5/8" adapter
