Description

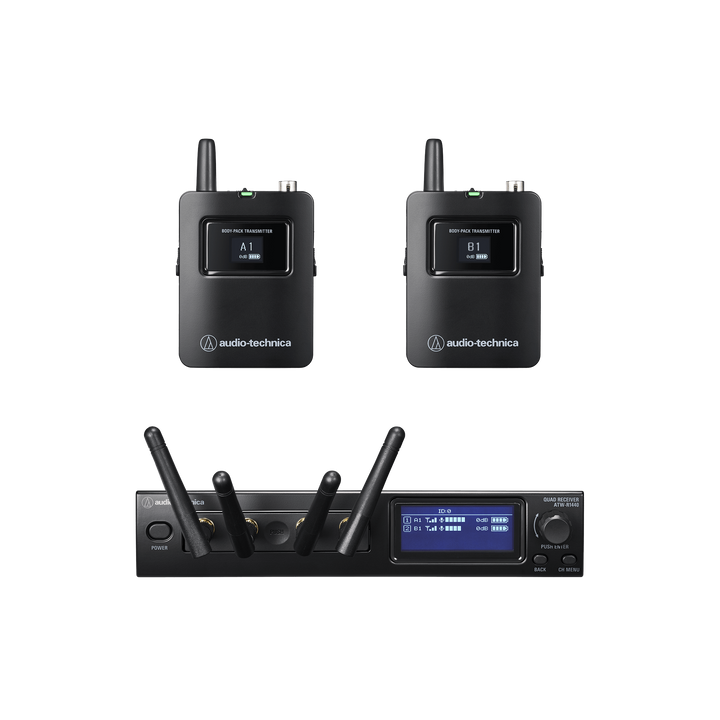

The Audio-Technica ATW-1421 is a System 20 PRO two-channel digital wireless bodypack system. It includes the ATW-R1440 4-channel receiver and two ATW-T1401 body-packs. Add cW-style microphones or instrument cables to complete each channel.
The receiver chassis can host the ATW-RU14 locally or remotely. Standard mode supports 10 channels; HD mode supports 20. Audio is 24-bit / 48 kHz with AES128 encryption in the 2.4 GHz band.
Specifications
- Operating frequencies: 2,402 to 2,480 MHz
- Audio: 24-bit / 48 kHz, 120 dB (A-weighted), typical dynamic range
- Encryption: AES128
- Delay: Standard 2.8 ms; HD mode 6.7 ms
- Operating range: Up to 60 m (200') typical
- Simultaneous channels: Standard 10 channels; HD mode 20 channels (region and environment dependent)
- THD: less than 0.05% typical
- RF output: 10 mW EIRP
- Receiver dimensions: 209.8 mm (8.3") W × 165.6 mm (6.5") D × 42.5 mm (1.7") H
- Receiver weight: 740 g (26 oz)
- Body-pack dimensions: 63.7 mm (2.5") W × 22.7 mm (0.89") D × 107.4 mm (4.2") H
- Body-pack weight: 80 g (2.8 oz) without batteries
- Body-pack battery: Two 1.5V AA: approx. 15 hours alkaline, 14.5 hours NiMH, 29 hours lithium
In the Box
- ATW-R1440 4-channel receiver (ATW-RC14 chassis with ATW-RU14 receiver unit)
- AC adapter and blade
- Short and long rack-mount adapters
- Fixing screws (5)
- 30 cm (12") link cable
- Rubber feet (4)

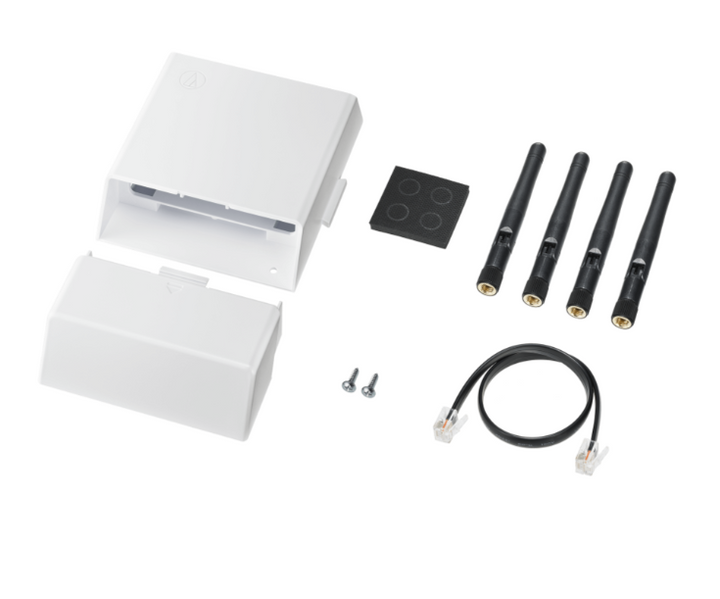

- ATW-RU14 unit holder, holder cover, wood screws, and four antennas
- Two ATW-T1401 body-pack transmitters
