Description

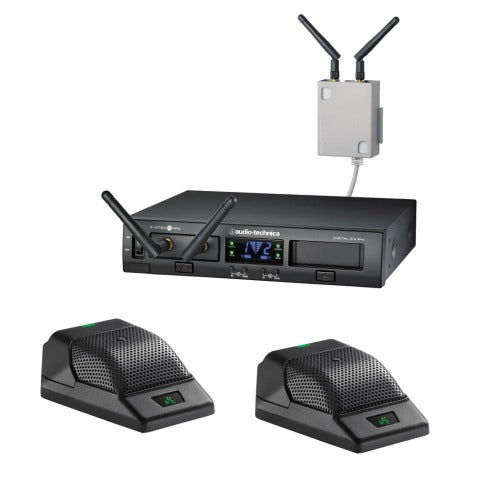

The Audio-Technica ATW-1366 is a two-channel System 10 PRO digital wireless boundary-microphone system. It includes the ATW-RC13 chassis, two ATW-RU13 receiver units, and two ATW-T1006 cardioid condenser boundary transmitters.
Each ATW-T1006 sits on a table for meetings and discussion. It uses a rechargeable 3.7V lithium-ion battery (about 9 hours) with USB charging, a touch-sensitive talk/mute switch, gain, and a low-cut filter. Receiver units can be removed from the chassis and mounted up to 100 m (328') away via Ethernet.
Specifications
- Operating frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Audio: 24-bit / 48 kHz, >109 dB (A-weighted), typical dynamic range
- Latency: 3.8 ms
- Operating range: 60 m (200') typical, open range with no interfering signals
- Remote receiver mount: Up to 100 m (328') via Ethernet
- Linked chassis: Up to 5 chassis / 10 receiver units
- Diversity: Frequency, time, and space
- THD: less than 0.05% typical
- Chassis dimensions: 209.8 mm (8.26") W × 44 mm (1.73") H × 169.3 mm (6.67") D
- Chassis weight: 940 g (33.2 oz)
- Boundary dimensions: 96.8 mm (3.81") W × 38.0 mm (1.50") H × 122.8 mm (4.83") D
- Boundary weight: 415 g (14.6 oz)
- Max SPL: 139 dB SPL
- Boundary battery: 3.7V Li-ion, 9 hours; charge approx. 4.5 hours
In the Box
- ATW-RC13 rack-mount receiver chassis
- Two ATW-RU13 receiver units
- AC adapter
- RJ12 link cable
- Rack-mount adapters
- Rubber feet
- Joining plate
- Two ATW-T1006 boundary microphone transmitters
- USB-type AC adapters and USB charging cables
