Description

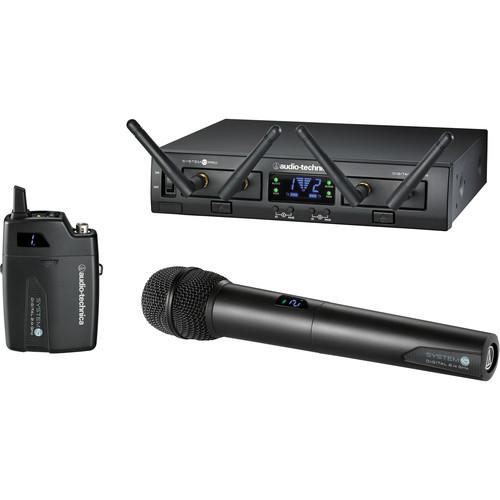

The Audio-Technica ATW-1312 is a two-channel System 10 PRO combo system: one ATW-T1001 UniPak body-pack and one ATW-T1002 handheld transmitter, with the ATW-RC13 chassis and two ATW-RU13 receiver units. Add a cW-style microphone or cable to the body-pack.

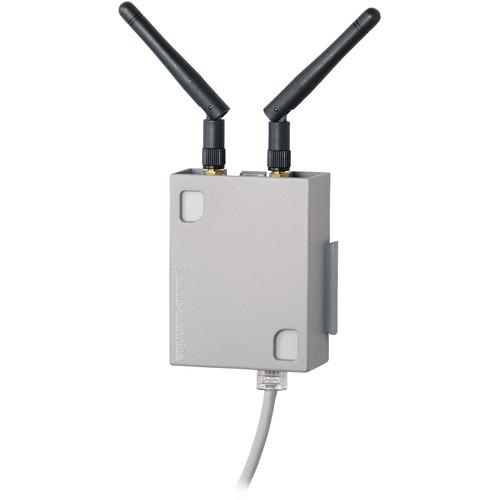

Receiver units can be removed from the chassis and mounted up to 100 m (328') away via Ethernet. Up to five chassis (10 receiver units) can be linked with the included RJ12 cable. Audio is 24-bit / 48 kHz in the 2.4 GHz ISM band (2400 to 2483.5 MHz).
Specifications
- Operating frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Audio: 24-bit / 48 kHz, >109 dB (A-weighted), typical dynamic range
- Latency: 3.8 ms
- Operating range: 60 m (200') typical, open range with no interfering signals
- Remote receiver mount: Up to 100 m (328') via Ethernet
- Linked chassis: Up to 5 chassis / 10 receiver units
- Diversity: Frequency, time, and space
- THD: less than 0.05% typical
- Chassis dimensions: 209.8 mm (8.26") W × 44 mm (1.73") H × 169.3 mm (6.67") D
- Chassis weight: 940 g (33.2 oz)
- Body-pack dimensions: 70.2 mm (2.76") W × 107.0 mm (4.21") H × 24.9 mm (0.98") D
- Body-pack weight: 100 g (3.5 oz) without batteries
- Body-pack RF / battery: 10 mW; Two 1.5V AA (not included), >7 hours alkaline
- Input: cW-style locking 4-pin (GND / INST / MIC / +9V bias)
- Handheld dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
- Handheld weight: 280 g (9.9 oz) without batteries
- Element: Unidirectional dynamic
- Handheld RF / battery: 10 mW; Two 1.5V AA (not included), >7 hours alkaline
In the Box

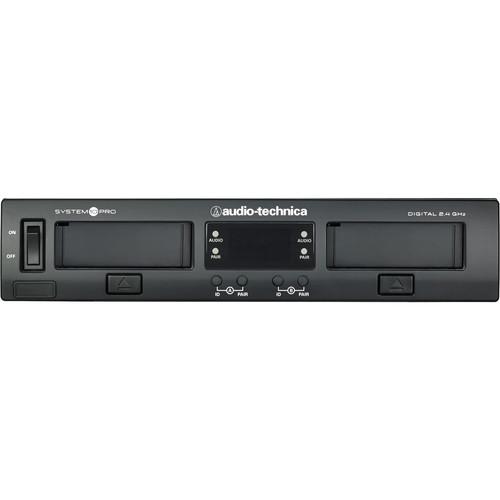

- ATW-RC13 rack-mount receiver chassis

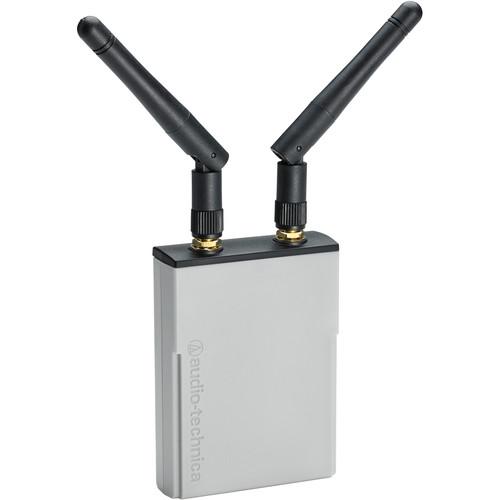

- Two ATW-RU13 receiver units
- AC adapter
- RJ12 link cable
- Rack-mount adapters
- Rubber feet
- Joining plate
- ATW-T1001 UniPak body-pack transmitter
- ATW-T1002 handheld transmitter
- AT8456a Quiet-Flex stand clamp
