Description

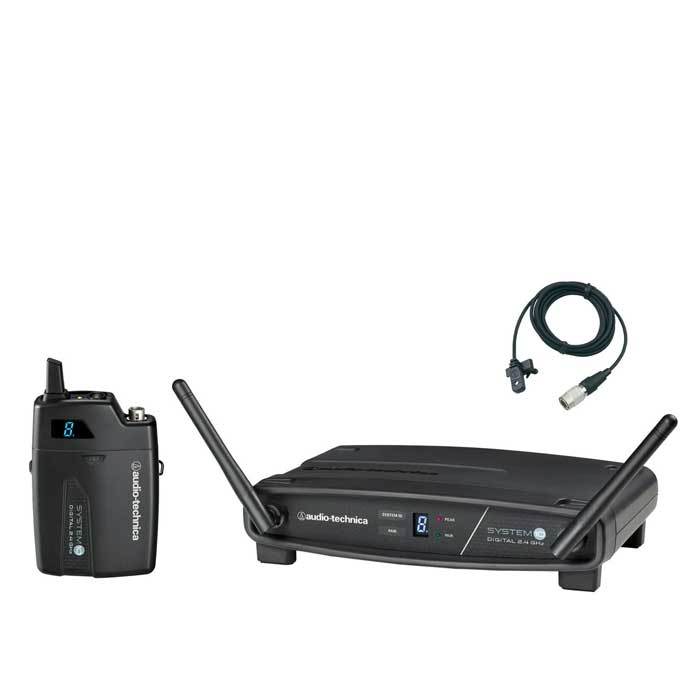

The Audio-Technica ATW-1101/L is a System 10 digital wireless lavalier system. It includes the ATW-R1100 receiver, ATW-T1001 UniPak body-pack, and an MT830cW omnidirectional condenser lavalier microphone.
Clip the lav on clothing and lock the cW 4-pin into the body-pack. The receiver offers balanced XLR and unbalanced 1/4" outputs. Audio is 24-bit / 48 kHz in the 2.4 GHz ISM band (2400 to 2483.5 MHz). Up to eight systems can run together.
Specifications
- Operating frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Audio: 24-bit / 48 kHz, >109 dB (A-weighted), typical dynamic range
- Latency: 3.8 ms
- Operating range: 30 m (100') typical, open range with no interfering signals
- Simultaneous systems: Up to 8 systems simultaneously
- Diversity: Frequency, time, and space
- THD: less than 0.05% typical
- Receiver dimensions: 190.0 mm (7.48") W × 46.2 mm (1.82") H × 128.5 mm (5.06") D
- Receiver weight: 290 g (10.2 oz)
- Audio outputs: XLR balanced 0 dBV; 1/4" (6.3 mm) unbalanced +6 dBV
- Body-pack dimensions: 70.2 mm (2.76") W × 107.0 mm (4.21") H × 24.9 mm (0.98") D
- Body-pack weight: 100 g (3.5 oz) without batteries
- Body-pack RF / battery: 10 mW; Two 1.5V AA (not included), >7 hours alkaline
- Input: cW-style locking 4-pin (GND / INST / MIC / +9V bias)
- Microphone: MT830cW omnidirectional condenser lavalier, cW 4-pin
In the Box
- ATW-R1100 receiver
- Power supply
- ATW-T1001 UniPak body-pack transmitter
- MT830cW lavalier microphone
