ATDM-1012DAN

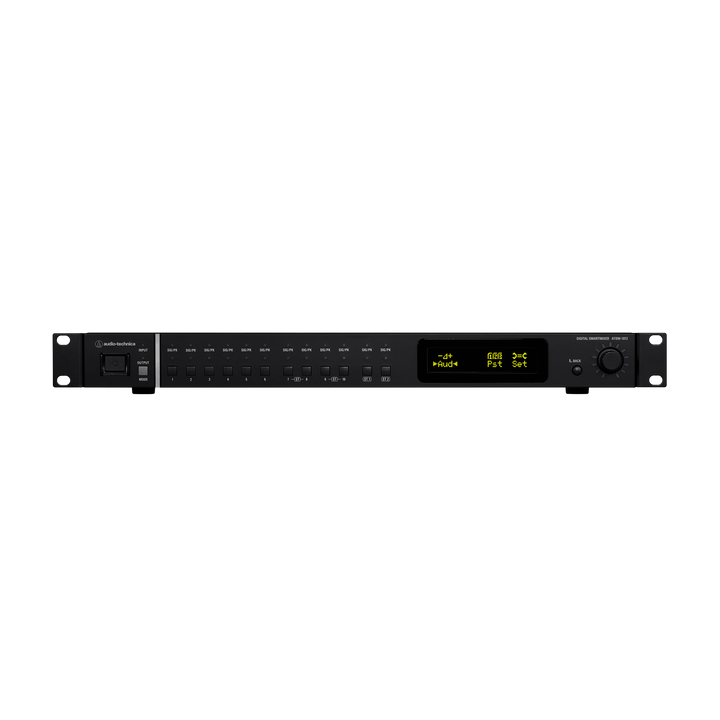

The ATDM-1012 Digital SmartMixer is a flexible and easy-to-use solution for a wide variety of installed audio applications where mix-minus operation or audio pickup from specific zones within a space is required. Its powerful feature set makes it ideal for hospitality, corporate or demanding courtroom settings, and many more.

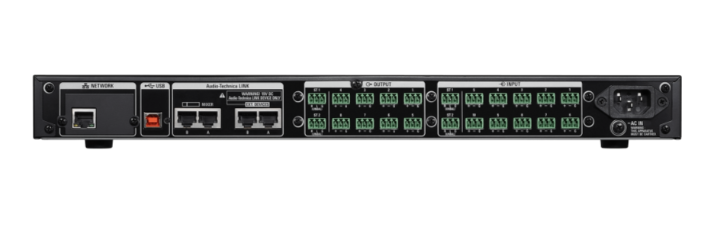

The ATDM-1012 is a 14 input / 12 bus matrix mixer featuring 10 mic/line inputs with high-quality preamps, two stereo line inputs, USB audio I/O, eight balanced outputs and two unbalanced stereo outputs. Ten additional digital inputs can be added either via an Audio-Technica LINK digital connection or over Dante – available with the Dante-enabled ATDM-1012DAN version.

Each input channel is equipped with phase inversion, low-cut filter and a four-band parametric EQ. Inputs can be routed through the routing matrix to any of the 12 busses, which each feature independent volume settings. The ATDM-1012’s smart mixing capabilities offer four mixing groups that can either be gain sharing or gating mixers. Additionally, ten Acoustic Echo Cancellation (AEC) processors, ten compressors/de-essers and eight feedback suppressors can be freely assigned to any of the input or output channels to ensure maximum audio quality at all times.
