Audio-Technica AT8022
Audio-Technica AT8022

Audio-Technica AT8022 X/Y Stereo Microphone

X/Y Stereo Microphone
$589.00 Free Shipping
Found a better price? We'll match it.
SKU: AT8022
Ships from Warehouse
Most Audio-Technica Warehouse orders ship within 5 business days.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
Track Your
Order
2-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
2-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.

A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.

For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

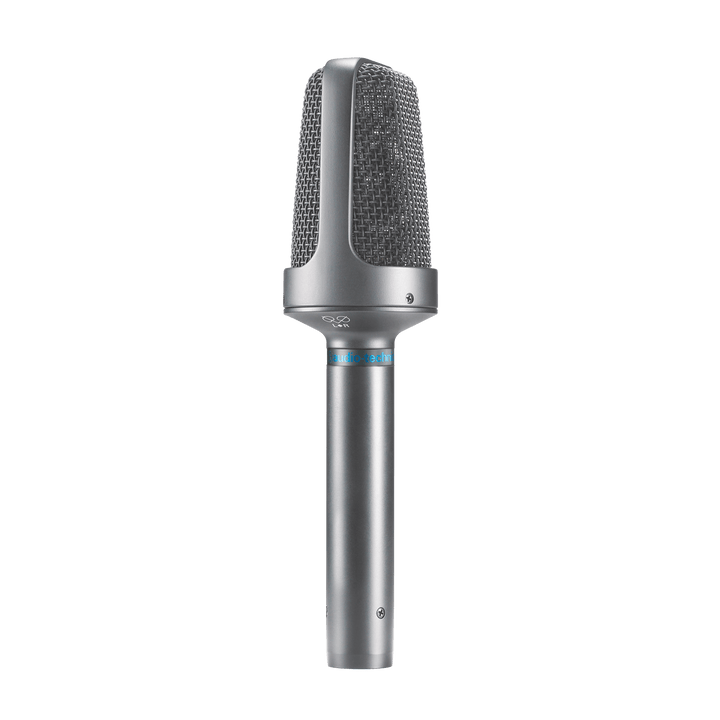

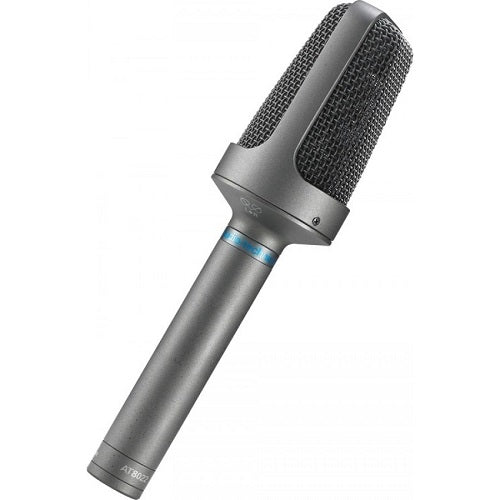

The Audio-Technica AT8022 is a coincident X/Y stereo condenser microphone for camera-mount video, field recording, interviews, and handheld recorders. It runs on phantom or a single AA battery and includes balanced XLR and unbalanced 3.5 mm output cables.

Specifications

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar pattern: X/Y stereo
  • Frequency response: 20-15,000 Hz
  • Low-frequency roll-off: 80 Hz, 18 dB/octave
  • Open-circuit sensitivity: -38 dB (12.5 mV) re 1V at 1 Pa (phantom or battery)
  • Channel balance: less than 2.5 dB
  • Maximum SPL: Phantom: 128 dB; Battery: 120 dB, 1 kHz at 1% T.H.D.
  • Dynamic range: Phantom: 109 dB; Battery: 101 dB, 1 kHz at Max SPL
  • Signal-to-noise ratio: 75 dB, 1 kHz at 1 Pa
  • Phantom power: 11-52V DC, 2 mA typical per channel
  • Battery: 1.5V AA/UM3, 0.7 mA / 700 hours typical (alkaline)
  • Switches: Battery on/off; Flat, roll-off
  • Weight: 247 g (8.7 oz)
  • Dimensions: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter, 21.0 mm (0.83") maximum body diameter
  • Output: Integral 5-pin XLRM
  • Cables: Balanced 2.0 m (6.5') 5-pin XLRF to dual 3-pin XLRM; unbalanced 0.6 m (2.0') to 3.5 mm TRS

In the Box

  • AT8022 microphone
  • AT8405a stand clamp for 5/8"-27 stands
  • Windscreen
  • Balanced stereo cable
  • Unbalanced stereo cable
  • Soft protective pouch
