Audio-Technica AT5045 Cardioid Instrument Microphone

Cardioid Instrument Microphone
Cardioid studio condenser instrument microphone, side-address, stick-type with XLRM-type output.
$1,999.00 Free Shipping
Found a better price? We'll match it.
SKU: AT5045
Ships from Warehouse
Most Audio-Technica Warehouse orders ship within 5 business days.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
Track Your
Order
2-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
2-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.

A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.

For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

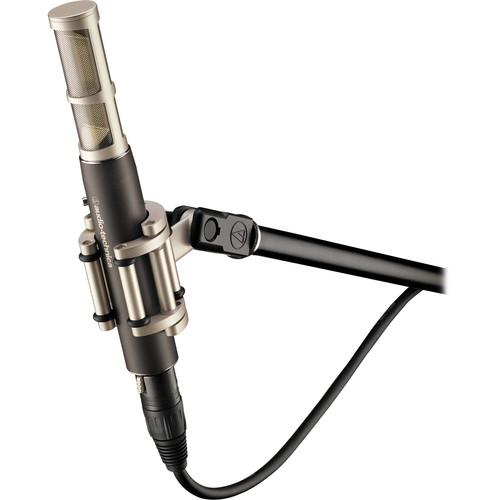

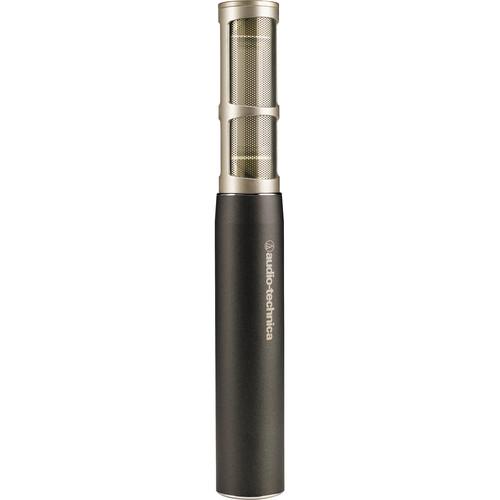

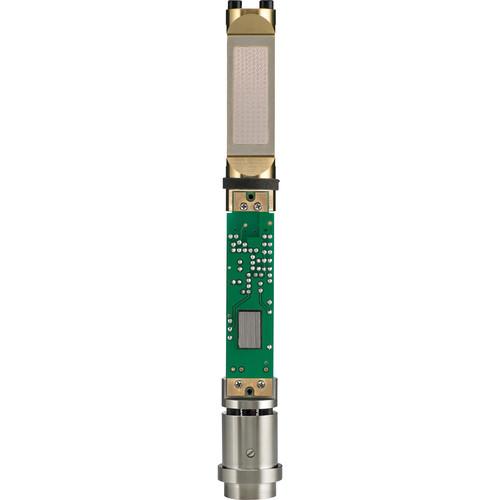

The Audio-Technica AT5045 is a side-address cardioid condenser in a stick body, with Audio-Technica's largest single rectangular diaphragm. A floating internal shock mount and transformer-coupled output are built for percussion, drums, acoustic guitar, strings, and other instruments at high SPL.

Specifications

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar pattern: Cardioid
  • Frequency response: 20-20,000 Hz
  • Open-circuit sensitivity: -35 dB (17.7 mV) re 1V at 1 Pa
  • Impedance: 100 ohms
  • Maximum SPL: 149 dB SPL, 1 kHz at 1% T.H.D.
  • Noise: 8 dB SPL
  • Dynamic range: 141 dB, 1 kHz at Max SPL
  • Signal-to-noise ratio: 86 dB, 1 kHz at 1 Pa
  • Phantom power: 48V DC, 1.4 mA typical
  • Connector: Integral 3-pin XLRM-type
  • Dimensions: 177.0 mm (6.97") long, 25.0 mm (0.98") maximum body diameter
  • Weight: 197 g (7.0 oz)

In the Box

  • AT5045 microphone

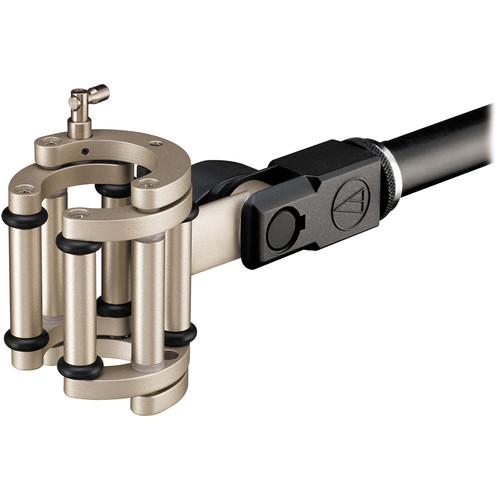

  • AT8481 isolation clamp
  • Stand adapter (5/8" to 3/8")

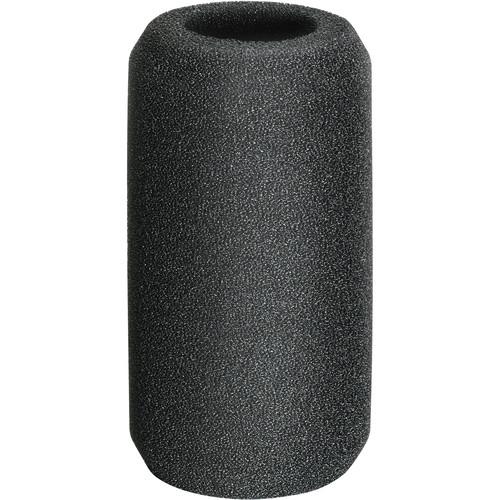

  • AT8165 windscreen

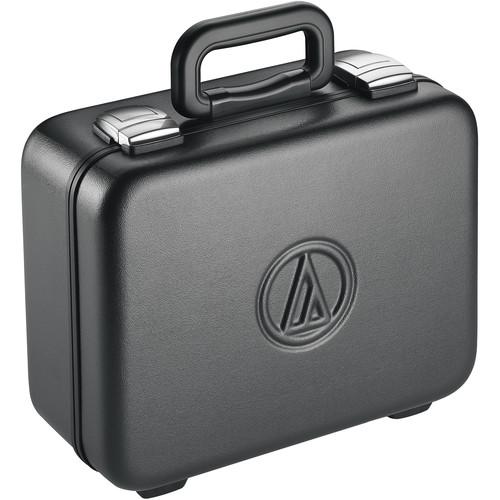

  • Carrying case
