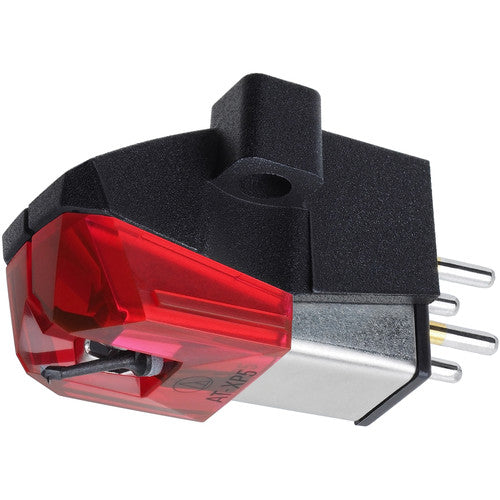

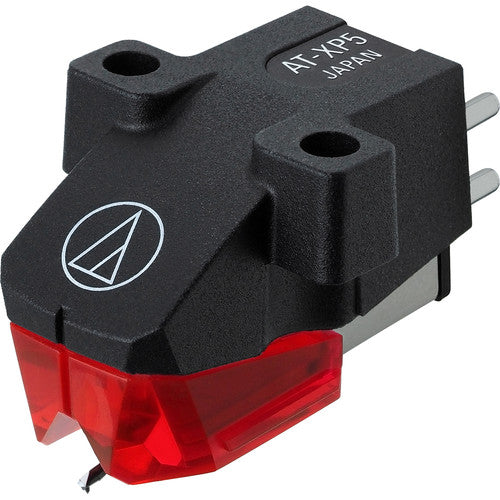

Audio-Technica AT-XP5 Dual Moving Magnet DJ Cartridge (Elliptical)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Audio-Technica AT-XP5 is a DJ phono cartridge with a 0.3 x 0.7 mil elliptical bonded stylus and a rigid PPS/glass fiber body.
Specifications
- Type: VM dual moving magnet DJ cartridge
- Mount: 1/2"
- Body: Polyphenylene sulfide (PPS) / glass fiber
- Tracking force: 2.0 to 4.0 g (3.0 g standard)
- Vertical tracking angle: 20 degrees
- Recommended load: 47,000 ohms, 100 to 200 pF
- Cartridge weight: 6.2 g (0.22 oz)
- Dimensions (H x W x D): 17.2 mm (0.68") x 17.8 mm (0.67") x 28.3 mm (1.20")
- Stylus interchange: Compatible with ATN-XP and AT-VMN95 Series styli
- Frequency response: 20 to 18,000 Hz
- Output voltage: 5.5 mV (1 kHz, 5 cm/sec)
- Channel separation: 20 dB (1 kHz)

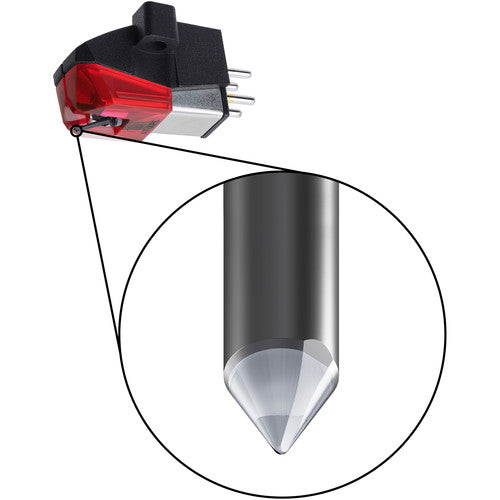

- Stylus: 0.3 x 0.7 mil elliptical bonded
- Cantilever: Carbon fiber-reinforced ABS
- Replacement stylus: ATN-XP5
In the Box
- AT-XP cartridge
- Two 11 mm installation screws
- Two 8 mm installation screws
- Two washers
- Two nuts
- Non-magnetic screwdriver
