Description

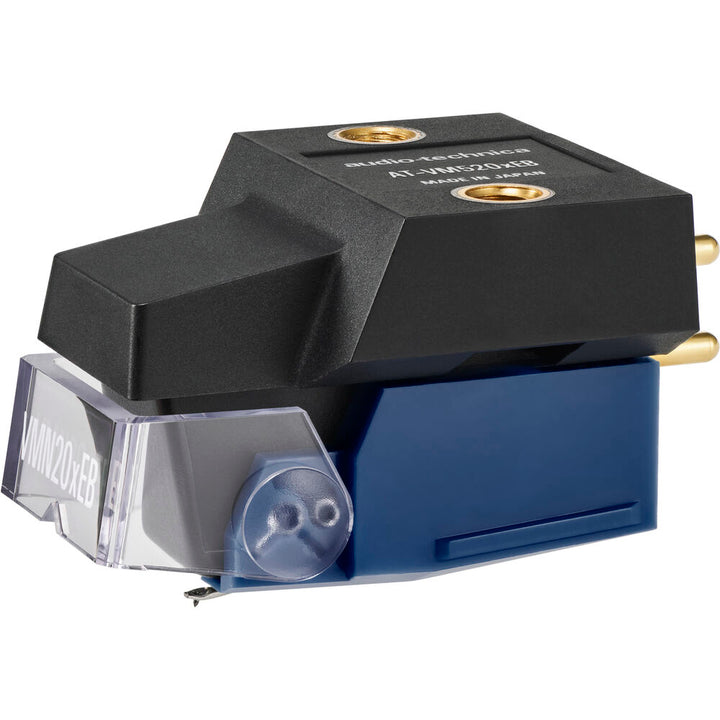

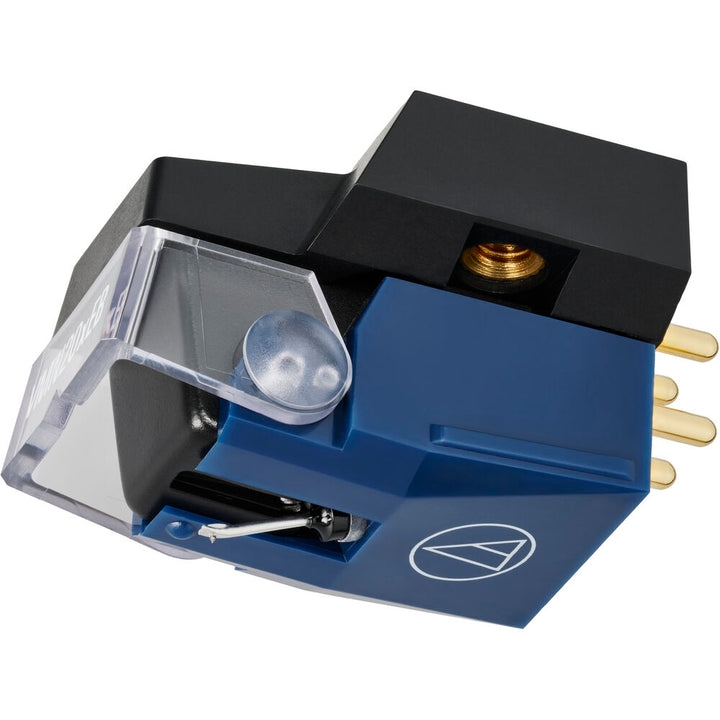

The Audio-Technica AT-VM520xEB is a VMx dual moving magnet phono cartridge with a 0.3 x 0.7 mil elliptical bonded stylus.
Specifications
- Type: VMx dual moving magnet
- Mount: 1/2" threaded body (M2.6)
- Coil: Paratoroidal PCUHD
- Cantilever: Aluminum pipe
- Recommended load: 47 k ohms, 150 to 250 pF
- Vertical tracking angle: 20 degrees
- Cartridge weight: 7.2 g (0.25 oz)
- Dimensions (H x W x D): 17.6 mm (0.69") x 18.3 mm (0.72") x 28.0 mm (1.1")
- Stylus interchange: Most AT-VMx stereo styli interchange on stereo VMx bodies. Mono/SP styli are for mono/SP cartridges only.
- Frequency response: 20 to 20,000 Hz
- Output voltage: 5.0 mV (1 kHz, 5 cm/sec)
- Channel separation: 24 dB (1 kHz)
- Tracking force: 1.8 to 2.2 g (2.0 g standard)
- Stylus: 0.3 x 0.7 mil elliptical bonded
- Replacement stylus: AT-VMN20xEB
In the Box
- Cartridge

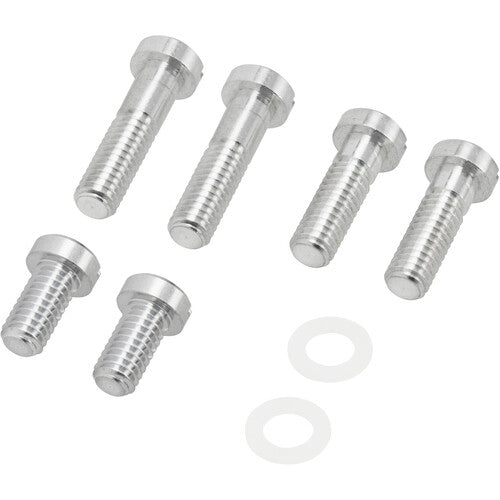

- M2.6 installation screws (10.0 mm x 2, 8.0 mm x 2, 5.0 mm x 2)
- Two washers
