Description

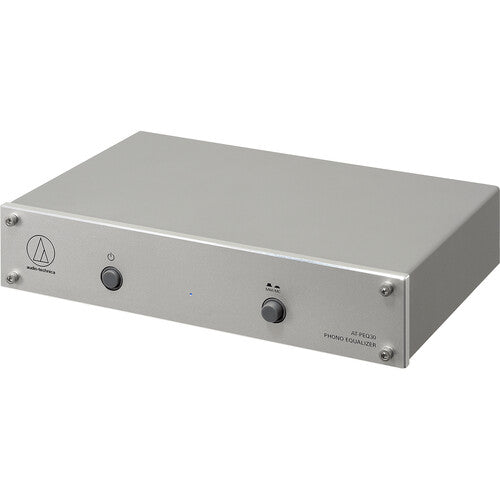

The Audio-Technica AT-PEQ30 is a standalone MM/MC phono equalizer that adds a dedicated RIAA phono stage to a line-level input, or replaces a turntable's built-in preamp. Input is selectable for moving-magnet or moving-coil cartridges with fixed gain and impedance.
Circuit

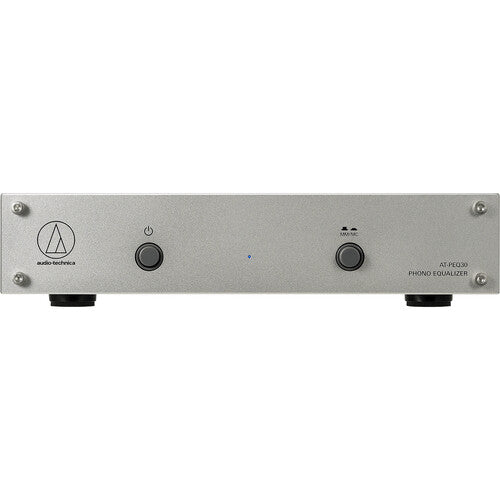

FET inputs feed a negative-feedback RIAA equalizer. The enclosure is all metal; the front panel is machined aluminum and the RCA jacks are gold-plated. RIAA deviation is specified as +/-0.5 dB from 20 Hz to 20,000 Hz for both MM and MC.
Specifications

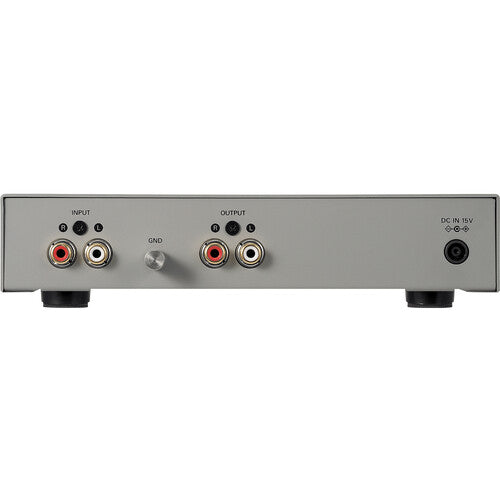

- Inputs: Selectable MM or MC, stereo RCA
- MM input impedance: 47 kilohms
- MC input impedance: 120 ohms
- MM input sensitivity: 4.5 mV
- MC input sensitivity: 0.28 mV
- Rated output: 250 mV (MM and MC)
- MM gain: 35 dB
- MC gain: 59 dB
- Signal-to-noise: MM 100 dB; MC 74 dB
- RIAA deviation: +/-0.5 dB, 20 to 20,000 Hz (MM and MC)
- Power: DC 15 V, 1.2 A (included AC adapter); 2.5 W
- Dimensions (H x W x D): 47 x 197.5 x 125.5 mm (1.85" x 7.78" x 4.94"), excluding protrusions
- Weight: 890 g (31.4 oz / 1.96 lb)
In the Box
- AT-PEQ30 phono equalizer
- AC adapter
