Description

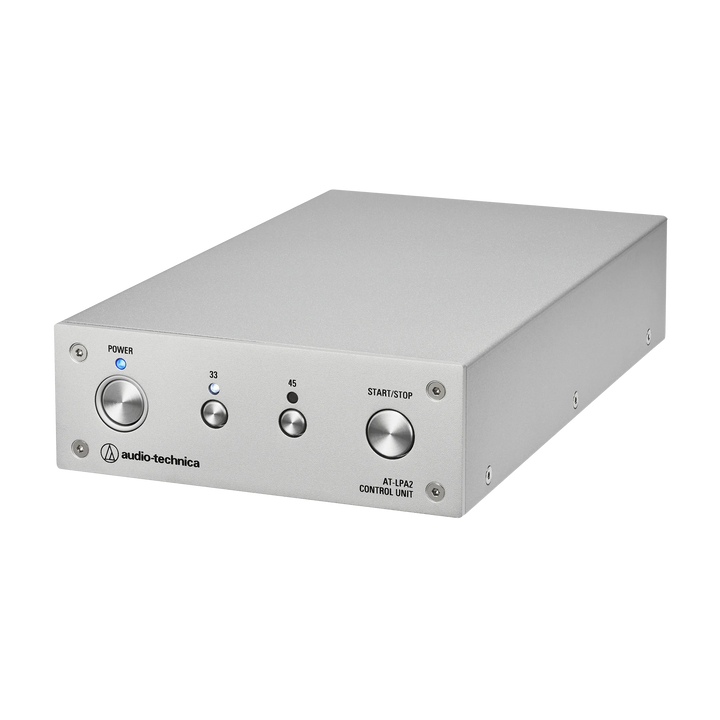

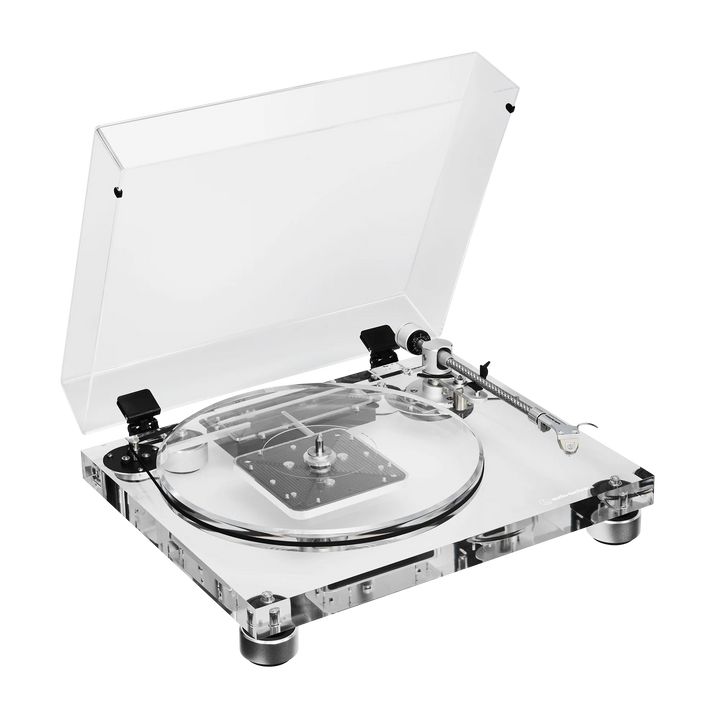

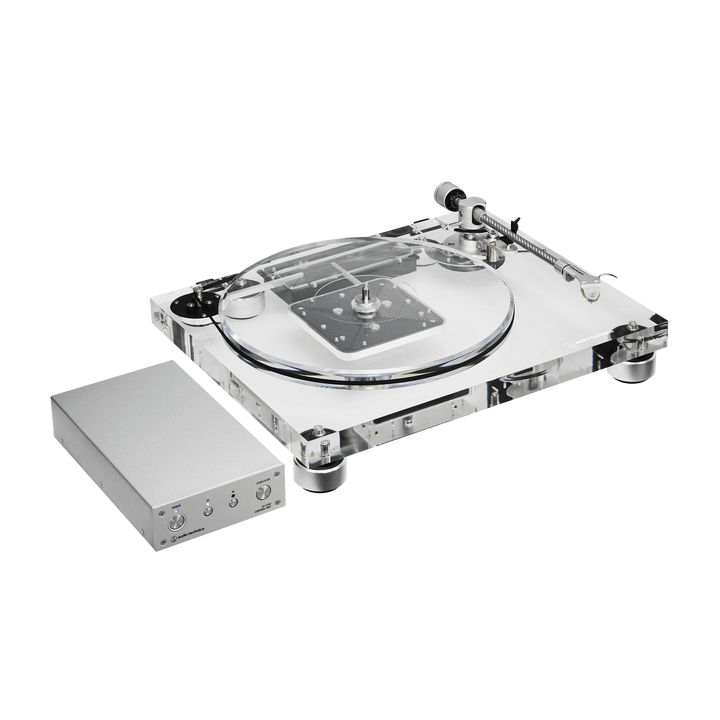

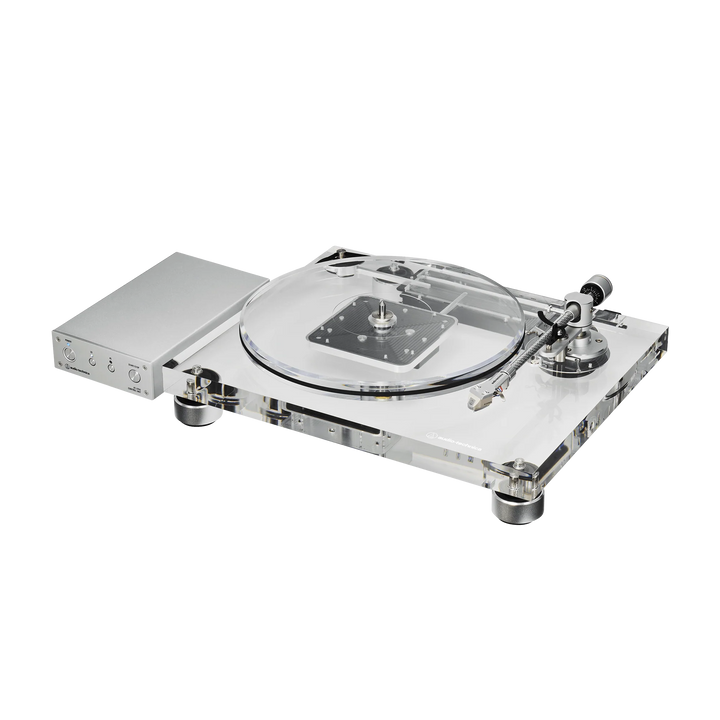

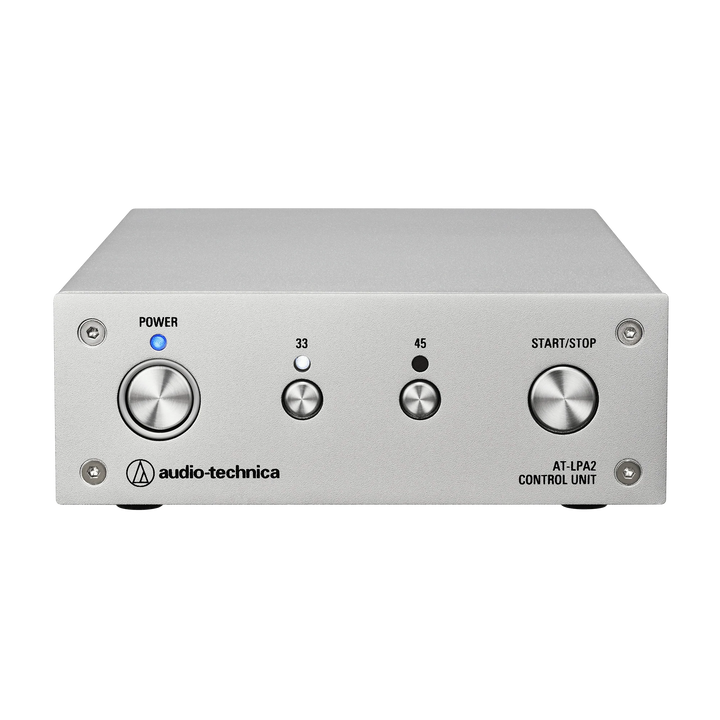

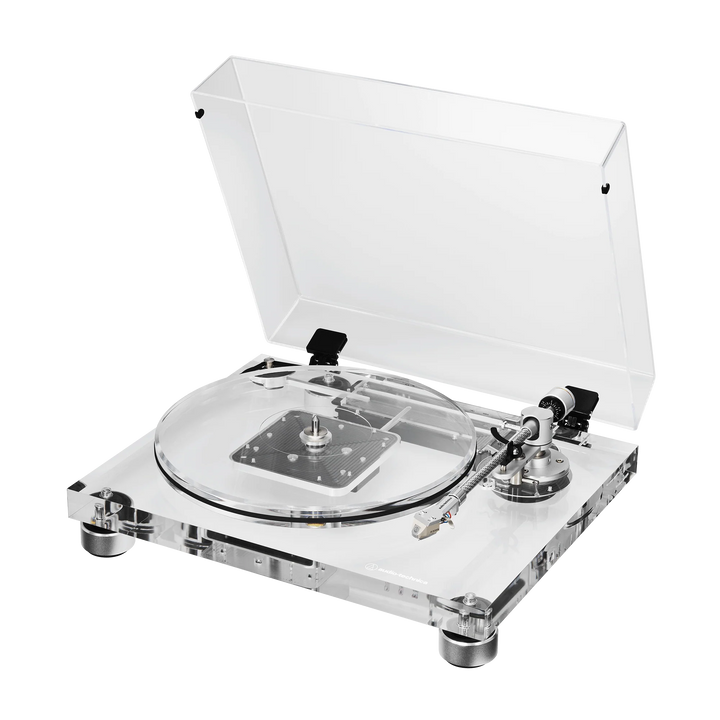

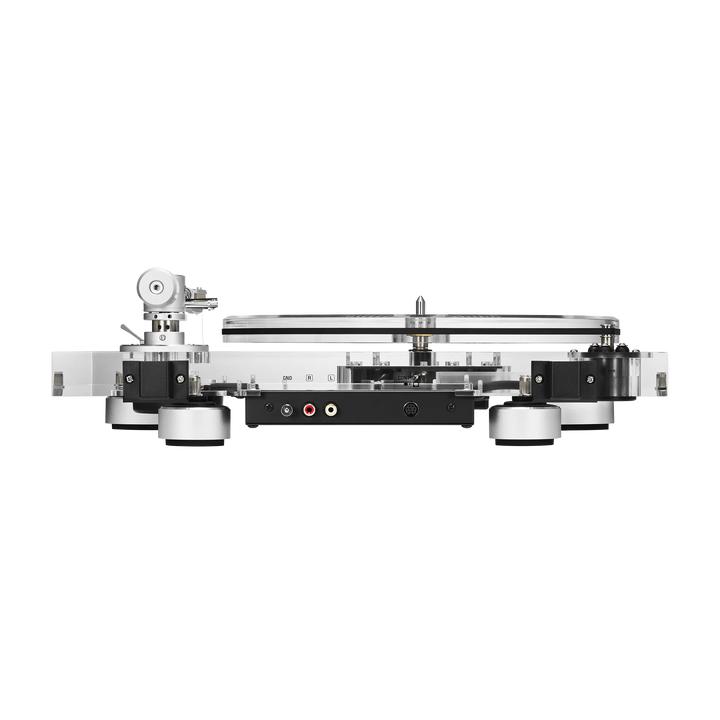

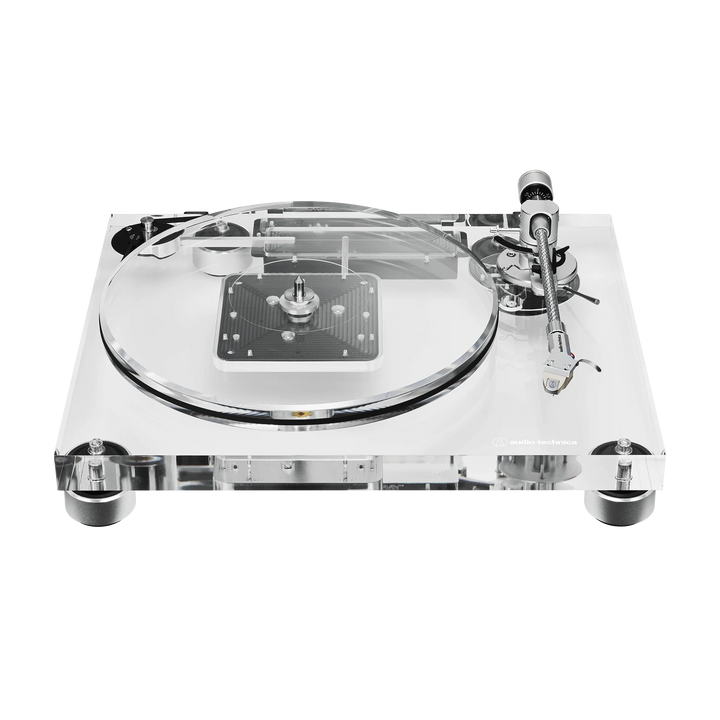

The Audio-Technica AT-LPA2 is a fully manual belt-drive turntable built from a 30 mm transparent acrylic chassis and a 20 mm acrylic platter, with the motor and power in a separate control unit. It plays 33-1/3 and 45 RPM records and ships with an AT-OC9XEN moving-coil cartridge. There is no built-in phono preamp.
Drive and Tonearm

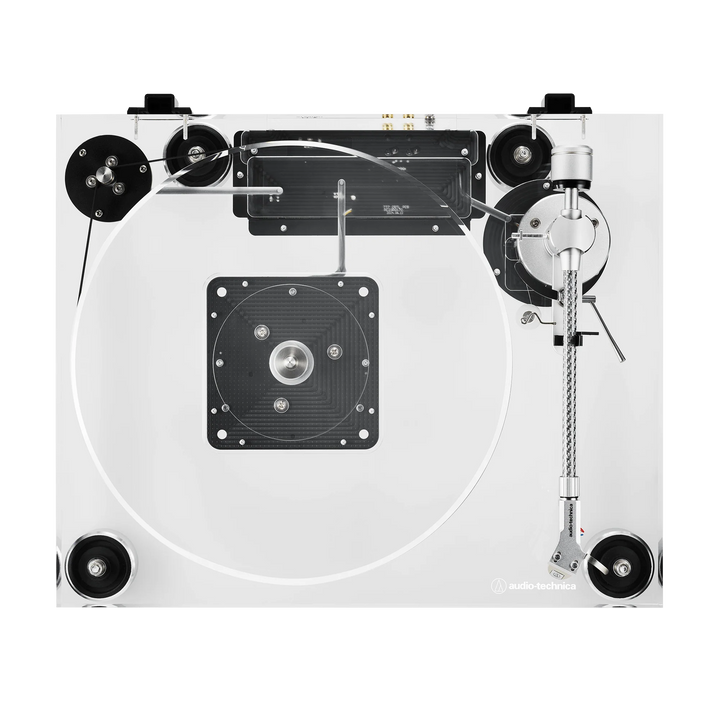

An optical sensor under the spindle monitors platter speed. The static-balanced straight carbon tonearm (effective length 223.6 mm / 8.8") uses string-and-weight anti-skate. The AT-OC9XEN is a moving-coil cartridge with a 0.3 x 0.7 mil nude elliptical stylus and 0.35 mV output; it needs an MC phono stage (load 100 ohms or greater when a head amplifier is used).
Specifications
- Drive: Belt drive, fully manual
- Motor: DC servo (in separate control unit)
- Speeds: 33-1/3 and 45 RPM
- Platter: 20 mm (0.79") thick acrylic
- Chassis: 30 mm transparent acrylic
- Wow and flutter: <0.12% WRMS (33 RPM)
- Signal-to-noise: >60 dB
- Cartridge: AT-OC9XEN moving coil, 0.3 x 0.7 mil nude elliptical; output 0.35 mV at 1 kHz, 5 cm/sec
- Cartridge weight: Approx. 7.6 g (0.27 oz)
- Tracking force: 1.8 to 2.2 g (standard 2.0 g)
- Tonearm: Static-balanced straight carbon; effective length 223.6 mm (8.8"); overhang 18.6 mm (0.73")
- Tracking force adjustment: 0 to 3.0 g
- Output: Phono-level MC (no built-in preamp)
- Power: 100 to 240 V, 50/60 Hz; 6 W
- Turntable dimensions (W x D x H): 420 x 340 x 135 mm (17" x 13" x 5.3")
- Control unit dimensions (W x D x H): 133 x 228 x 50 mm (5.2" x 9.0" x 2.0")
- Turntable weight: Approx. 8.4 kg (19 lb)
- Control unit weight: Approx. 1.1 kg (2.4 lb)
In the Box

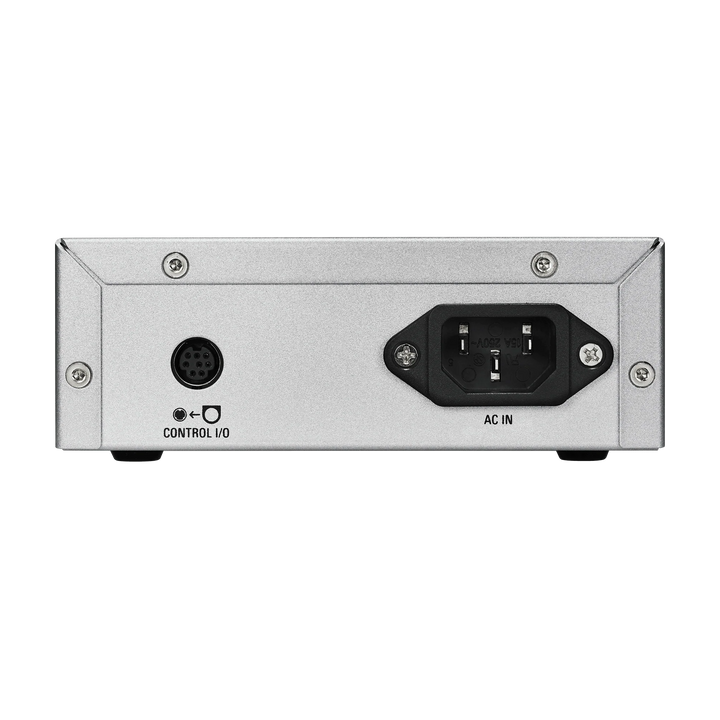

- Control unit
- Dust cover and hinges
- Acrylic platter
- Drive belt
- Counterweight (light)
- Counterweight (heavy)
- Anti-skate weight and auxiliary anti-skate weight
- Headshell with AT-OC9XEN MC cartridge
- 45 RPM adapter
- RCA audio cable, approx. 1.1 m (3.6')
- Power cable, approx. 1.8 m (5.9')
- Control cable, approx. 1.0 m (3.3')
- Ground cable, approx. 1.1 m (3.6')
- Hexagonal wrench
- Gloves
