Description

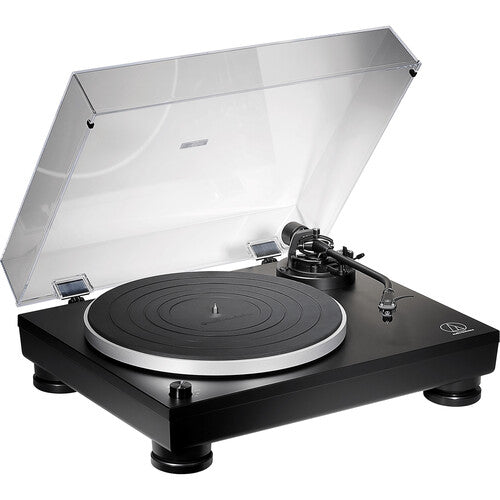

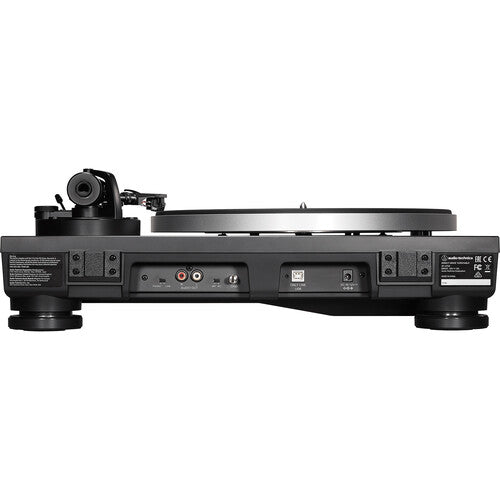

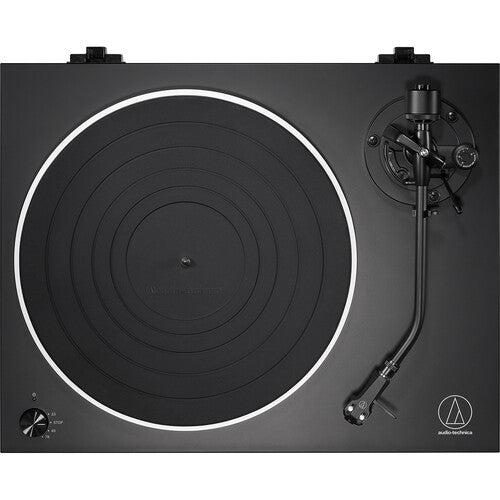

The Audio-Technica AT-LP5X is a fully manual direct-drive turntable that plays 33-1/3, 45, and 78 RPM records and connects through a switchable MM/MC phono preamp or USB. This finish is matte black.
Tonearm and Preamp
A J-shaped tonearm (effective length 247 mm / 9.72") uses a metallic gimbal suspension and ships with an AT-HS6 headshell and AT-VM95E cartridge (0.3 x 0.7 mil elliptical). The built-in preamp offers MM gain of 36 dB or MC gain of 56 dB, both RIAA equalized, plus PHONO bypass. USB records at 16-bit, 44.1 kHz or 48 kHz.
Specifications
- Drive: Direct drive, fully manual
- Motor: DC motor
- Speeds: 33-1/3, 45, and 78 RPM
- Platter: Die-cast aluminum
- Starting torque: >1.0 kgf.cm
- Braking: Electronic brake
- Wow and flutter: <0.2% WRMS (33 RPM) at 3 kHz
- Signal-to-noise: >50 dB
- Cartridge: AT-VM95E Dual Moving Magnet (0.3 x 0.7 mil elliptical), pre-mounted on AT-HS6 headshell
- Replacement stylus: AT-VMN95E
- Tonearm: Static-balance J-shaped; effective length 247 mm (9.72"); overhang 17 mm (0.67")
- Applicable cartridge weight: 15 to 20 g including headshell
- Anti-skate: 0 to 4 g
- Phono output: 4.0 mV nominal at 1 kHz, 5 cm/sec
- Line output: 250 mV nominal at 1 kHz, 5 cm/sec
- Phono preamp gain: MM 36 dB / MC 56 dB nominal, RIAA equalized (switchable)
- USB: 16-bit, 44.1 kHz or 48 kHz selectable; USB 2.0 compliant
- Power: 100 to 240 V AC, 50/60 Hz; 3 W
- Dimensions (W x D x H): 450.0 x 352.0 x 157.0 mm (17.72" x 13.86" x 6.18")
- Weight: 7.3 kg (16.1 lb)
In the Box
- AT-VM95E cartridge (pre-mounted)
- AT-HS6 headshell
- AC adapter
- Dual RCA stereo cable
- USB cable
- 45 RPM adapter
- Dust cover with hinges
- Rubber mat
- Platter
- Counterweight
