Description
The AT-DAC100 converts USB, coaxial, and optical digital sources to analog line output, supporting PCM up to 768 kHz/32-bit and DSD up to 22.4 MHz. Pair it with the AT-BHA100 headphone amplifier for ATH-ADX5000, ATH-MSR7b, and ATH-AW headphones.
Conversion

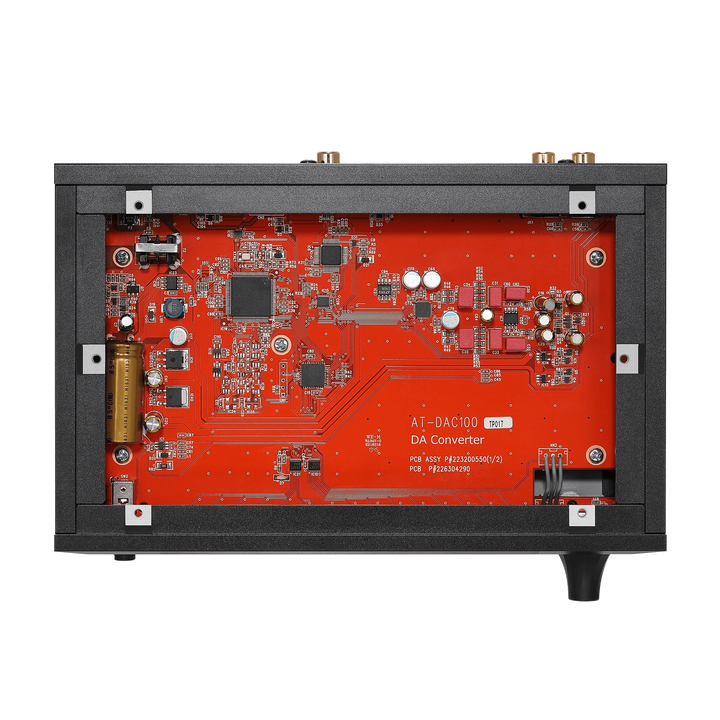

- Two-channel AKM AK4452VN DAC
- Texas Instruments LME49860 op-amp in the low-pass filter

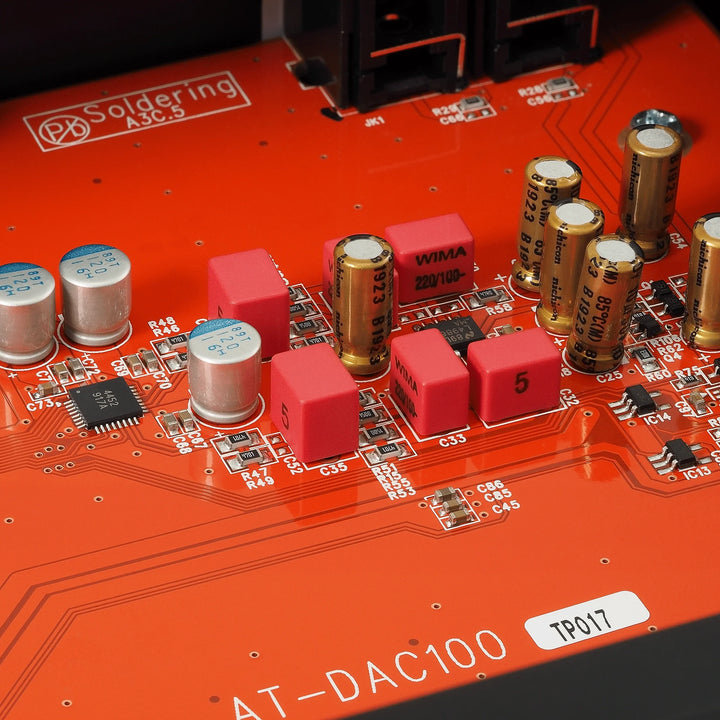

- Analog Devices power supply, Nichicon electrolytic and WIMA film capacitors
- Tuned to suppress high-frequency noise for use with vacuum-tube preamps and the AT-BHA100
Specifications

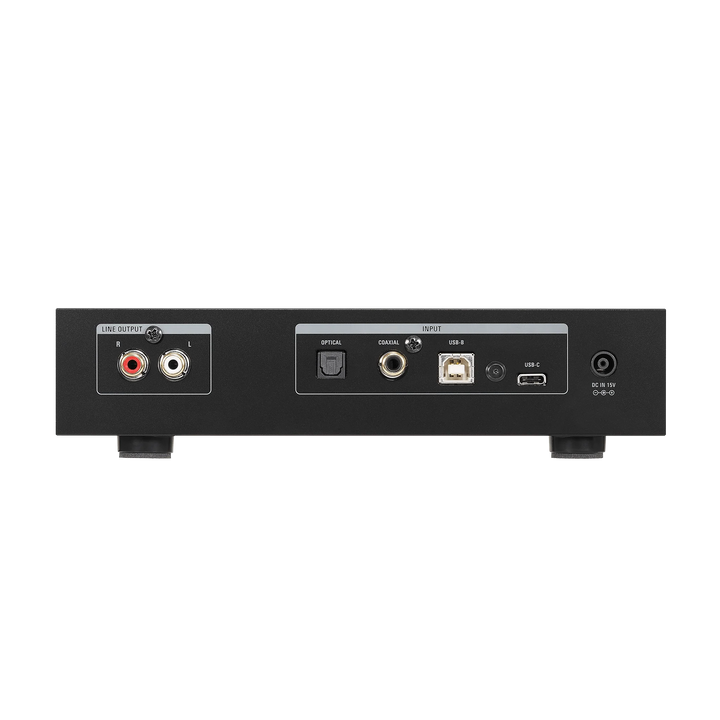

- USB inputs: USB-C and USB-B, PCM 44.1 to 768 kHz / 16 to 32-bit, DSD64 to DSD512
- Coaxial / optical inputs: 32 to 192 kHz, 16 to 24-bit
- Analog output: Stereo RCA
- Frequency response: 5 Hz to 90 kHz (0, -3 dB)
- THD: 0.005% or less (20 Hz to 20 kHz)
- Signal-to-noise ratio: 105 dB (A-weighted, 1 Vrms)
- Channel separation: 105 dB (20 Hz to 20 kHz)
- Power: 100-240 VAC via included 15 VDC / 2.4 A adapter, max 3 W
- Dimensions (W x D x H): 210 x 135 x 44 mm (8.3 x 5.3 x 1.7"), excluding protrusions
- Weight: Approx. 1.0 kg (2.2 lb)
In the Box
- AT-DAC100
- AC adapter (approx. 1.5 m / 4.9')
- Power cord
- Feet (6)
- Stands (2)
