Description

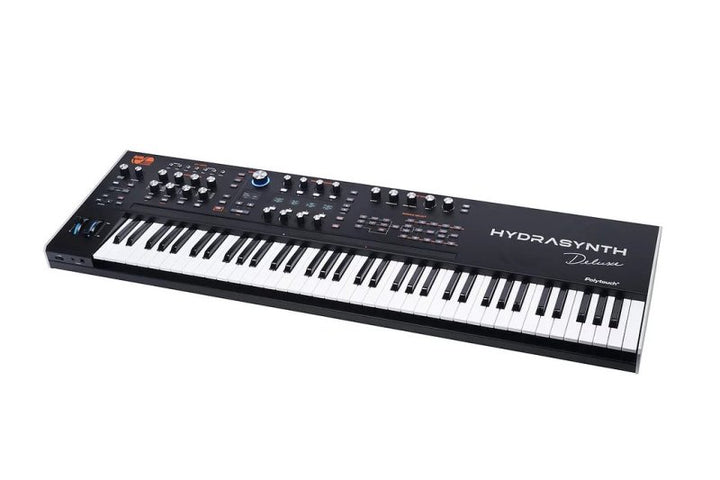

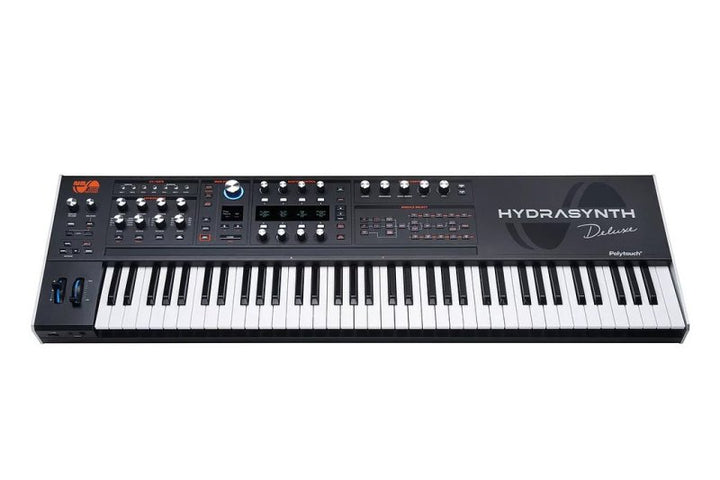

The ASM Hydrasynth Deluxe is the flagship of the Hydrasynth line, pairing a dual sound engine (16 voices total) with a 73-key semi-weighted Polytouch polyphonic aftertouch keybed. In Single mode the full 16 voices play one patch; in Multi mode two independent 8-voice engines can be split, layered, or assigned to separate MIDI channels for true bi-timbral operation, each with its own balanced stereo output.
Dual Sound Engine
Each of the two engines carries the full Hydrasynth architecture: three WaveScan oscillators per voice (219 waveforms), four Mutator waveshapers (8 modes), a five-source mixer, and two filters in series or parallel (16-model Filter 1 plus 12 dB/oct SEM-style Filter 2). Multi mode provides Key Split with adjustable crossover point, or Dual mode for layering two patches across the full keyboard, with a dedicated panel balance knob controlling relative levels.

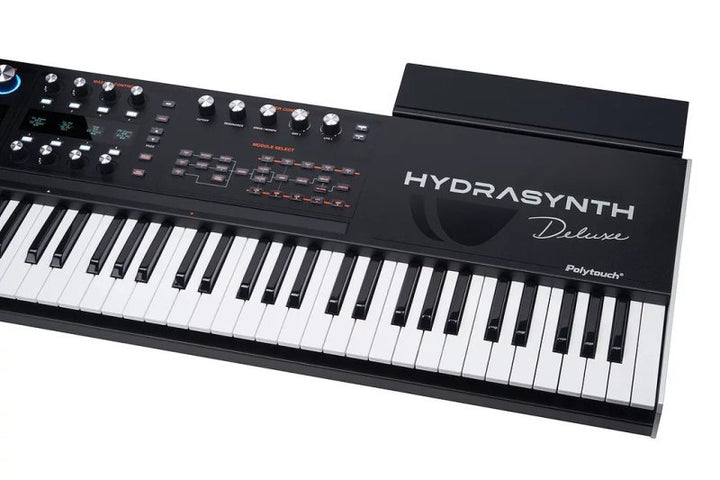

Polytouch Keybed and Expression

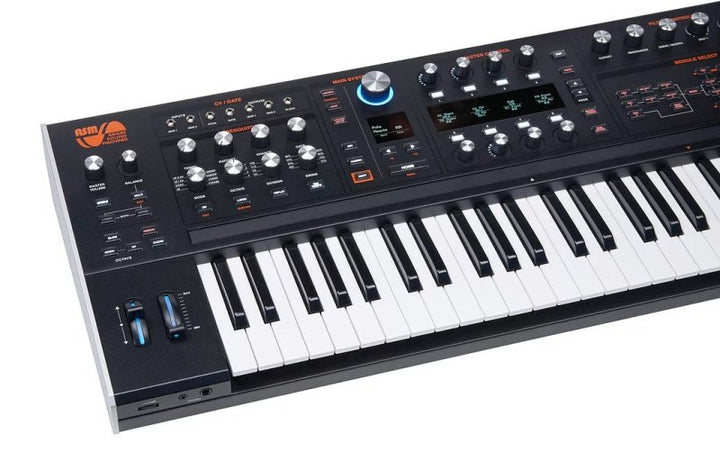

The 73-key semi-weighted Polytouch keybed offers polyphonic aftertouch, note-on/off velocity, and monophonic channel aftertouch, all independently routable. A 4-octave (67 cm) ribbon controller supports pitch-bend, Theremin, and CC modulation modes. Dedicated pitch and mod wheels complete the performance controls.

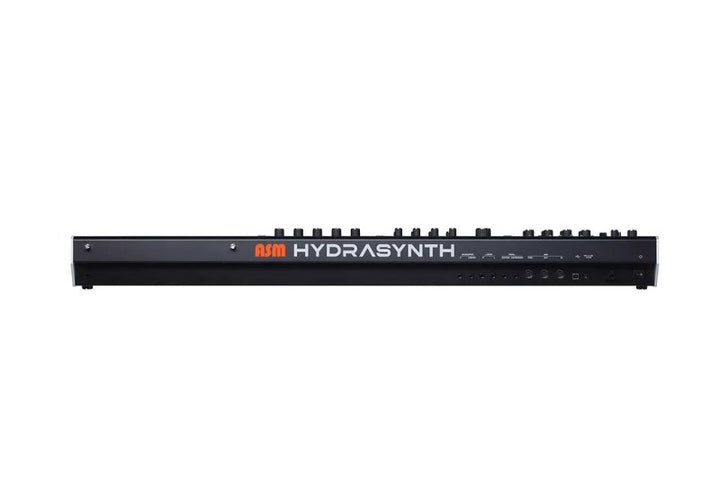

Connectivity
- Audio outputs: 2x 1/4" Main/Upper (L/Mono, R) + 2x 1/4" Lower (L, R)
- Headphones: 1/4" stereo
- MIDI: 5-pin DIN In / Out / Thru, USB MIDI (class compliant)

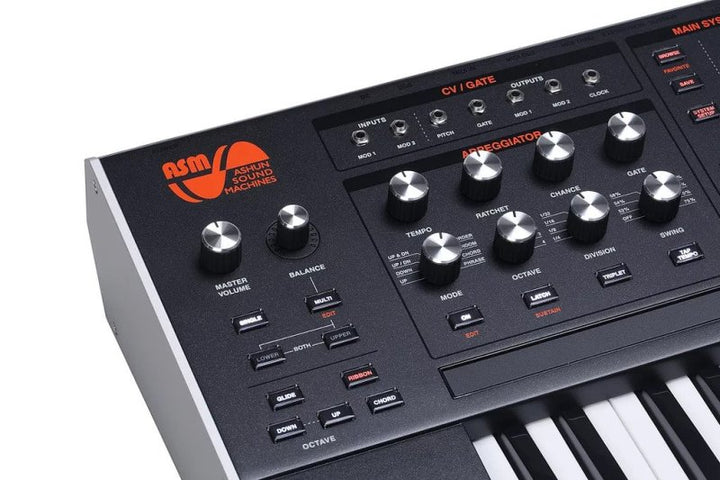

- CV / Gate: 1/8" Pitch CV In/Out, Gate In/Out, Mod In/Out, Clock Out
- Pedals: 1/4" expression, 1/4" sustain (polarity sensing)
Specifications
- Polyphony: 16 voices (Single) / 2 x 8 voices (Multi)
- Keys: 73 full-sized semi-weighted, polyphonic aftertouch
- Ribbon: 4-octave (67 cm), pitch-bend / Theremin / CC modes
- Oscillators: 3 per voice, 219 waveforms, plus 4 Mutator waveshapers per engine
- Filters: 16-model Filter 1 + 12 dB/oct Filter 2, series or parallel, per engine
- Envelopes / LFOs: 5 DAHDSR + 5 LFOs per voice
- Patches: 1,024 Single (8 banks x 128) + 640 Multi (5 banks x 128)
- Mod matrix: 32 slots per engine, 35 sources, 191 destinations
- Effects: Pre-FX, post-FX, delay, reverb per engine
- Power: 12V DC, 2A center positive (included)
- Construction: Steel top and bottom, aluminum side panels
- Dimensions (W x D x H): 1131 x 359 x 119 mm (44.5 x 14.1 x 4.7")
- Weight: 13.5 kg (29.8 lb)
In the Box
- ASM Hydrasynth Deluxe
- 12V DC 2A power supply
- USB cable
- Quick start guide
