Description

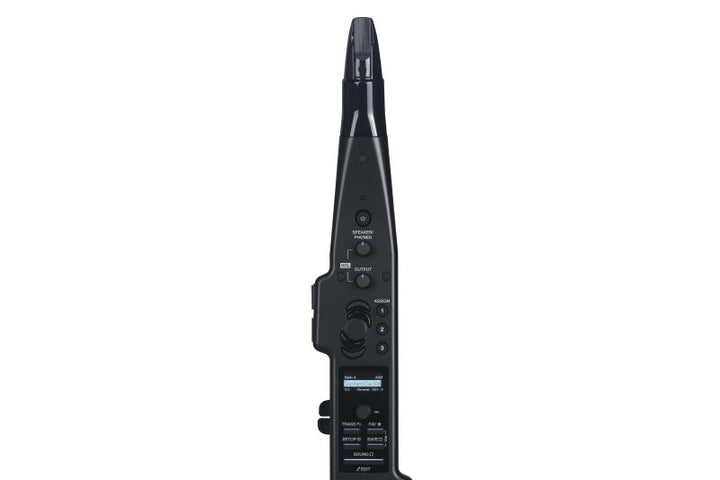

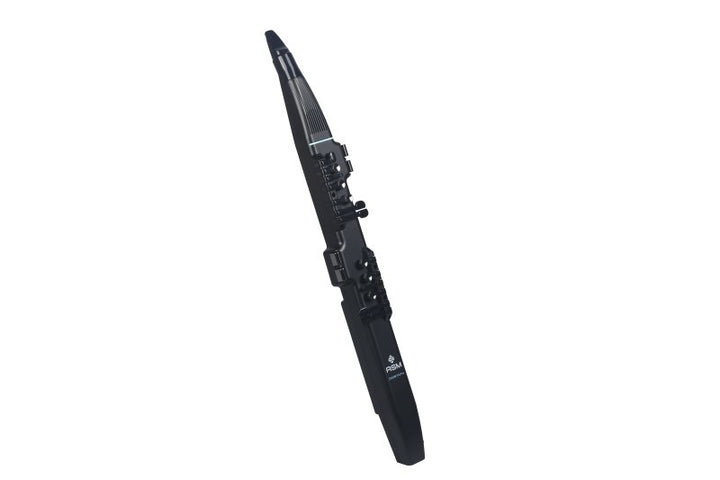

The ASM Diosynth is a hybrid wind synthesizer that combines true mechanical key action with an advanced synthesis and sample engine derived from the Hydrasynth. Designed for saxophone, clarinet, flute, and other wind players, it uses breath and bite sensors, a gyroscopic motion sensor, and multiple fingering modes to deliver an expressive playing experience rooted in acoustic technique.
Playing Interface

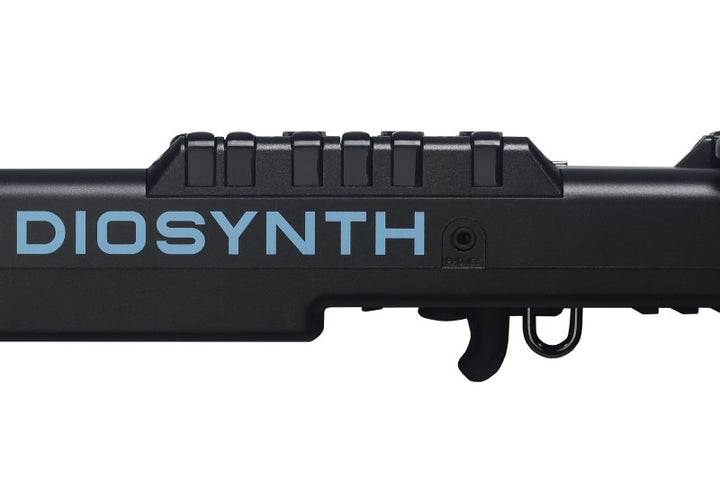

- Keys: True mechanical moving-key action with familiar woodwind fingering
- Fingering modes: Saxophone, Flute, Recorder, Trumpet
- Mouthpiece: Reed with bite sensor (assignable to pitch bend, vibrato, or modulation destinations) plus breath sensor
- Performance controls: X/Y joystick (4-way pitch bend and modulation), 2 pressure-sensitive thumb pads, 3 assignable buttons
- Gyroscope: Built-in positional sensor for motion-based modulation
- Octave range: 8+ octaves via 4 octave buttons
Sound Engine
- Synthesis: 2 WaveScan oscillators (219 waveforms), noise generator with morphing filter
- Filters: 16 Hydrasynth multimode filter models (including vowel filter)
- Samples: 128 acoustic instrument samples (flutes, saxophones, clarinets, double reeds, brass, strings, harmonicas, accordions)
- Growl effect: Ring modulator with 3rd oscillator
- Modulation: 32-slot matrix, 5 LFOs (with step sequencer), 5 envelopes (with looping)
- Parts: 2 (layer or split)
- Patches: 768 total (384 factory installed)
Connectivity
- Audio: 1/4" stereo line output, headphone output, built-in 2W speakers
- MIDI: 5-pin DIN In / Out, USB-C (MIDI and audio), Bluetooth MIDI In / Out
- Bluetooth audio: Input (for backing tracks)
- Power: USB-C or 2x 18650 Li-Ion rechargeable batteries (not included)
Specifications
- Polyphony: Monophonic
- Transpose: Any key, globally or per patch
- Effects: Reverb, delay, chorus, flanger, phaser, overdrive, amp simulation, compressor, EQ
- Display: OLED
- Software: Free Mac/PC patch editor and patch manager; iOS/Android set list manager
- Dimensions (L x W x H): 697.5 x 83 x 67.3 mm (27.5 x 3.3 x 2.7")
- Weight: 0.9 kg (2 lb)

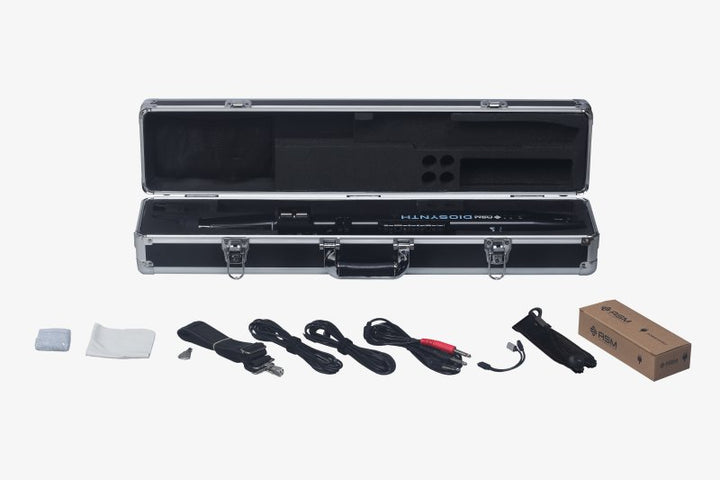

In the Box
- ASM Diosynth

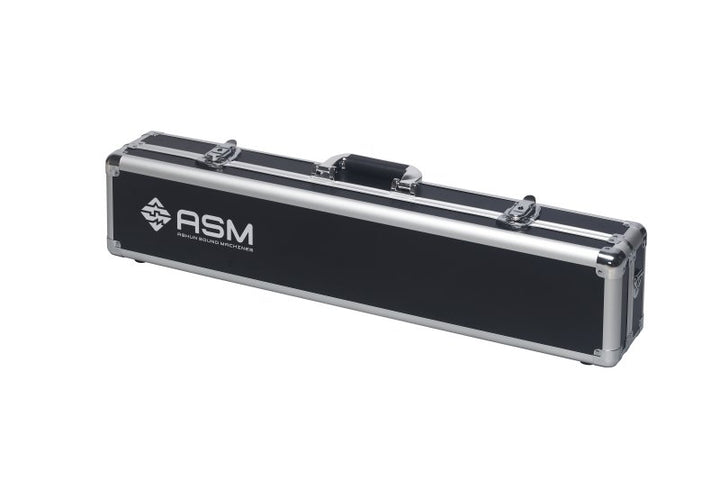

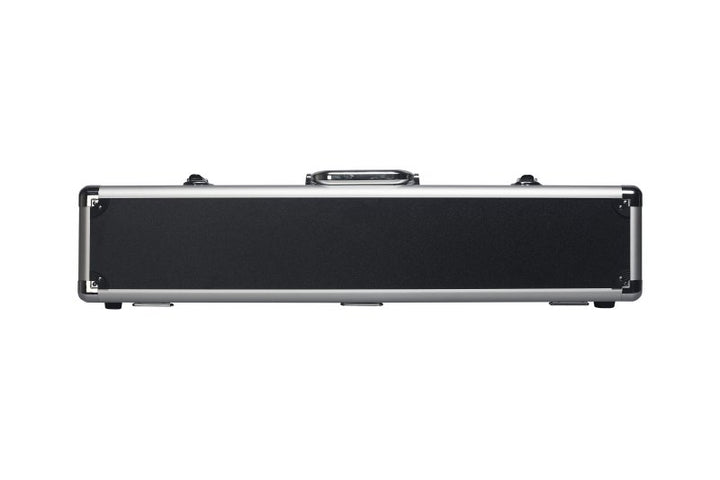

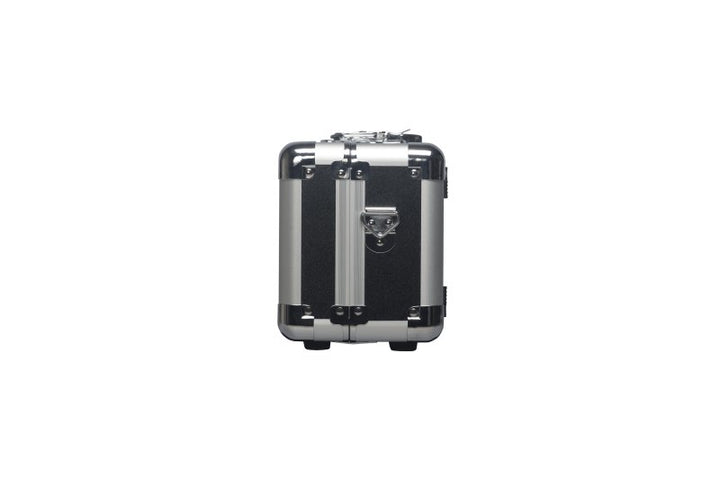

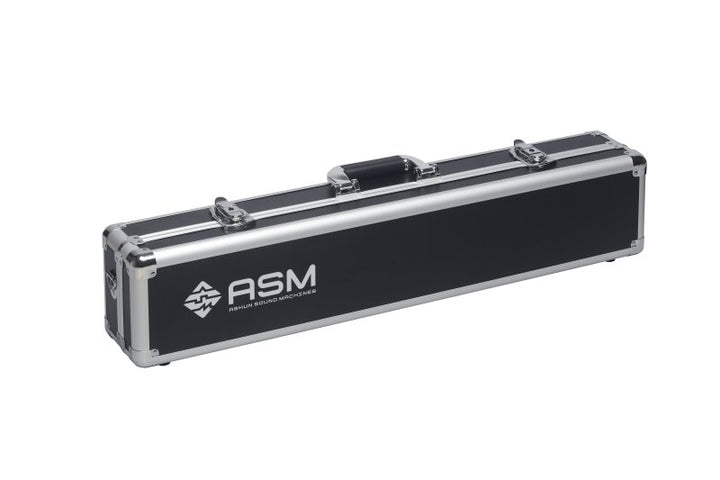

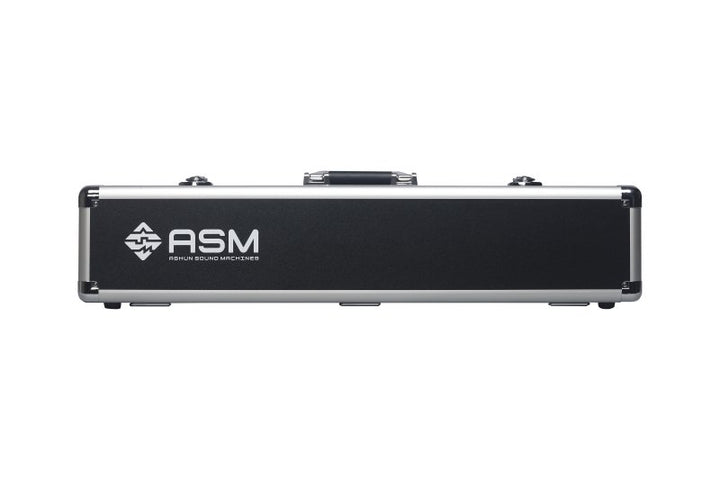

- Hard-shell travel case
- Folding stand
- 2 mouthpieces
- Neck strap
- Power supply with universal adapters
- USB-A to USB-C cable
- USB-C to USB-C cable
- USB power Y cable
- Spit guard
- Cleaning cloth
