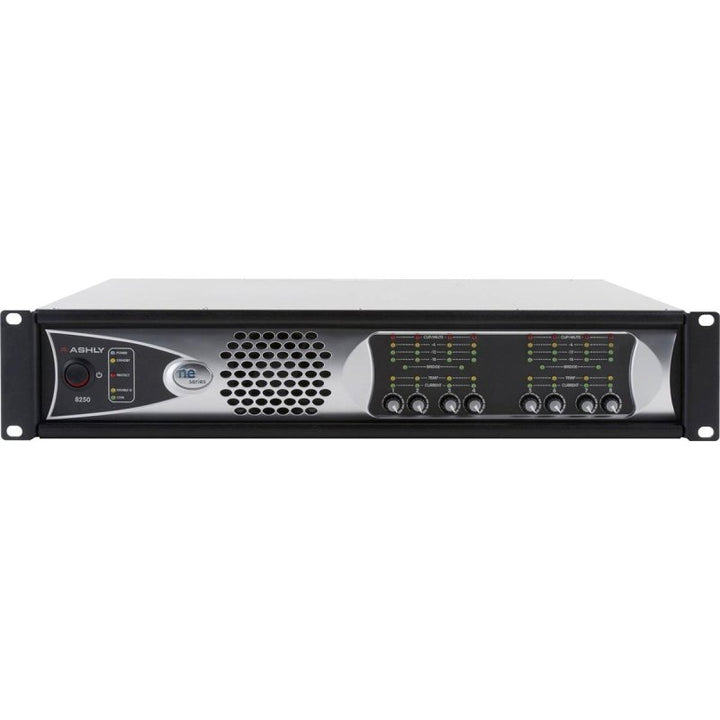

NE8250.70PEC

NE Series Multi-Channel, Network-Enabled Power Amplifiers

Our multi-channel ne (Networked-Enabled) Series Amplifiers are uniquely designed around an energy efficient Class-D platform with a switching power supply.

Connecting and controlling an amplifier for networked systems has now been simplified with ne Amplifiers. This line offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea ne Software. No special outboard control units are needed.

Choose either the ne4250 (4-channel) or ne8250(8-channel) packages rated at 250W per channel, with separate Hi-Z and Low-Z models. ne Series Amplifiers are offered in two separate platforms-the standard network amplifier or a network amplifier with an on-board Protea DSP Processor. Each can be customized for any installation by adding your choice of AES3 inputs, mic pre inputs, CobraNet or Dante modules.

ne8250.70 with DSP: Architect & Engineering Specs

The eight-channel power amplifier shall deliver a minimum power of 250 Watts RMS per channel into 70V loads with all channels operating. When switched into bridged-mono mode, channels 1+2 or 3+4 or 5+6 or 7+8 of the amplifier shall deliver at least 500 Watts RMS into a 140V load.

The power amplifier shall include Euroblock input connectors and Euroblock output connectors. It shall have balanced analog inputs. The power amplifier shall have remote standby for power up, DC remote level control and contact closure preset recall. It shall have Ethernet control and monitoring of power functions, level, mute, polarity, temperature, current, and amplifier fault conditions.
