Description

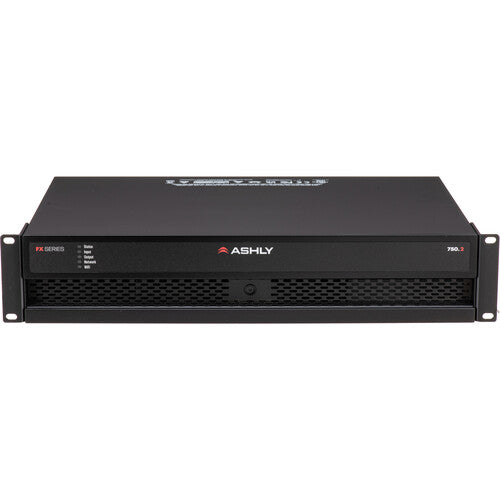

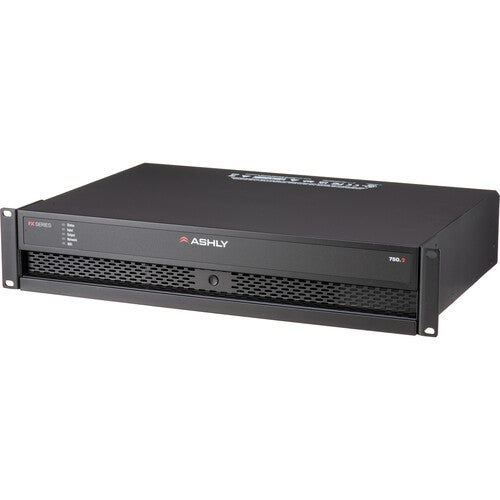

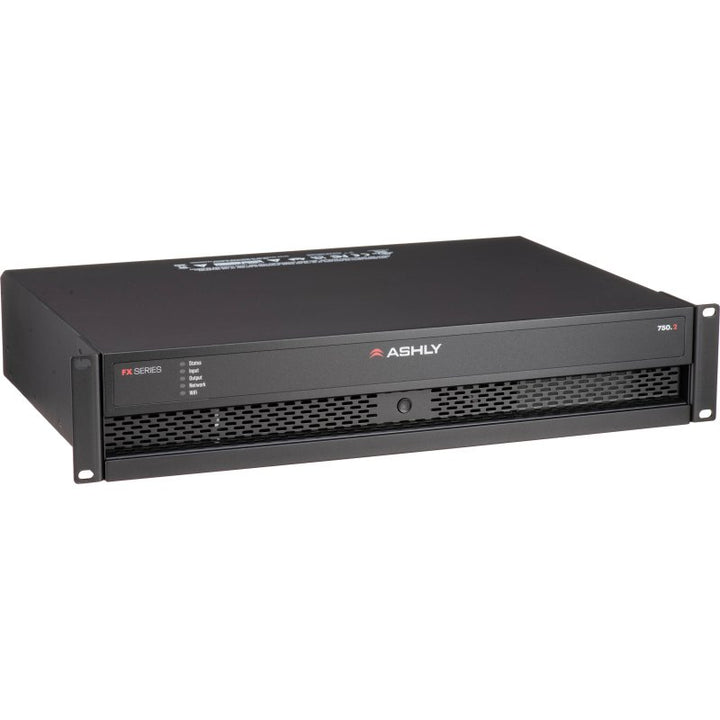

The Ashly FX-750.2 is a two-channel installation amplifier with built-in DSP in a 2U rack chassis. It puts out 750W per channel at 2 or 4 ohms, or 1500W with the two channels bridged.
Setup runs in a web browser on a laptop, tablet or phone. The amplifier serves its own control page over Ethernet or its built-in WiFi hotspot, so there is no software to install and no network router is needed. Over Ethernet you can also give it a custom IP address for a larger wired network.
The onboard DSP does the job of a separate speaker processor. It handles inputs, zones, outputs and speaker presets, with EQ, crossover, delay, compression, limiting and polarity.
Outputs
- Two channels for 2, 4 or 8 ohm speakers, or one bridged channel for 70V or 100V lines, set in software
- 750W per channel at 2 or 4 ohms
- 400W per channel at 8 ohms
- 320W per channel at 25V
- 1500W bridged at 4 or 8 ohms
- 1200W bridged at 70V, 1500W bridged at 100V

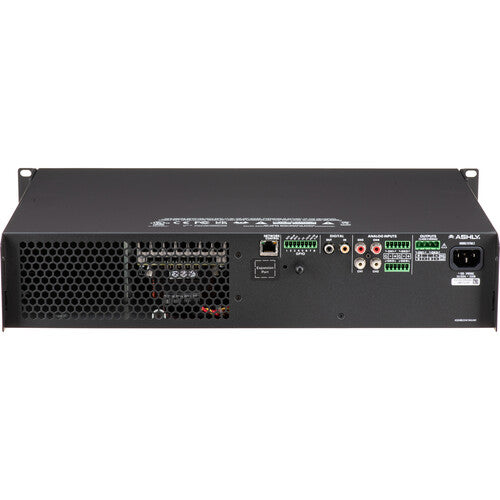

- Euroblock speaker outputs
Inputs and Control
- Four analog inputs on balanced Euroblock connectors, with unbalanced RCA jacks wired in parallel
- Line-level inputs handle up to +24dBu without clipping
- Stereo S/PDIF digital input and output on RCA
- 100/1000BASE-T Ethernet and a built-in WiFi hotspot, with a WiFi client mode for joining a local network
- Password protection for the control page
- GPIO Euroblock port for remote volume, standby, mute and 12V trigger
- Works with Ashly WR-1 and WR-1.1 volume remotes and FXC wall remotes (sold separately)
DSP
- Inputs: sensitivity, gain trim, 100Hz high-pass filter and 5-band EQ
- Zones: source routing, level, compressor, and priority or ducking inputs for paging
- Outputs: delay up to 100ms and 10-band parametric EQ
- Speaker presets: crossover, speaker EQ, FIR filters up to 512 taps, driver alignment delay up to 10ms, polarity, and clip, peak and RMS limiters
- Built-in sine wave and noise generator
General
- Class D output stage
- Signal-to-noise ratio above 108 dB (A-weighted)
- THD+N under 0.05%
- Frequency response 20 Hz to 20 kHz
- Protection against short circuit, output DC, undervoltage, overheating and overload
- Universal 100-240V, 50/60Hz power supply with power factor correction
- Standby draw under 0.5W
- Front panel power switch
- 88 x 440 x 321 mm (3.5 x 17.3 x 12.6 in)
- 5.9 kg (13 lbs)
In the Box
- FX-750.2 amplifier
- Mains power cable
- Two rack ears
- Euroblock connectors for the inputs, GPIO port and speaker outputs
- Four adhesive rubber feet
- Document pack
