FX-60.2

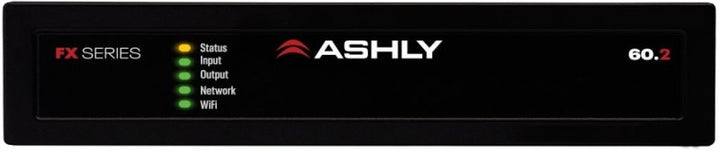

The Ashly FX-60.2 FX Series 60.2 120W 1/2U Compact Class D Power Amplifier is a 2-channel configuration of Class D design housed in a 1/2 RU metal chassis with a metal front.

The FX Series' pedigree is the culmination of compact Class D design so successfully implemented in the FA Series and Ashly's years of providing easy-to-use software. Along with a newly incorporated DSP engine & software UI, FX takes amplification to new levels. FX is networkable via Ethernet for wired LAN connection, or directly via its built-in WiFi hotspot. No network router needed. FX allows system configurations that don't require additional equipment, such as stand-alone DSP or speaker system processors. All of that is in one box. That saves space, money & time.

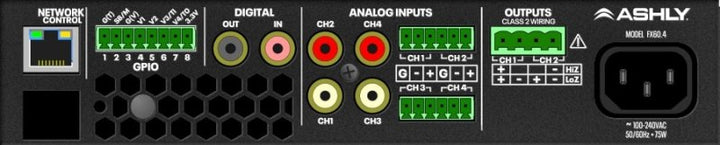

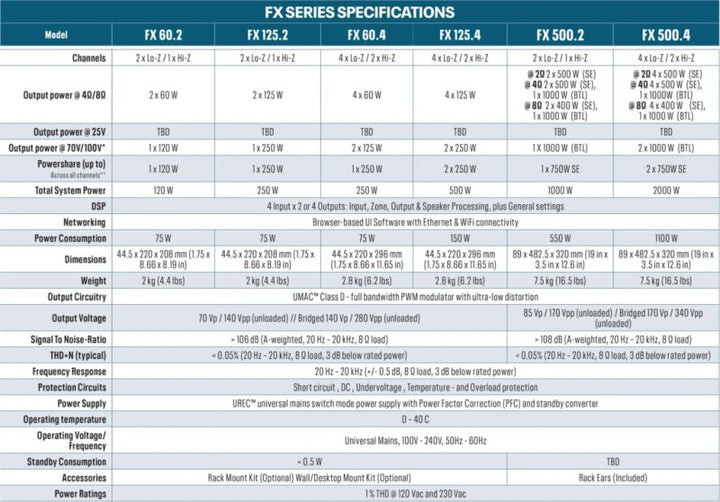

With 6 models to choose from starting at 2 x 60W in a ½ RU to 4 x 500W in 2 RU, there's an FX that will fit just about any project. Each offers a healthy compliment of IO (include Digital SPDIF In & Out) and programmable integration ports for remote Volume control, GP triggers and more.

The amplfier is 2 amp channels each capable of driving up to 60W @ 4 or 8 Ohms per channel and may be switched to operate at 70V or 100V with 120W by bridging pairs. The 2 channels is capable of power-sharing, driving up to 125W total across two channels or with a single output driven. The amplifier shall have a universal power supply capable of operating from 100-240VAC 50/60Hz and has a power consumption @ 1/8 continuous rated output of 75W @ 4 Ohms. The amplfier housing is 8.7" W x 1.7" H x 10.4" D with a net weight of 4.4 lbs.
