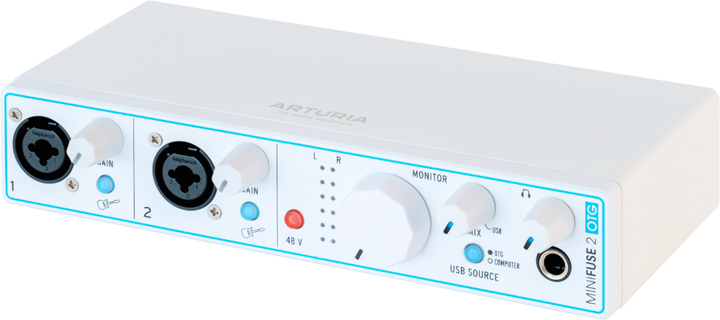

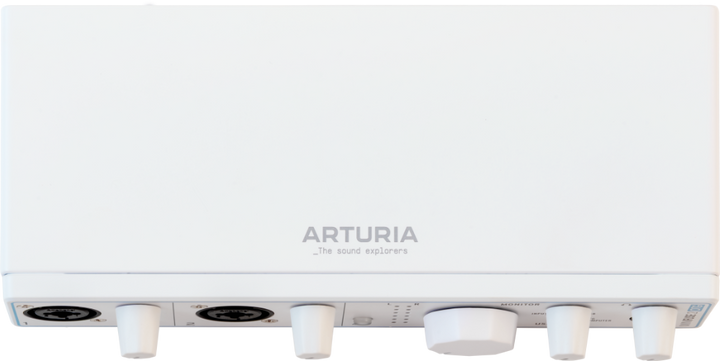

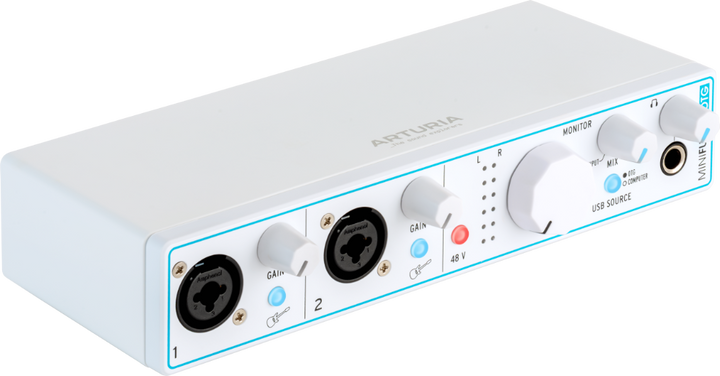

MINIFUSE 2 OTG Portable USB-C Audio Interface

Ideal for content creators, musicians, and educators looking to take powerful audio connectivity with them anywhere, the Arturia MiniFuse 2 OTG is a portable 2-channel USB-C audio interface with a highly compact and lightweight design. With two USB-C ports, including one dedicated to OTG mobile device connections, you can work from your smart devices and take the studio with you anywhere.

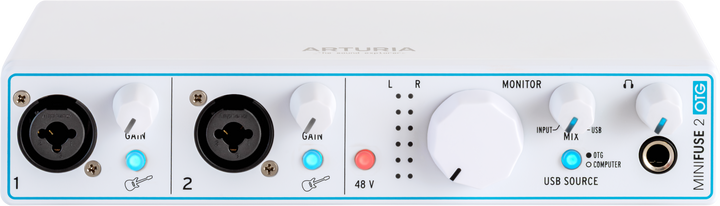

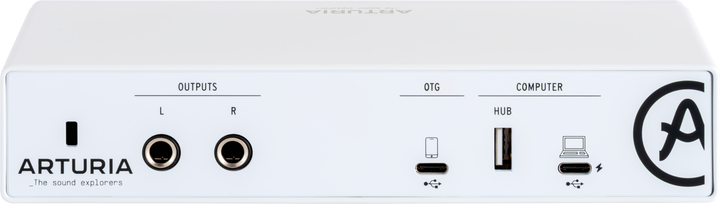

The MiniFuse 2 OTG sports two XLR-1/4" combo mic / line / Hi-Z inputs for handling whatever sources you want to throw at it and two 1/4" TRS outputs in the rear for analog connections to speakers and other audio devices. The unit also includes a front-panel headphone output with a dedicated volume control and a USB-A hub port for MIDI, device connections, and charging. You can activate 48V phantom power for active microphones, manually switch on Hi-Z mode on either input, and use the USB Source control to switch between analog input, USB, or a blend of both, as well as select whether to use the OTG or computer USB-C port for host connection duties. The front panel features an LED meter and a backlit gain knob. Loopback functionality makes it easy to use computer audio during a stream or while you're recording. This audio interface is fully USB bus powered and can be powered by a power bank for field-recording applications. The MiniFuse 2 OTG includes a USB-C cable, a USB-C to USB-A cable, and a suite of powerful audio software.

Capture, Create, Stream

Route audio between multiple devices and external hardware with ease. Whether you're streaming, producing, or recording, MiniFuse 2 OTG delivers high-quality sound and a mobile-friendly design.

Do More with USB

Record or playback with a mobile device, stream and record with dual USB, record instruments or mics, share audio between two computers, mix with headphones, and monitor speaker outputs.

Ready for Mobile

Compatible with mobile and tablet devices (see arturia.com for detailed compatibility). OTG USB is compatible with 44.1 and 48 kHz sampling rates.

The Fuse Ecosystem

Exclusive tips and tutorials, a dedicated online portal, and complimentary intros to world-class mixing services help you get more from your setup.

Included Software

• MiniFuse Control Center, control utility companion
• Analog Lab Intro

• Chorus JUN-6

• Delay TAPE 201

• Pre 1973

• Rev PLATE 140

• Ableton Live Lite

• Steinberg Cubase LE and Cubasis LE

• Izotope VEA (AI Voice Enhancement Assistant)

• Hindenburg PRO (1-year subscription)

• Auto-Tune Unlimited (3-month subscription)

• Splice Creator Plan (3-month subscription)

Items Included

• Arturia MiniFuse 2 OTG 2x2 USB-C Audio Interface
• USB-C Cable
• USB-C to USB-A Cable
• Limited 2-Year Manufacturer Warranty

Specifications

GeneralDisplayNoChannels of I/O2 Inputs / 3 OutputsBuilt-In DSPNoMaximum Sampling Rate192 kHz / 24-BitNumber of Microphone Inputs2Built-In MicrophoneNoInput Level AdjustmentKnob

General

No

2 Inputs / 3 Outputs

No

192 kHz / 24-Bit

2

No

Knob

Signal ProcessingPadNoHigh-Pass FilterNoSolo/MuteNo

Signal Processing

No

No

No

ConnectivityAnalog Audio I/O2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input2x 1/4" TRS Line Output1x 1/4" TRS Headphone Output (Front Panel)Phantom Power48 VDigital Audio I/ONoHost Connection1x USB-C (Class-/USB OTG-Compliant)Host Connection ProtocolUSB 2.0USB (Non-Host)1x USB-A (Device Charging, Device Connection)Sync I/ONoNetwork I/ONoMIDI I/O1x DIN 5-Pin Input1x DIN 5-Pin OutputExpansion SlotsNoWirelessNo

Connectivity

2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input2x 1/4" TRS Line Output1x 1/4" TRS Headphone Output (Front Panel)

48 V

No

1x USB-C (Class-/USB OTG-Compliant)

USB 2.0

1x USB-A (Device Charging, Device Connection)

No

No

1x DIN 5-Pin Input1x DIN 5-Pin Output

No

No

PerformanceFrequency Response20 Hz to 20 kHzMaximum Input LevelXLR Mic Inputs: +9 dBu1/4" Line Inputs: +22 dBu1/4" Hi-Z Inputs: +11.5 dBuMaximum Output Level1/4" Line Outputs: +12 dBu1/4" Headphone Outputs: +11.4 dBuHeadphone Output Power137 mW into 33 OhmsImpedanceXLR Mic Inputs: 2.5 Kilohms1/4" Line Inputs: 16 Kilohms1/4" Hi-Z Inputs: 1.1 MegohmsDynamic RangeInputs: 110 dBA1/4" Headphone Outputs: 104 dBA1/4" Speaker Outputs: 107.5 dBATHD+NMic/Line Inputs: -100 dBAHi-Z Inputs: -91 dBA

Performance

20 Hz to 20 kHz

XLR Mic Inputs: +9 dBu1/4" Line Inputs: +22 dBu1/4" Hi-Z Inputs: +11.5 dBu

1/4" Line Outputs: +12 dBu1/4" Headphone Outputs: +11.4 dBu

137 mW into 33 Ohms

XLR Mic Inputs: 2.5 Kilohms1/4" Line Inputs: 16 Kilohms1/4" Hi-Z Inputs: 1.1 Megohms

Inputs: 110 dBA1/4" Headphone Outputs: 104 dBA1/4" Speaker Outputs: 107.5 dBA

Mic/Line Inputs: -100 dBAHi-Z Inputs: -91 dBA

Digital AudioSample RatesUp to 192 kHzSample Rate ConversionNoBit Depths24-BitSync SourcesNo

Digital Audio

Up to 192 kHz

No

24-Bit

No

Audio Storage & PlaybackMedia/Memory Card SlotNo

Audio Storage & Playback

No

CompatibilityOS CompatibilityComputer:Windows/macOSMobile: Android/iOSRequired HardwareUSB Cable

Compatibility

Computer:Windows/macOSMobile: Android/iOS

USB Cable

PowerPower RequirementsUSB Bus Power

Power

USB Bus Power

Packaging InfoPackage Weight1.345 lbBox Dimensions (LxWxH)8.5 x 5.3 x 2"

Packaging Info

1.345 lb

8.5 x 5.3 x 2"
